Cisco ASR 1004 Overview And Installation

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. Use the statement number provided at the end of each warning
to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
Warning
Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information
for Cisco ASR 1000 Series Aggregation Services Routers publication. This document provides important
safety information you should know before working with the system. Statement 200
Warning
You have already unpacked your chassis and read all the site requirements for your new equipment.
Proceed with the installation.
Note
Cisco ASR 1004 Router Slot Numbering
The Cisco ASR 1004 Router contains two Cisco ASR 1000 Series SPA Interface Processors (SIPs) and
supports four subslots for the installation of SPAs.
The following image shows the Cisco ASR 1004 Router with modules and filler plates installed.

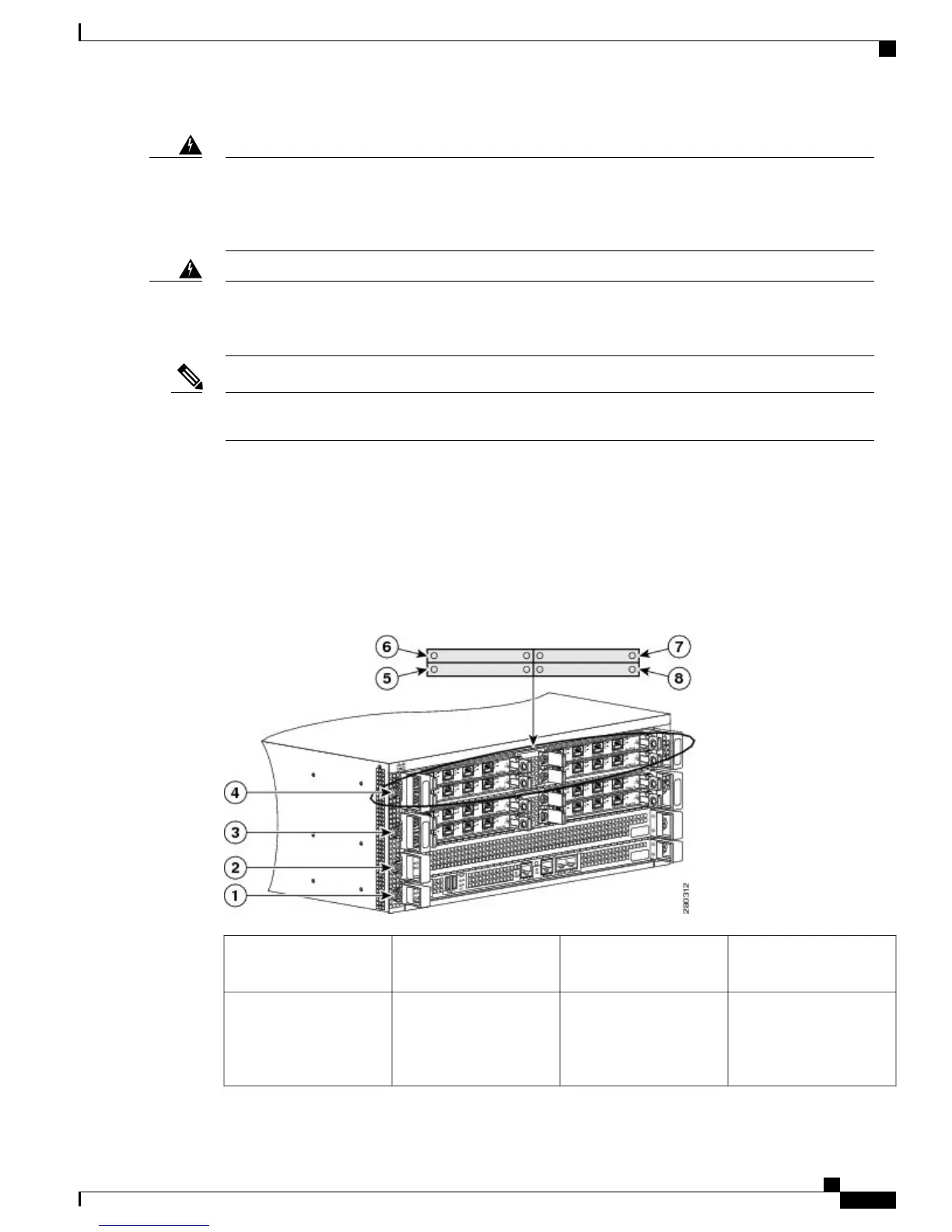

Figure 4: Cisco ASR 1004 Router — Front and Side View
SPA subslot 25Slot R0 with ASR 1000
Series RP1
1
SPA subslot 06Slot F0 with Cisco
ASR1000-ESP10, Cisco
ASR1000-ESP20, or
Cisco ASR1000-ESP40
2
Cisco ASR 1000 Series Router Hardware Installation Guide
5
Cisco ASR 1004 Router Overview and Installation
Rear View

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
