Cisco ASR 1004 Overview And Installation

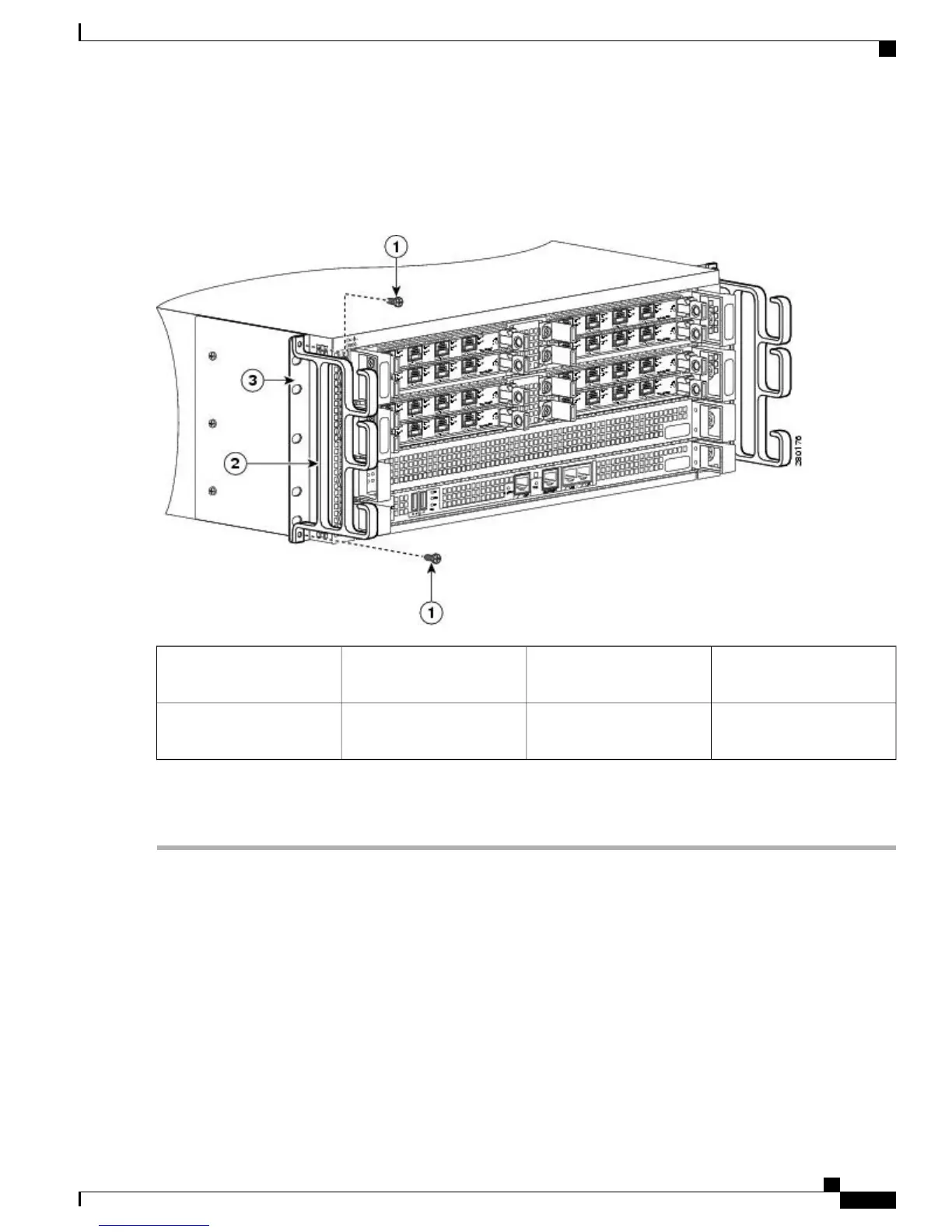

The following image shows where to attach the cable-management brackets to the Cisco ASR 1004 Router in a rack.
Figure 14: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket
Chassis rack-mount bracket3Cable-management bracket
top and bottom screw
1
——
Cable-management bracket
and U feature device
2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Figure 14: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket, on page 25).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis in a rack.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1004 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
connecting the optical fiber cables for the PA-POS-OC3 port adapter, see PA-POS-OC3 Port Adapter
Installation and Configuration at the following location:
Cisco ASR 1000 Series Router Hardware Installation Guide
25
Cisco ASR 1004 Router Overview and Installation
Connecting the Shared Port Adapter Cables
