Cisco ASR 9000 Series Service Configuration Guide

Modular QoS Deployment Scenarios on Cisco ASR 9000 Series Routers
L2VPN QoS
QC-169
Cisco ASR 9000 Series Aggregation Services Router Modular Quality of Service Configuration Guide
OL-23108-02

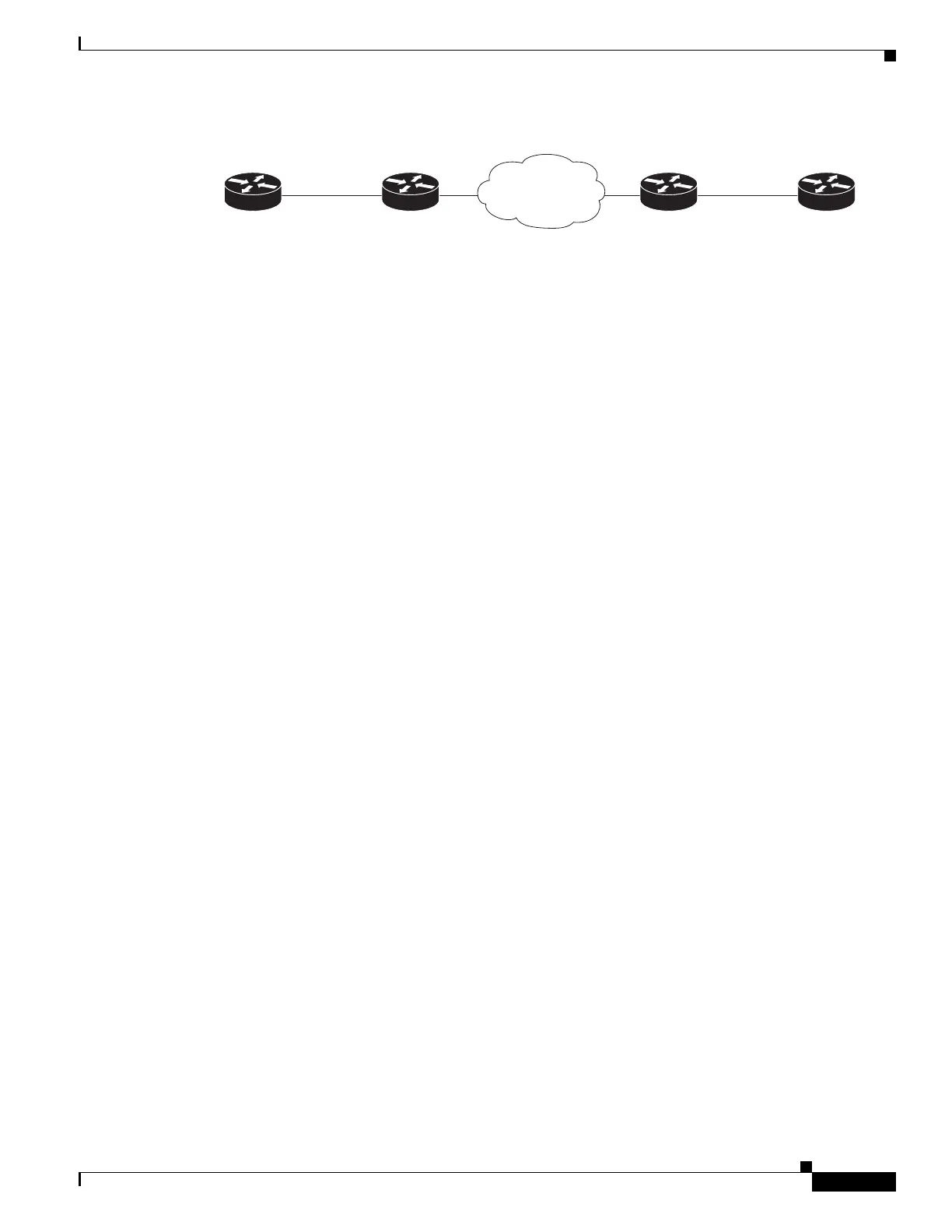

Figure 1 Frame Relay Over MPLS
CE1
interface pos0/2/0/0.26
pvc 26
ipv4 add 10.0.0.1 255.0.0.0
PE1
interface pos0/2/0/0.26 l2transport
pvc 26
l2vpn
xconnect group frfr
p2p p1
interface pos0/2/0/0.26
neighbor y.y.y.y pw-id 1001
!QoS Policy
class-map matchdlci
match frame-relay dlci 26
policy-map setde1
class matchdlci
set fr-de 1
interface pos0/2/0/0
service-policy input setde1
PE2
interface pos0/3/0/0.26 l2transport
pvc 26
l2vpn
xconnect group frfr
p2p p1
interface pos0/3/0/0.26
neighbor x.x.x.x pw-id 1001
CE2
interface pos0/3/0/0.26
pvc 26
ipv4 add 10.0.0.2 255.0.0.0
CE1 PE1 PE2 CE2
Frame RelayFrame Relay
208568
MPLS cloud
