QoS on Multicast VPN
ASR 9000 Ethernet Line Cards
The support for QoS services on a multicast VPN (mVPN) enabled network involves the marking of
DSCP or precedence bits on the tunnel IP header. This feature enables MPLS carriers to offer QoS on
mVPN services. The mVPN network uses generic routing encapsulation (GRE) tunnels between
provider edge (PE) devices. Multicast packets are placed in GRE tunnels for transmission across the
MPLS core network.

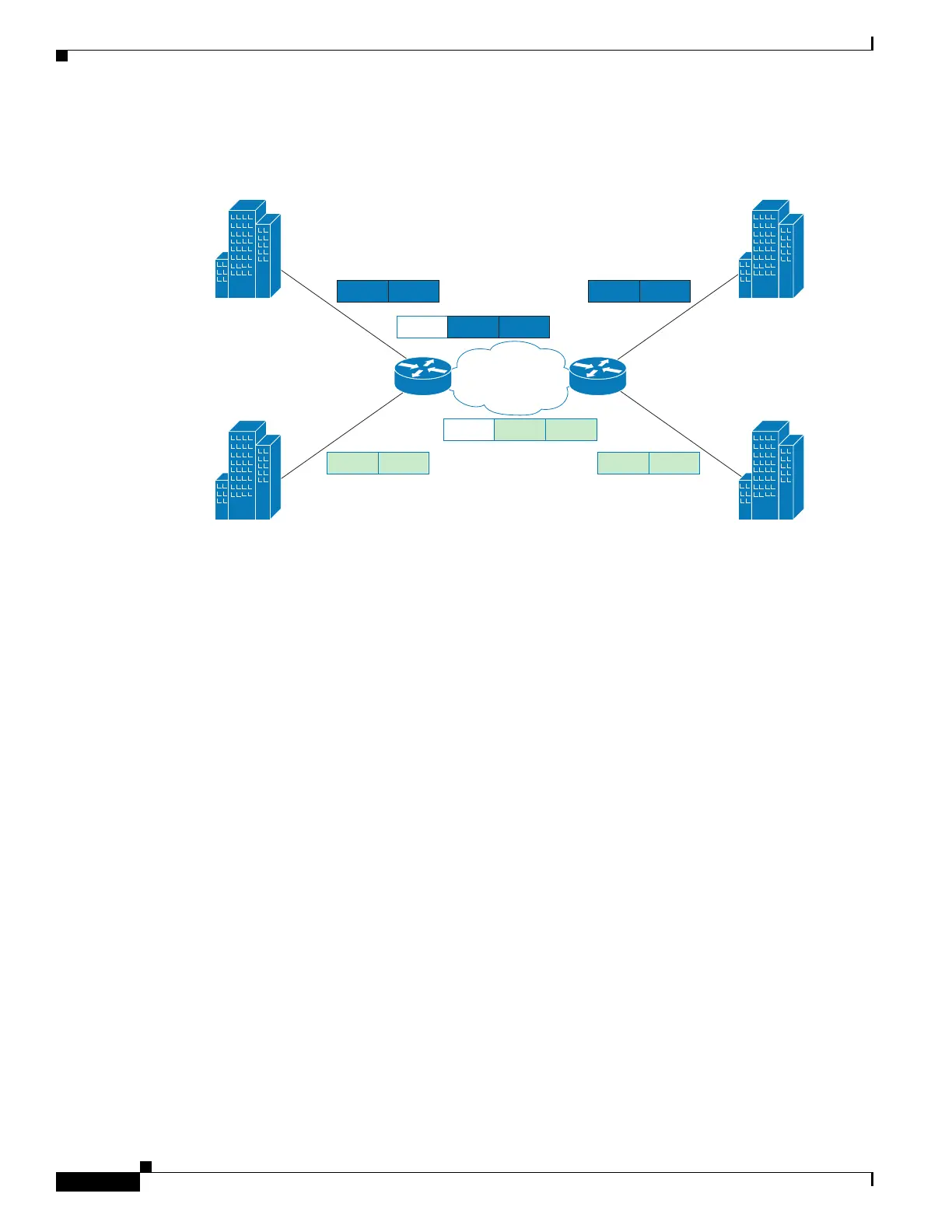

The ingress interfaces use the set precedence tunnel and set dscp tunnel commands (both conditional
and unconditional) within an ingress policy applied to the ingress interface. shows a typical mVPN
network. When an IP packet arrives at PE1 on the ingress interface E1, the packet is sent out of the tunnel
interface E2 into the core network by encapsulating the IP packet inside a GRE tunnel.
Customer ABC
Site A
Customer ABC
Site B
Service
Provider
Service
Provider
Tag 10
Tag 9
Tag 27 Data Tag 27 Data
Tag 27 Data
Tag 27 Data Tag 27 Data
Tag 27 Data
Customer XYZ
Site A
Customer XYZ
Site B
208199
