Cisco ASR 907 Installing

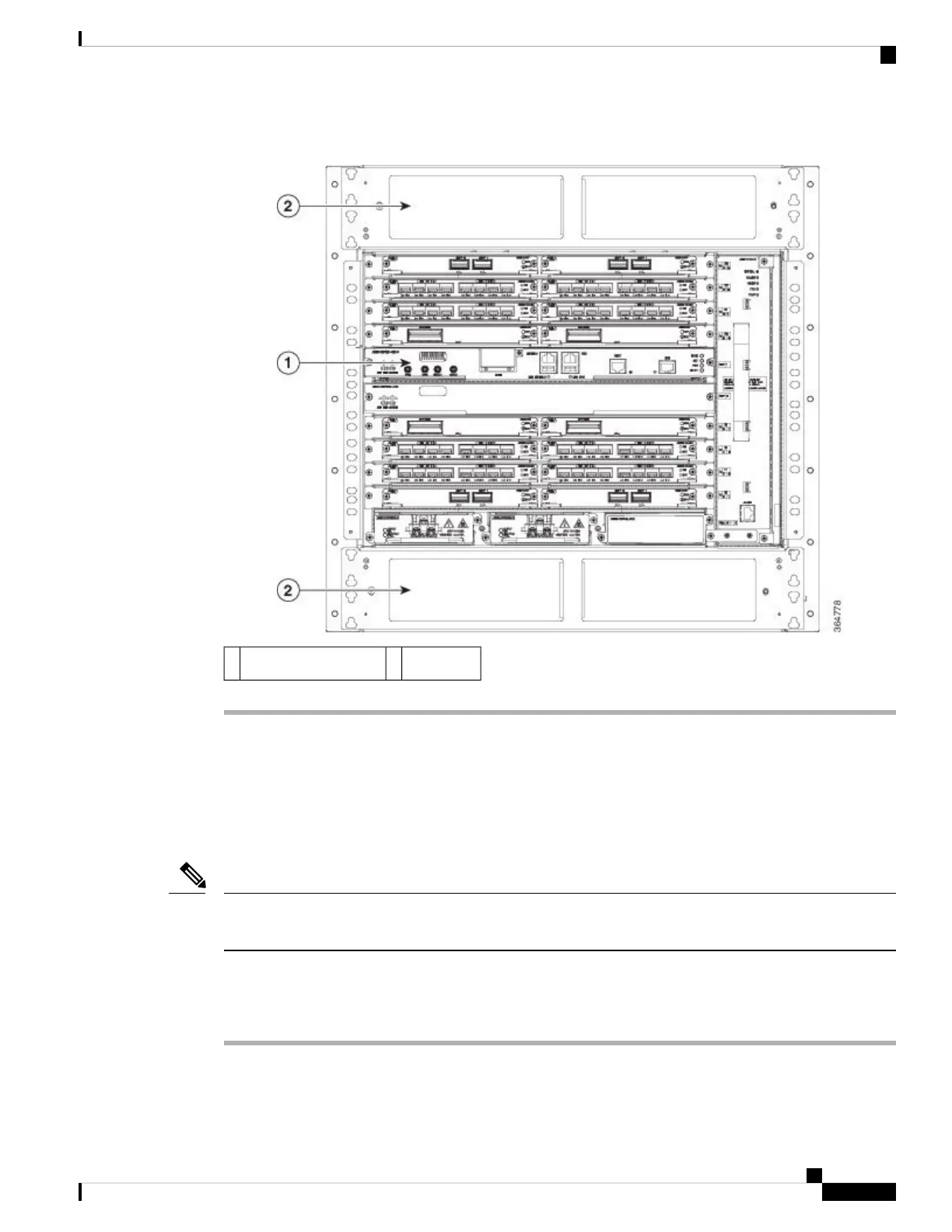

Figure 11: Cisco ASR 907 Chassis with Air Plenum
Air plenum2Cisco ASR 907 router1
Attaching the Cable Management Brackets
The router supports the following brackets:
• A907-CABLE-GUIDE—This guide helps in routing the cables from the interface modules; therefore
enabling a proper cable bending radius. See the figure below.
The mounting brackets and cable mounting brackets are assembled together. We recommend that the brackets
are installed before the chassis is installed in the Air Plenum.
Note
To install the optional cable management brackets, perform these steps:
Procedure
Step 1 Position the cable management brackets against the front of the chassis and align the four screw holes, as
shown in the figure below.
Installing the Cisco ASR 907 Router
11
Installing the Cisco ASR 907 Router
Attaching the Cable Management Brackets
