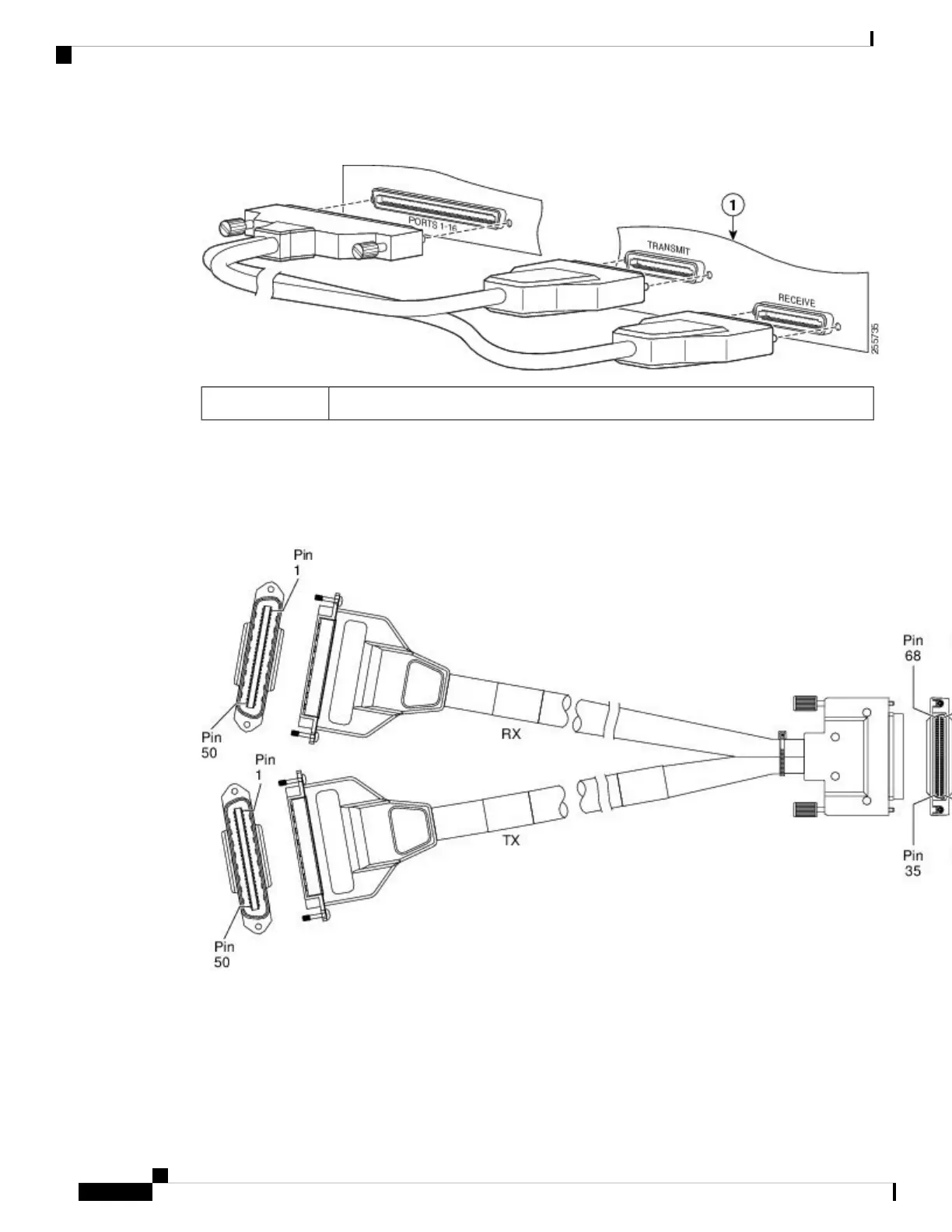

Figure 33: Cable Installation between 16 x T1/E1 Interface and Patch Panel
Patch panel interfaces1
For information about the pinout of the cable connecting the T1/E1 interface to the rear of the patch panel,
see the T1/E1 Port Pinout.
32 x T1/E1 Cable Connector
Figure 34: 32 x T1/E1 Cable Connector
The 32 x T1/E1 interface module requires two patch cables. Each patch cable has a 68-pin connectors that
connects with each connector port on the front panel of the 32 x T1/E1 interface module.
Use the thumbscrews on either side of the connectors to secure the cable to the interface.
The other end of the cable has two 50-pin Telco connectors that attach to the rear of a 24-port RJ45 patch
panel. Both connectors are identical: one is for Transmit (TX) and the other is for Receive (RX).
Installing the Cisco ASR 907 Router
54
Installing the Cisco ASR 907 Router
32 x T1/E1 Cable Connector
