Cisco ASR 907 Installing

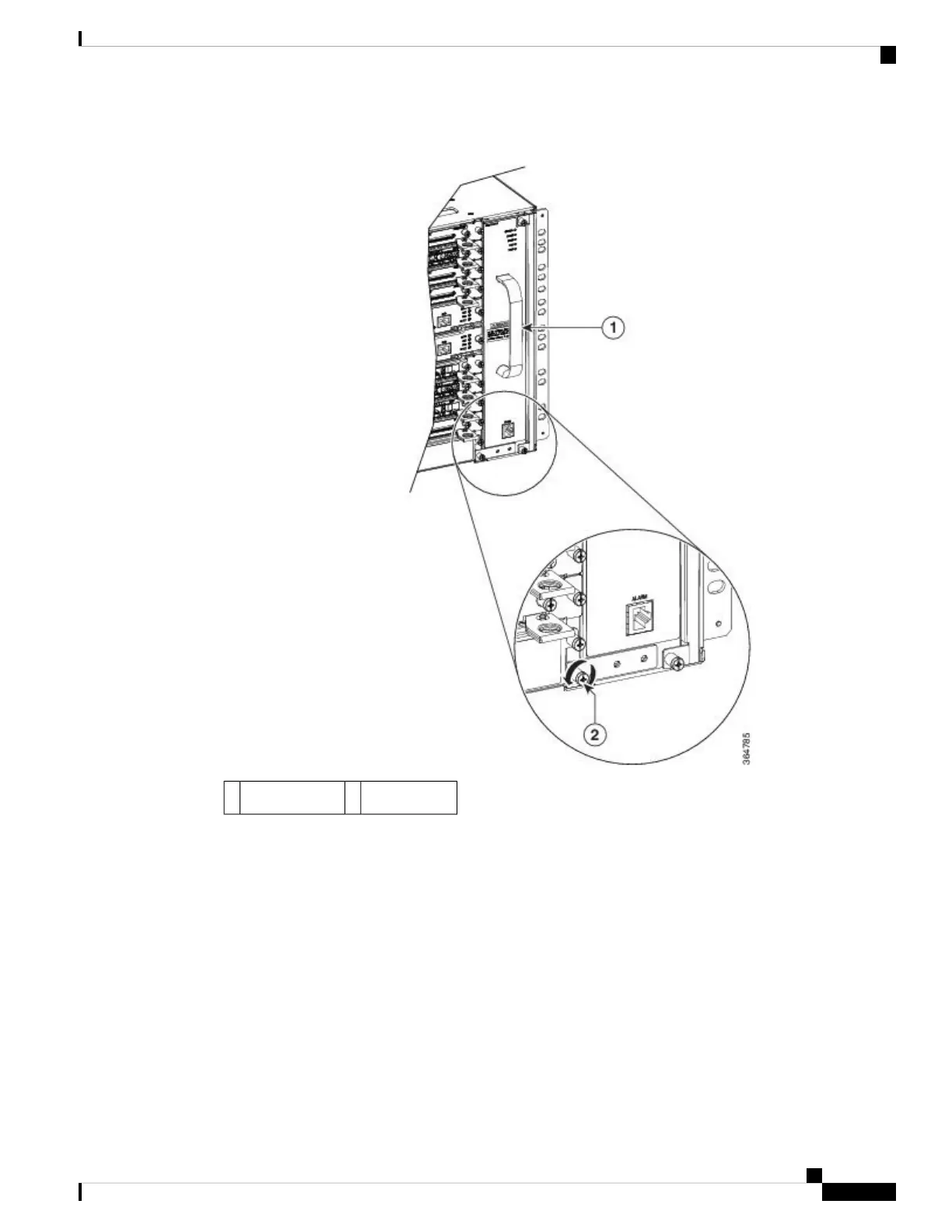

Figure 19: Detaching the Fan Tray
Captive screw2Fan tray handle1
Step 2 Grasp the fan tray handle with one hand and the outside of the chassis with the other hand. The figure above
shows the front of the fan tray, including the handle.
The fans are exposed on the left side of the fan tray. Keep your fingers, clothing, and jewelry away
from the fans. Always handle the fan tray by the handle.
Caution
Step 3 Pull the fan tray toward you no more than 1 inch to disengage it from the power receptacle on the midplane,
as shown in the figure below.
Installing the Cisco ASR 907 Router
19
Installing the Cisco ASR 907 Router
Removing and Replacing the Fan Tray
