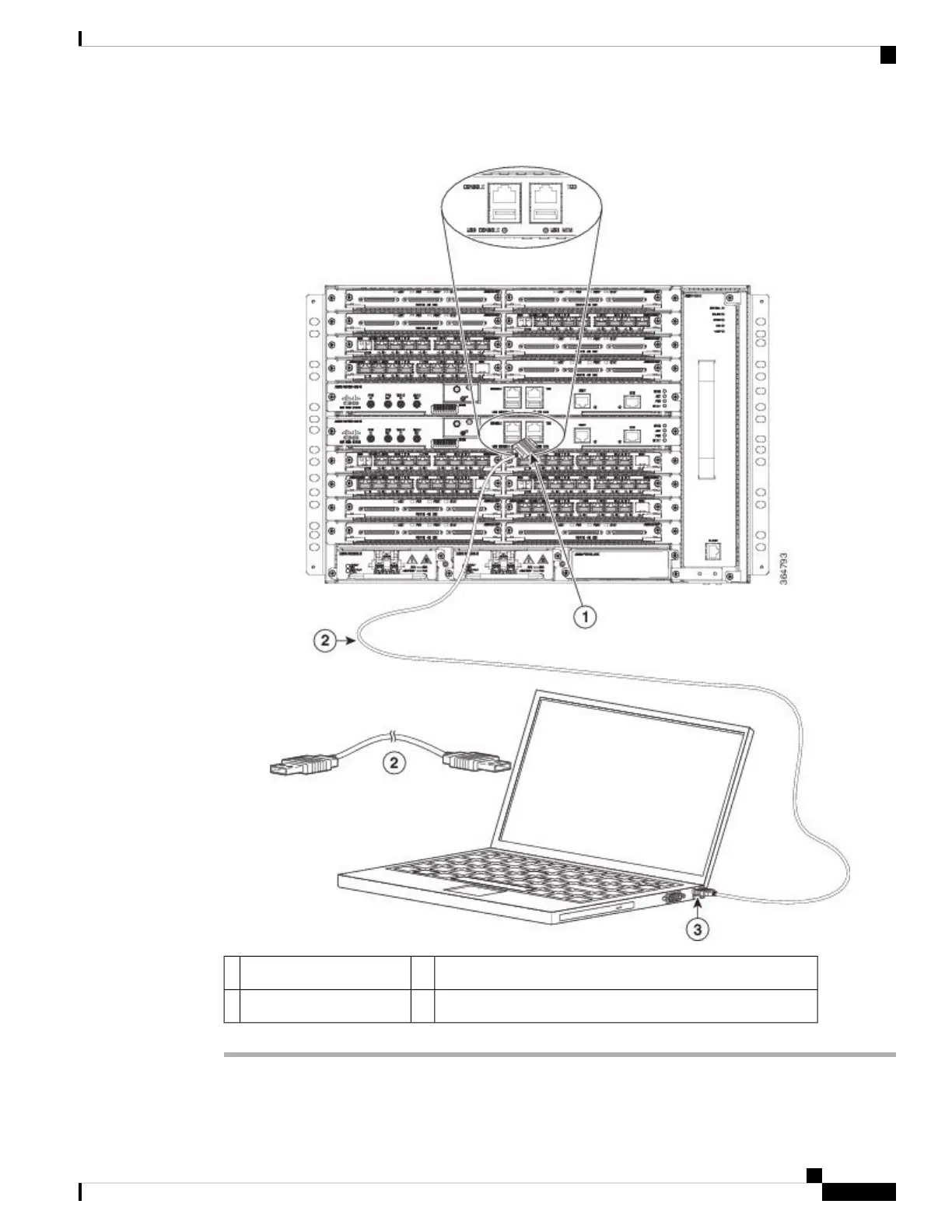

Figure
27:
Connecting
the
USB
Console
Cable
to
the
Cisco
ASR
907
Router
USB
5-pin
mini
USB
T
ype-B
to
USB
T
ype-A
console
cable
2
USB
T
ype-A
console
port
1
—
—
USB
T
ype-A
3
Installing
the
Cisco
ASR
907
Router
41
Installing
the
Cisco
ASR
907
Router
Connecting
to
the
Serial
Port
using
Microsoft
Windows
40
42
Table of Contents
Installing the Cisco ASR 907 Router
1
Prerequisites
1
Installing the Router in a Rack
1
Installing the Chassis Brackets
1
Installing the Router Chassis in the Rack
2
Installing Plenum A907-F2B-AIR-U Assembly and Chassis in the Rack
5
Installing the Chassis in the Air Plenum
10
Attaching the Cable Management Brackets
11
Installing the Chassis Ground Connection
12
Installing the Fan Tray
15
Removing and Replacing the Dust Filter
16
Removing the Dust Filter
17
Dust Filter Maintenance
17
Removing and Replacing the Fan Tray
18
RSP Installation
20
Installing an RSP Module
20
Removing an RSP Module
22
Hot-Swapping an RSP Module
23
Installing the Interface Module Carrier
24
Interface Module Installation
24
Installing an Interface Module
25
Removing an Interface Module
26
Hot-Swapping an Interface Module
26
Installing the Power Supply
28
Preventing Power Loss
29
Power Connection Guidelines
29
Guidelines for DC-Powered Systems
30
Guidelines for AC-Powered Systems
30
Installing the DC Power Supply
30
Installing the DC Power Supply Module
30
Connecting DC Power Supply Unit (A900-PWR900-D2)
31
Tools and Equipment
32
Activating the DC Power Supply
33
Removing and Replacing the DC Power Supply
34
Installing the AC power Supply
35
Installing the AC Power Supply Module for A900-PWR1200-A (1200 W)
35
Recommended Power Cables
36
Activating the AC Power Supply
37
Removing and Replacing the AC Power Supply
37
Installing Dust Caps
38
Connecting the Cisco ASR 907 Router to the Network
39
Connecting Console Cables
39
Connecting to the Serial Port using Microsoft Windows
39
Connecting to the Console Port using Mac OS X
42
Connecting to the Console Port using Linux
42
Installing the Cisco Microsoft Windows USB Device Driver
43
Installing the Cisco Microsoft Windows XP USB Driver
43
Installing the Cisco Microsoft Windows 2000 USB Driver
43
Installing the Cisco Microsoft Windows Vista USB Driver
44
Uninstalling the Cisco Microsoft Windows USB Driver
44
Uninstalling the Cisco Microsoft Windows XP and 2000 USB Driver Using the Add Remove Programs Utility
44
Uninstalling the Cisco Microsoft Windows XP and 2000 USB Driver Using the Setup.exe Program
44
Uninstalling the Cisco Microsoft Windows Vista USB Driver
45
Connecting to the Auxiliary Port
45
Connecting a Management Ethernet Cable
47
Installing and Removing SFP and XFP Modules
47
Connecting a USB Flash Device
47
Removing a USB Flash Device
48
Connecting Timing Cables
48
Connecting Cables to the BITS Interface
48
Connecting Cables to a GNSS Interface
49
Connecting Cables to the Input 10Mhz or 1PPS Interface
49
Connecting Cables to the Output 10Mhz or 1PPS Interface
50
Connecting Cables to the ToD Interface
50
Connecting a Cable to the GNSS Antenna Interface
50
Connecting Ethernet Cables
51
Connecting Cables to SFP Modules
52
Connecting T1/E1 Cables
52
Installing the Cable Connectors
52
T1/E1 Cable Connectors
52
16 x T1/E1 Cable Connectors
53
32 x T1/E1 Cable Connector
54
T1/E1 Pinouts
55
RJ45 Cable Pinouts
55
RJ48 Cable Pinouts
55
Connecting Cables to the Patch Panel
55
Patch Panel Pinout
56
Patch Panel Cabling for Redundancy
56
Recommended Patch Panel
58
Installing Patch Panel
59
Install 3G Patch Panel
63
Install Rack Brackets
64
Set up 3G Patch Panel on Rack
71
Wall Mount 3G Patch Panel
83
Patch Panel Dimensions
85
Connecting Serial Cables
90
Connecting the Fan Tray Alarm Port
91
Connector and Cable Specifications
92
