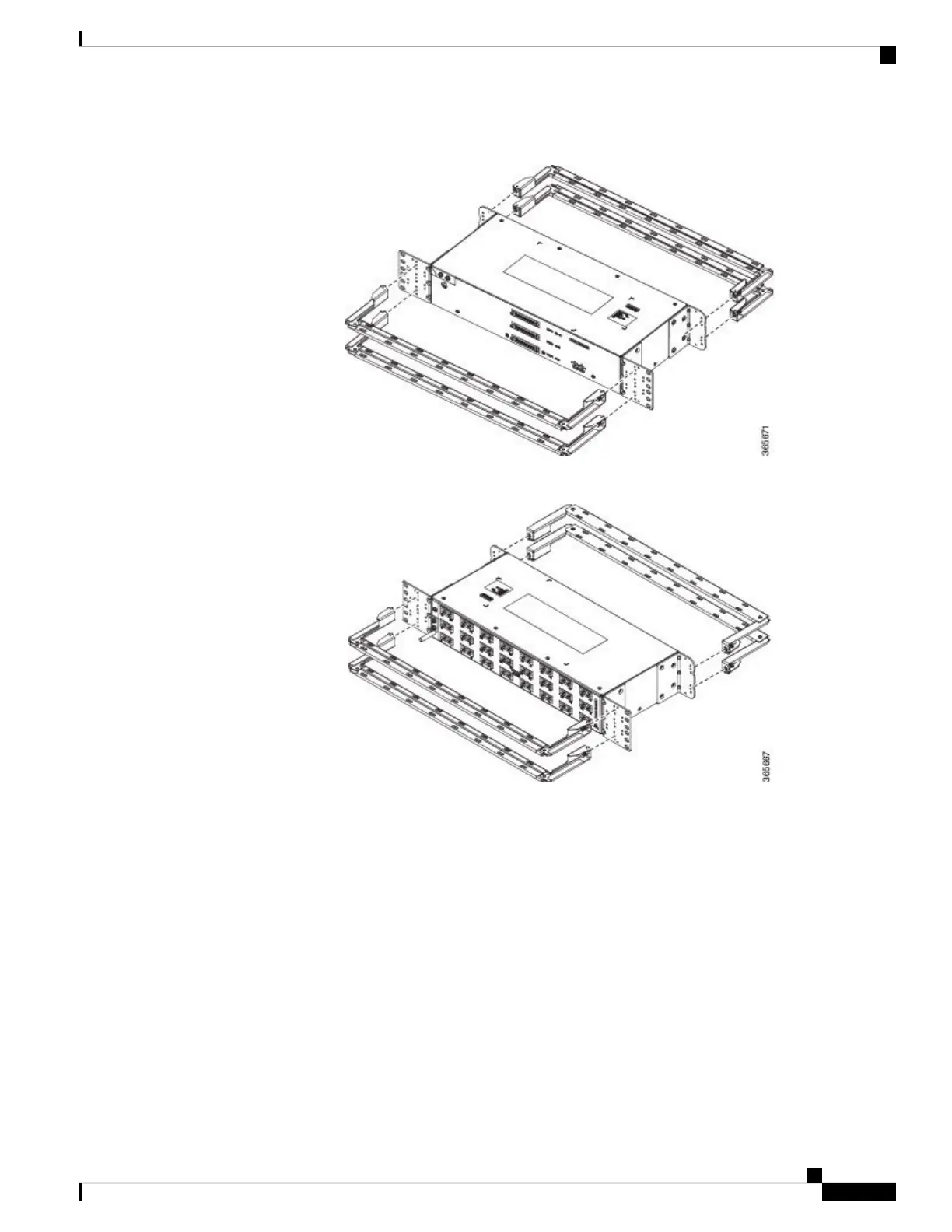

Figure 39: Patch Panel Front View with Brackets and Guides
Figure 40: Patch Panel Rear View with Brackets and Guides
Step 5 Secure the guides to the brackets with the screws. The recommended maximum torque is 28 in.-lb (3.16 N-m).
Step 6 Position the patch panel with brackets and guide onto the rack and secure with screws provided. The
recommended maximum torque is 28 in.-lb (3.16 N-m), see the figure below.
