Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Installing the Switch
Wall-Mounting
• Attaching the Brackets for Wall-Mounting, page 1-14
• Attaching the RPS Connector Cover, page 1-15
• Mounting on a Wall, page 1-16
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
Attaching the Brackets for Wall-Mounting
Figure 1-14 shows how to attach a 19-inch bracket to one side of the switch. Follow the same steps to
attach the second bracket to the opposite side.

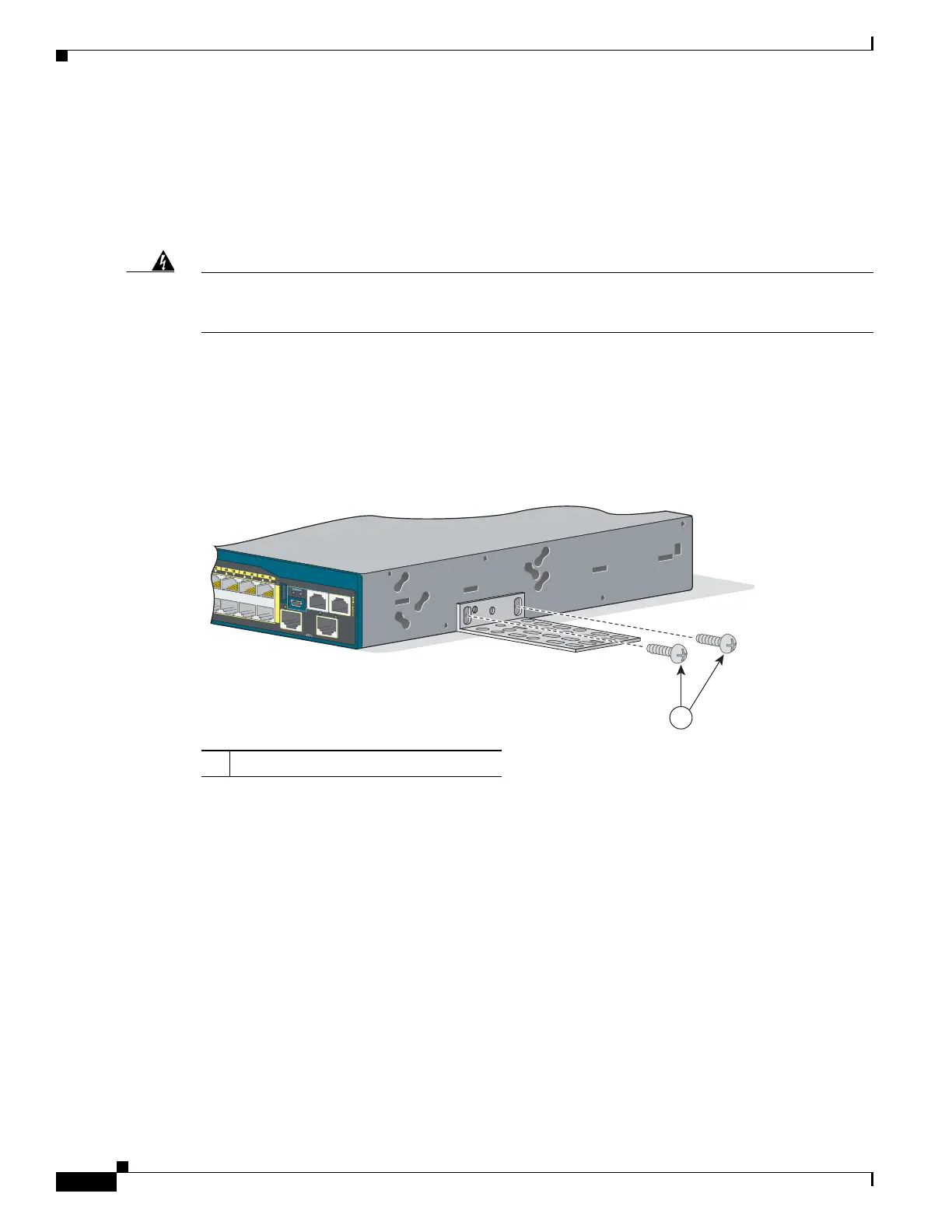

Figure 1-14 Attaching the 19-inch Brackets for Wall-Mounting
1 Phillips truss-head screws (48-0656-01)
Catalyst 2960-S
Series
PoE+ 10G
1
2
47X
48X
276764
1

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
