Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Installing the Switch
Mounting in a Rack
After the brackets are attached, use the four supplied Phillips machine screws to attach the brackets to
the rack (Figure 1-13). Use the black Phillips machine screw to attach the cable guide to the left or right
bracket.
When you complete the switch installation, see the “After Switch Installation” section on page 1-17 for
information on switch configuration.

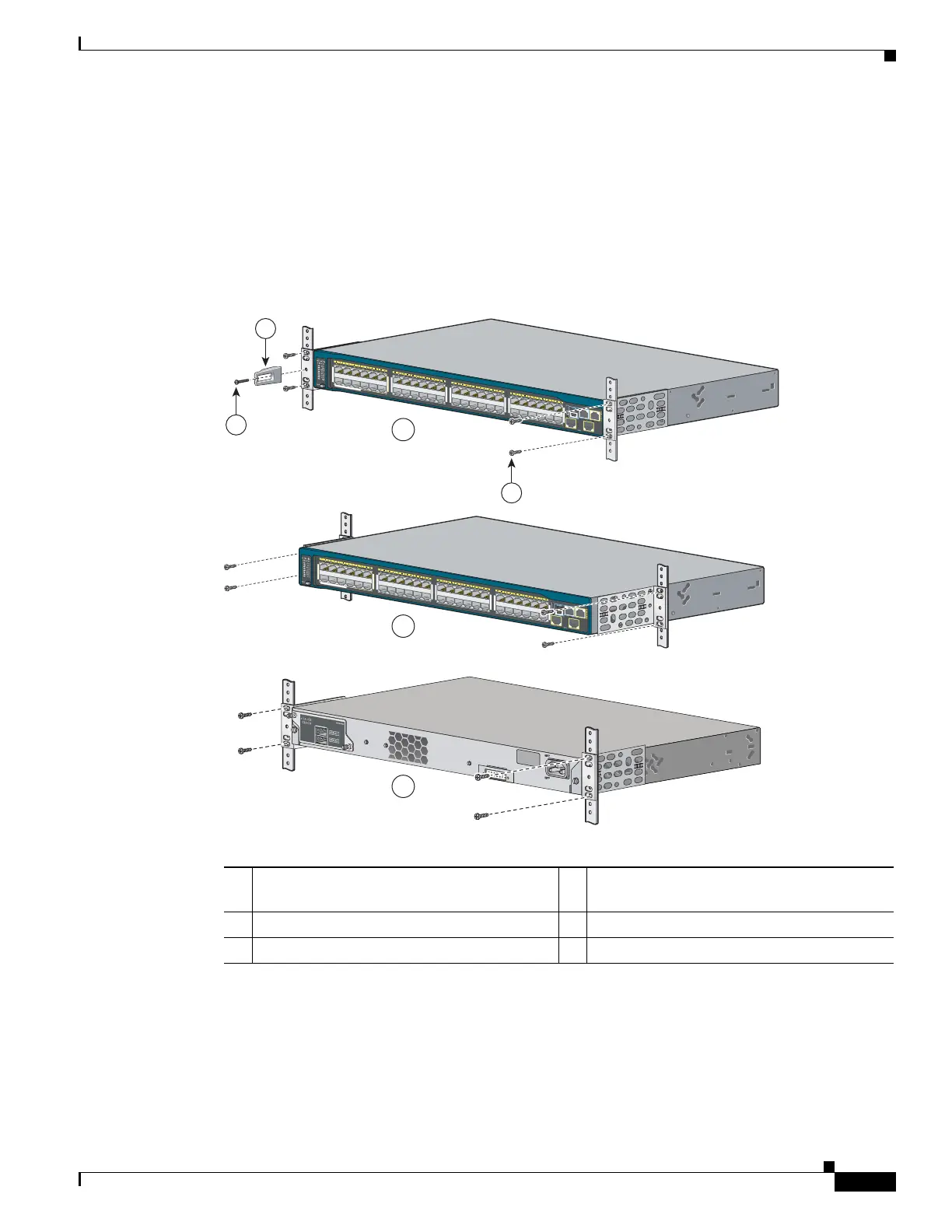

Figure 1-13 Mounting in a Rack
1 Cable guide 4 Number-12 Phillips pan-head screws
(48-0523-01)
2 Phillips machine screw, black (48-0654-01) 5 Mid-mounting position
3 Front-mounting position 6 Rear-mounting position
11X
2X
1X
11X
14X
12X
13X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
11X
2X
1X
11X
14X
12X
13X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
POWER
OVER
ETHERNET 740W
POWER
OVER
ETHERNET 740W
Catalyst 2960-S
Series
PoE+ 10G
Catalyst 2960-S
Series
PoE+ 10G
1
2
206600
RATING
100-240~
12-6A, 50-60Hz
3
4
5
6

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
