Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Installing the Switch
Attaching the RPS Connector Cover
Note The Catalyst 2960S-F48FPS-L, 2960S-F48LPS-L, 2960S-F24PS-L, 2960S-F48TS-L, 2960S-F24TS-L,
2960S-F48TS-S, and 2960S-F24TS-S switches do not have an RPS connector and a cover is not needed.
These models do not support RPS.
If you are not using an RPS with your switch, use the two Phillips pan-head screws to attach the RPS
connector cover to the back of the switch (Figure 1-15).
Warning If an RPS is not connected to the switch, install an RPS connector cover on the back of the switch.
Statement 265

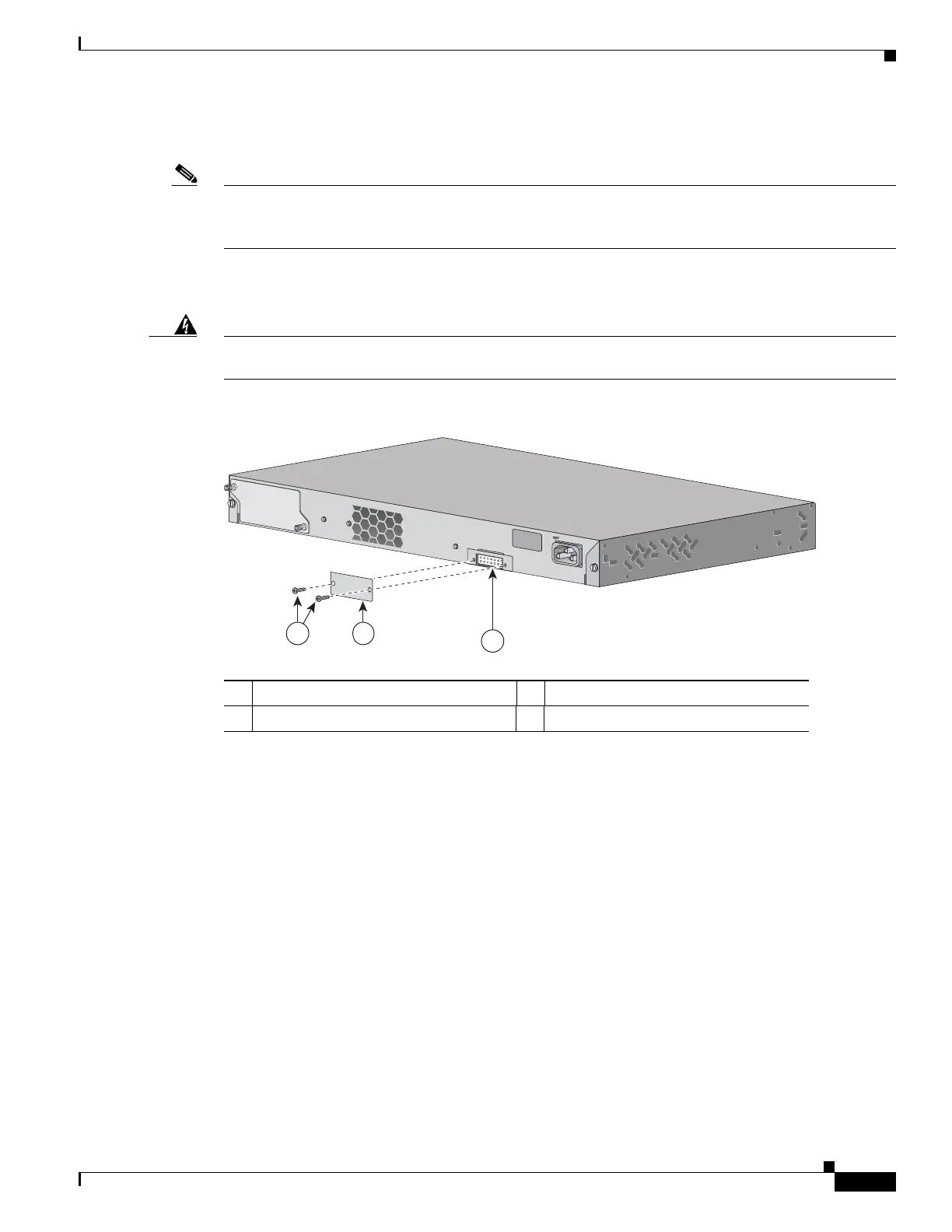

Figure 1-15 Attaching the RPS Connector Cover
1 Phillips pan-head screws (48-0482-01) 3 RPS connector
2 RPS connector cover
RA
T
I
NG
100-240~
12-6A, 50-60
Hz
21
3
206760

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
