Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Planning a Switch Stack
Stack Cabling

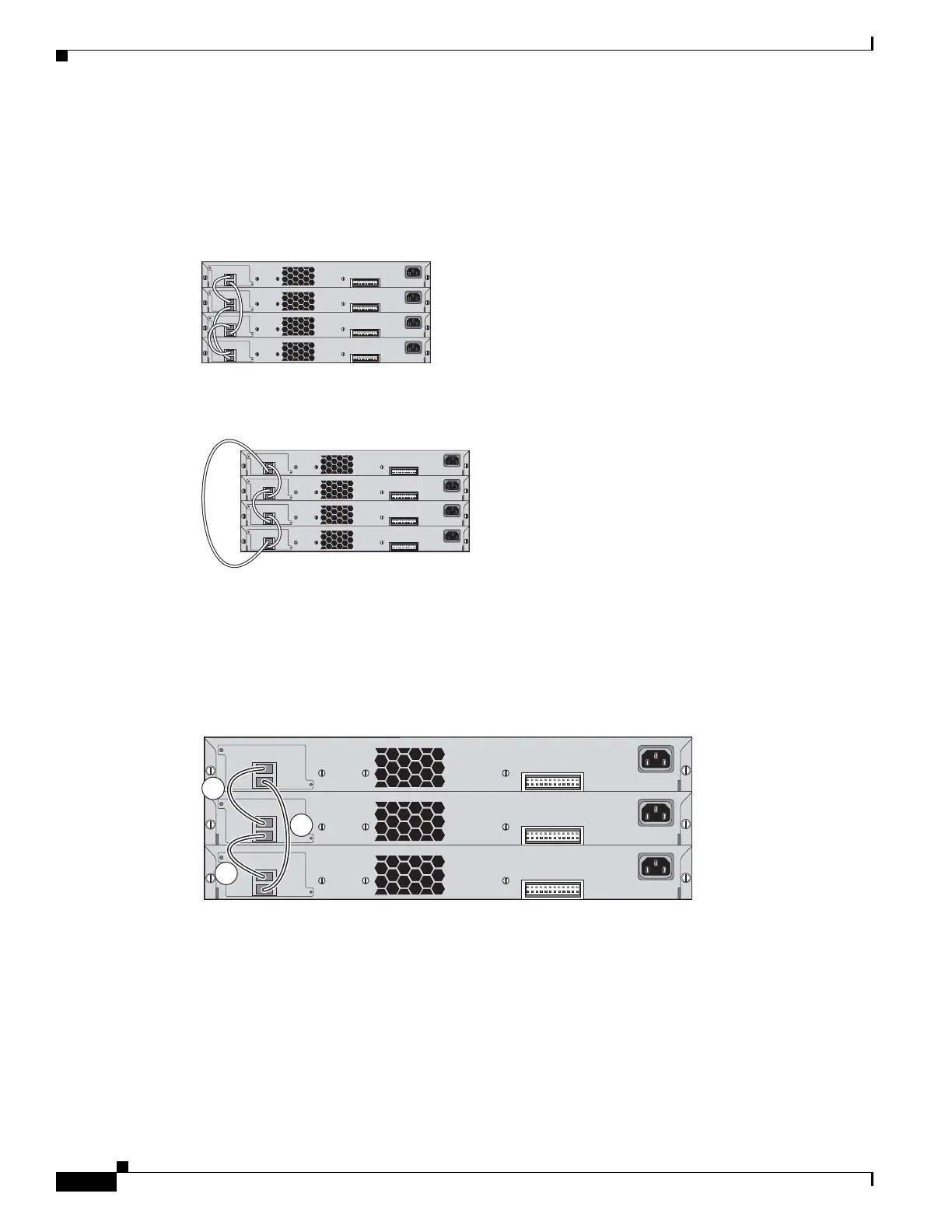

Figure 1-5 and Figure 1-6 show the switches stacked in a vertical rack or on a table. The connections are
redundant.
Figure 1-4 Stacking Switches with the 0.5-meter FlexStack Cable
Figure 1-5 Stacking Switches with 0.5-meter and 3-meter FlexStack Cables
Stack Bandwidth and Partitioning Examples
Figure 1-6 shows a stack that provides full bandwidth with redundant connections.
Figure 1-6 Stack with Full Bandwidth Connections
Figure 1-7 shows a stack with incomplete stack cabling connections. This stack provides only half
bandwidth and does not have redundant connections.
206231
206230
206701
A
B
C
