Cisco CATALYST 2960 Installation

1-11
Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Installing the Switch

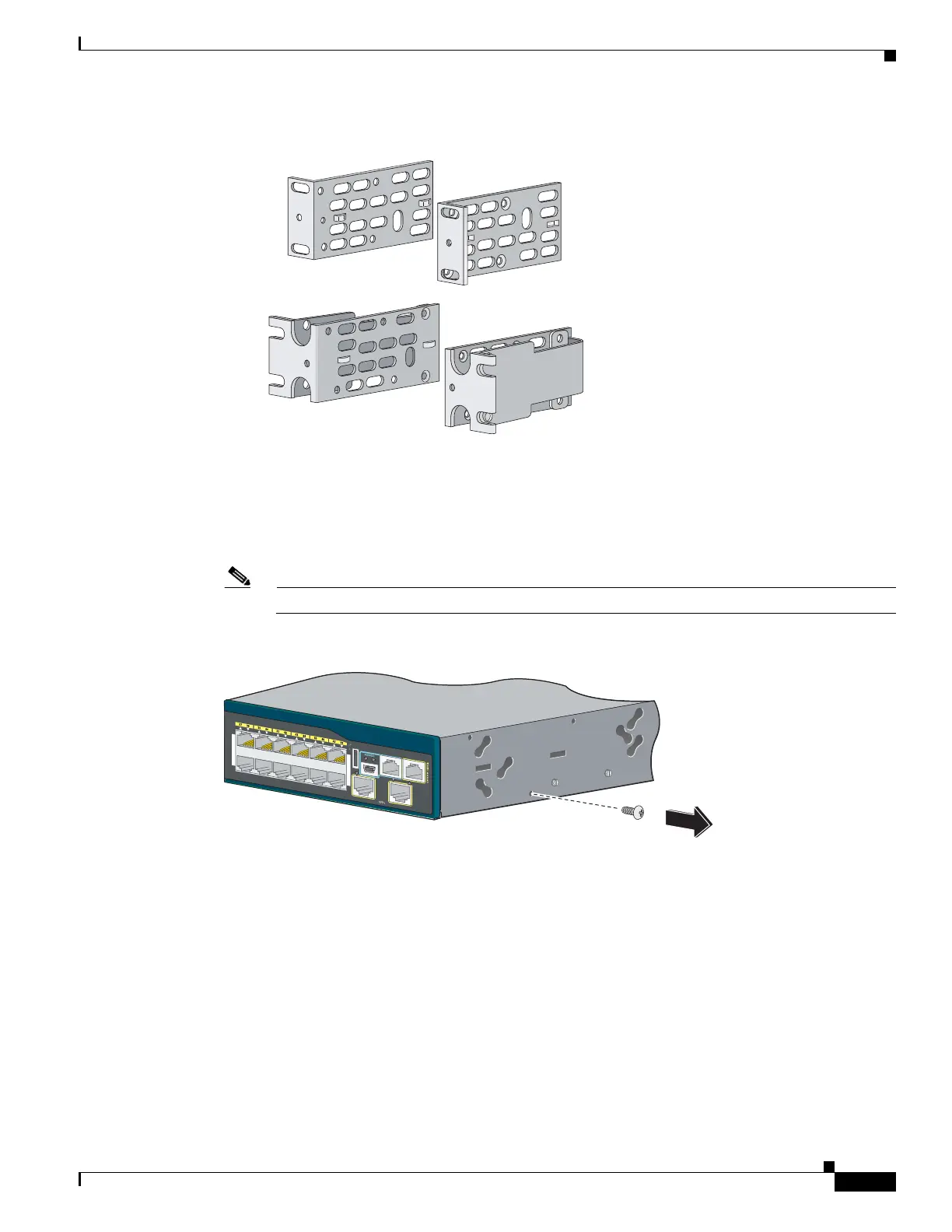

Figure 1-10 Rack-Mounting Brackets
Attaching the Rack-Mount Brackets
To rack-mount the switch, first remove the screws from the switch chassis so that the mounting
brackets can be attached.
Note You do not need to remove the screws for attaching the brackets in the rear-mounting position.
Figure 1-11 Removing Screws from the Switch
206933
19 inch
ETSI
252587
39X
38X
47X
48X
1
2
Catalyst 2960-S
Series
PoE+ 10G

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
