Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
Installing the Switch
Use four Phillips flat-head screws to attach the long side of the bracket to each side of the switch
(Figure 1-12).

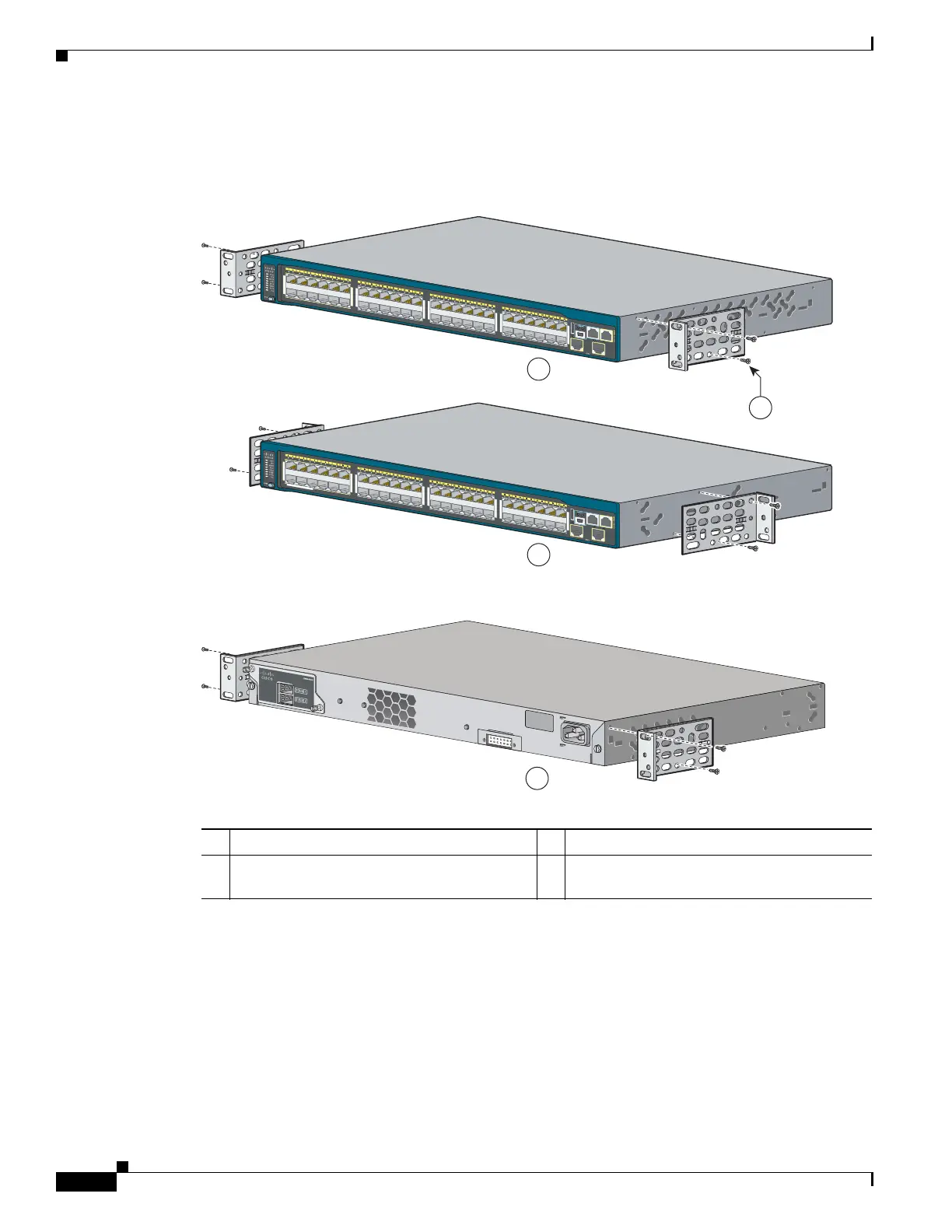

Figure 1-12 Attaching Brackets for 19-inch Racks
1 Front-mounting position 3 Mid-mounting position
2 Number-8 Phillips flat-head screws
(48-0655-01)
4 Rear-mounting position
