1-24
Catalyst 2960-S Switch Hardware Installation Guide
OL-19732-04
Chapter 1 Switch Installation
10/100 and 10/100/1000 PoE+ Port Connections

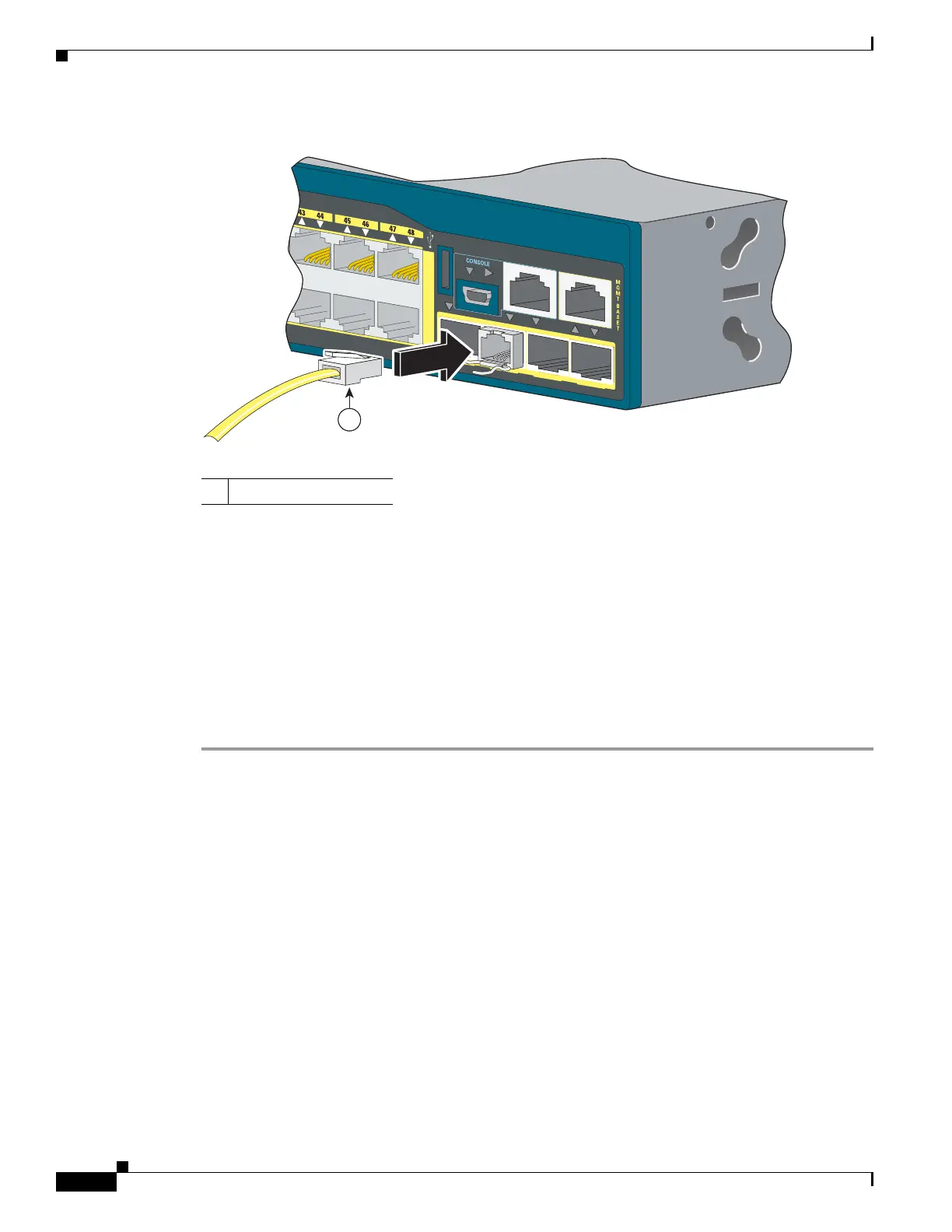

Figure 1-25 Connecting to a 1000BASE-T SFP Module
Step 2 Connect the other end of the cable to an RJ-45 connector on the other device.
Step 3 Observe the port status LED.
The LED turns green when the switch and the other device have an established link.
The LED turns amber while the STP discovers the network topology and searches for loops. This process
takes about 30 seconds, and then the port LED turns green.
If the LED is off, the other device might not be turned on, there might be a cable problem, or there might
be a problem with the adapter in the other device. See Chapter 1, “Troubleshooting,” for solutions to
cabling problems.
Step 4 If necessary, reconfigure and restart the switch or other device.
10/100 and 10/100/1000 PoE+ Port Connections
See the “10/100 PoE+ Ports” section on page 1-5 and the “10/100/1000 PoE+ Ports” section on page 1-5
for information on the cables and connectors.
The ports provide PoE support for devices compliant with IEEE 802.3af and also provide Cisco
prestandard PoE support for Cisco IP Phones and Cisco Aironet Access Points.
On a per-port basis, you can control whether or not a port automatically provides power when an
IP phone or an access point is connected.
To access an advanced PoE planning tool, use the Cisco Power Calculator available on Cisco.com at this
URL:
http://tools.cisco.com/cpc/launch.jsp
You can use this application to calculate the power supply requirements for a specific PoE configuration.
The results show output current, output power, and system heat dissipation.
1 RJ-45 connector
Catalyst 2960-S
Series
49
51
50
52
47X
48X
1
1
206796
