Cisco Catalyst 9200 Series Installation Guide

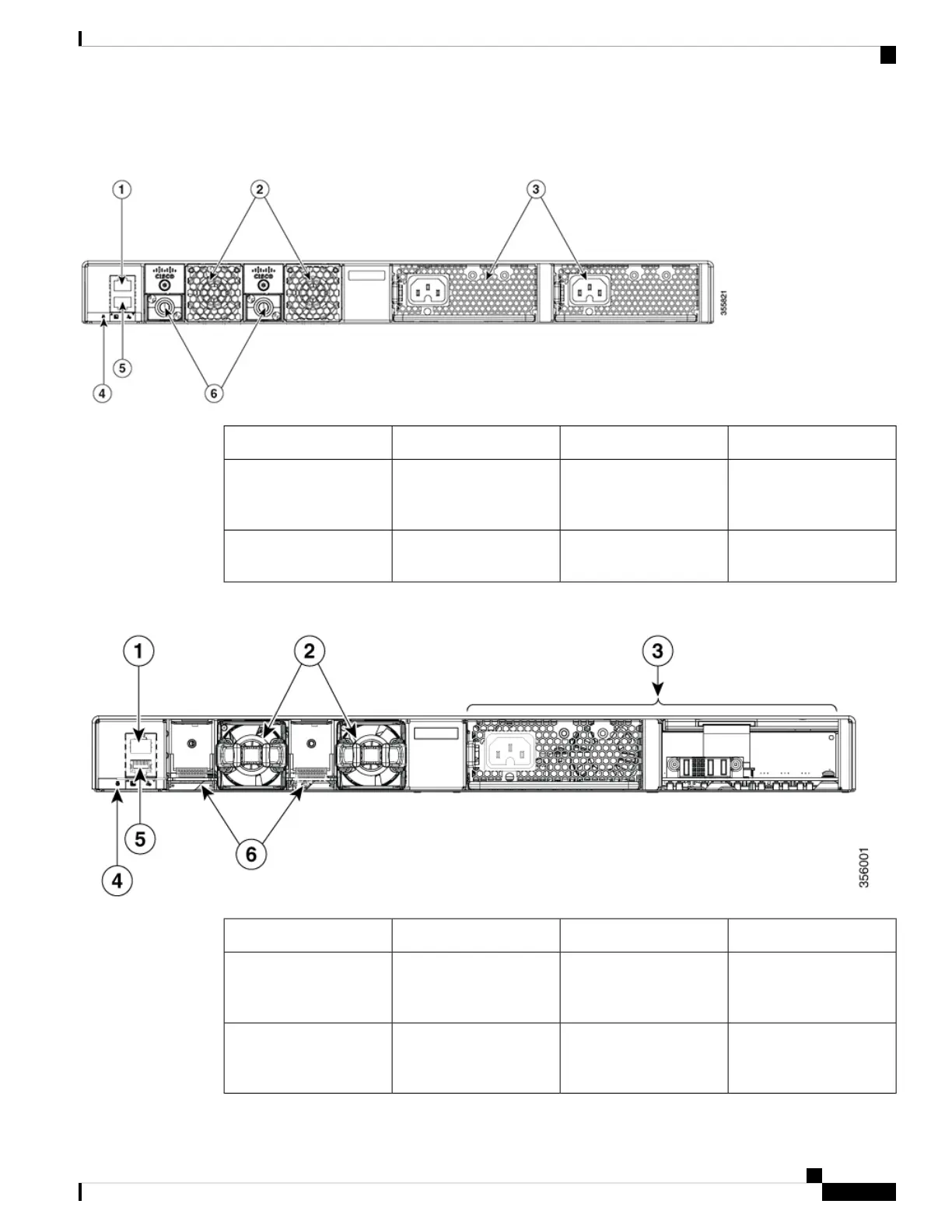

Figure 5: Rear Panel of a C9200L Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Fixed fan modules on
C9200L switches
2
StackWise-80 port
connectors
6Power supply module
slots
3
Figure 6: Rear Panel of a C9200 Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Modular fan modules on
C9200 switches
2
StackWise-160 port
connector slots with stack
blanks installed
6Power supply module
slots
3
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
7
Product Overview
Rear Panel

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
