Cisco Catalyst 9200 Series Installation Guide

Standalone Collapsed Core Switch
(with ECMP Peer and Port Channel
Downlink)
Standalone Core Switch (with
ECMP Peers)
Setting
Unicast RPF (uRPF) in strict modeUnicast RPF (uRPF) in strict modeMitigate Address Spoofing
EnabledEnabledService Timestamp
Layer 3 settings configured on the
management port, based on Quick
Setup
Layer 3 settings configured on the
management port, based on Quick
Setup
Management Interface
QoS Policy for Distribution/Core
defined
QoS Policy for Distribution/Core
defined
QoS Policy
Selected uplink ports connect to
MAN/WAN device
Selected uplink ports connect to
MAN/WAN device
Uplink Interfaces
Downlink connections to
distribution switches
Downlink connections to access
switches
Downlink Interfaces
Selected ports connect to other core
switches
Selected ports connect to other core
switches
Cross-connect Interfaces

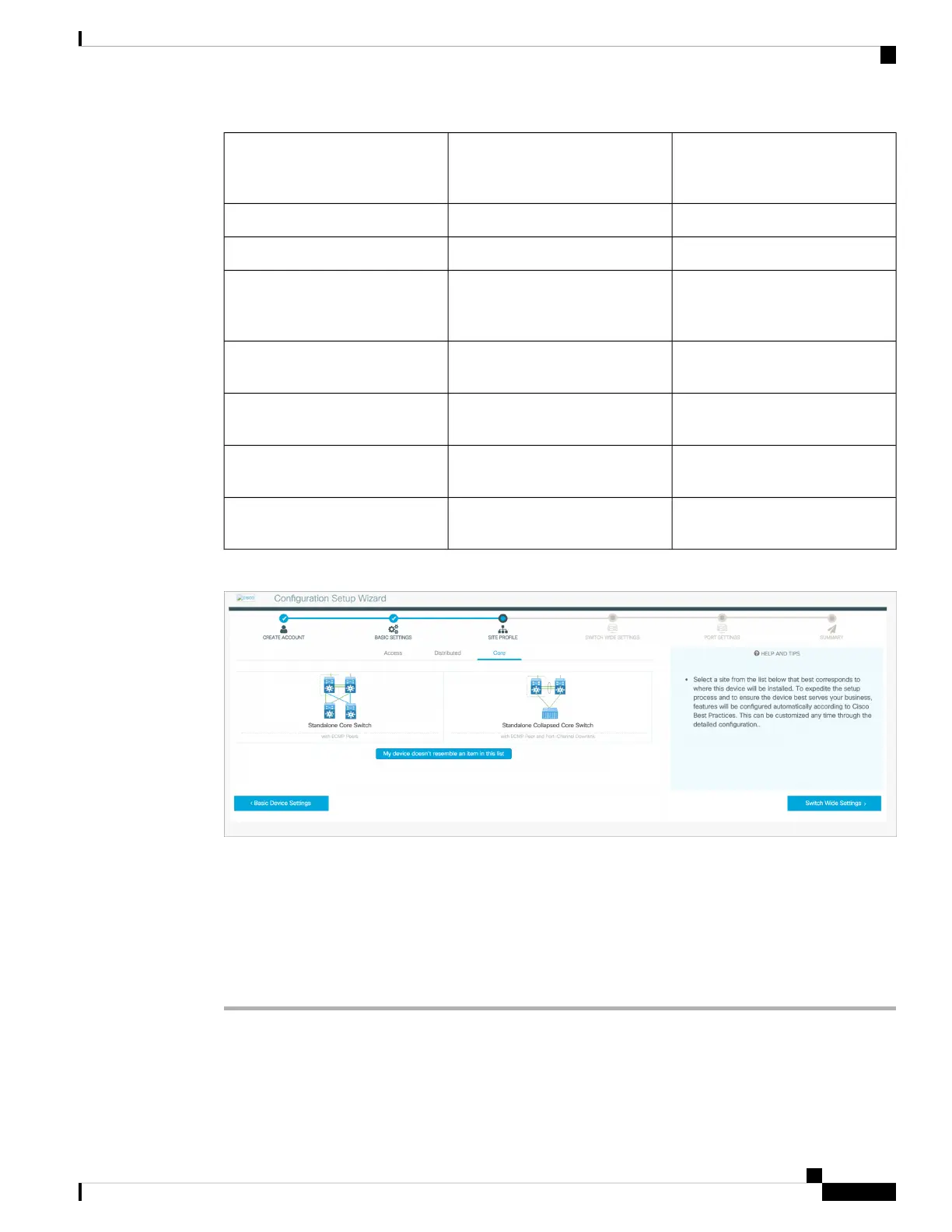

Figure 41: Site Profile - Core Switches
Configuring Switch Wide Settings
Configuring VLAN Settings
Procedure
Step 1 In the VLAN Configuration section, you can configure both data and voice VLANs. Type a name for your
data VLAN.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
59
Configuring the Switch
Configuring Switch Wide Settings

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
