Cisco Catalyst 9200 Series Installation Guide

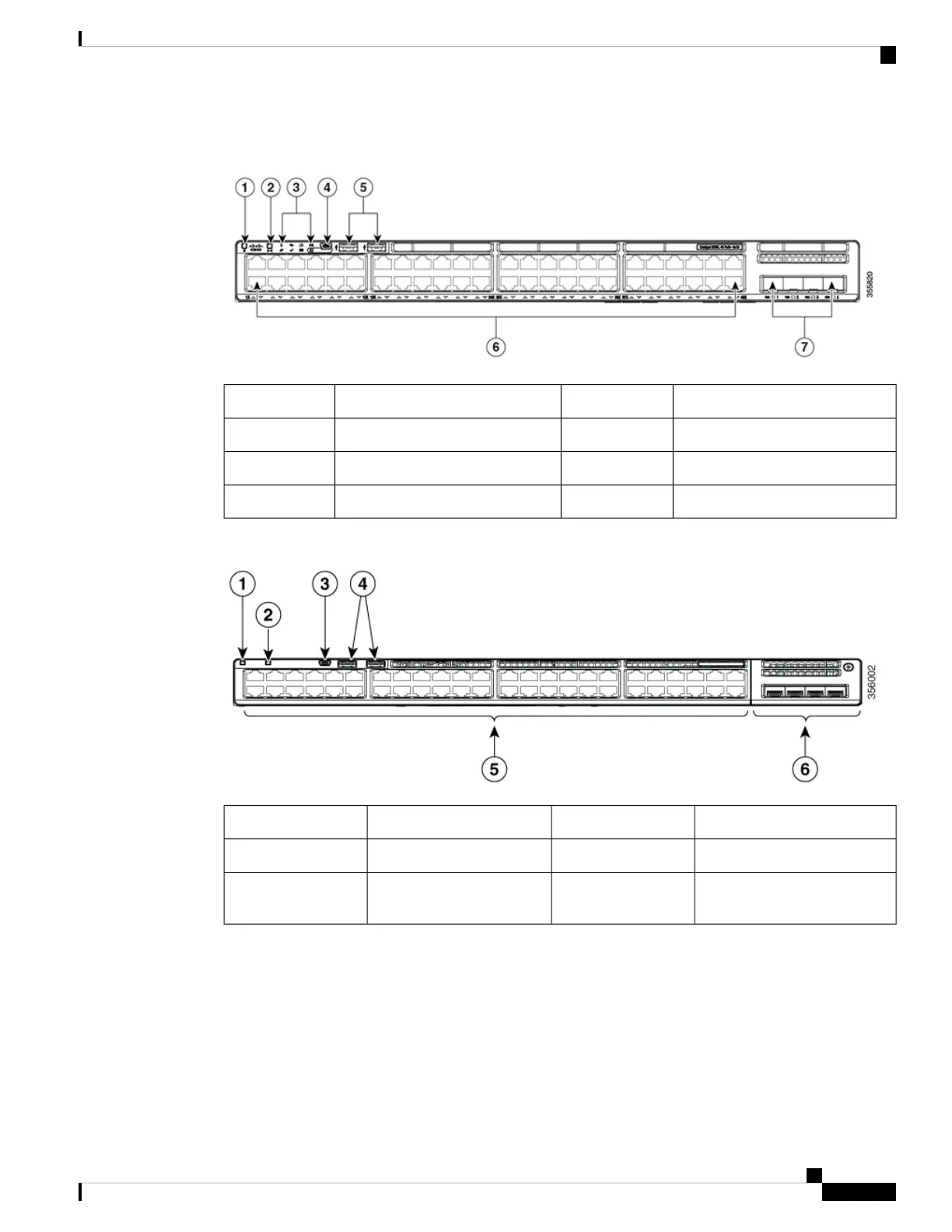

Figure 1: Front Panel of a C9200L Switch
USB Type A storage ports5Blue Beacon (UID button)1
10/100/1000 PoE+ ports6Mode button2
Fixed uplink ports7Status LEDs3
USB mini-Type B (console) port4
Figure 2: Front Panel of a C9200 Switch
USB Type A storage ports4Blue Beacon (UID button)1
10/100/1000 PoE+ ports5Mode button2
Network Module with uplink
ports
6USB mini-Type B (console)
port
3
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 100BASE-TX and 1000BASE-T traffic requires twisted pair (UTP) cable of Category 5
or higher. The 10BASE-T traffic can use Category 3 cable or higher.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
3
Product Overview
10/100/1000 Ports

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
