Cisco Catalyst 9200 Series Installation Guide

CHAPTER 5
Installing a Fan Module
• Fan Modules Overview , on page 47
• Installation Guidelines, on page 48
• Installing a Fan Module, on page 48
• Finding the Fan Module Serial Number, on page 49
Fan Modules Overview
Cisco Catalyst 9200 (C9200) Series switches support two field-replaceable fan modules providing N+1
redundancy support. The switch should be able to operate at ambient temperature if one of the fans fails.

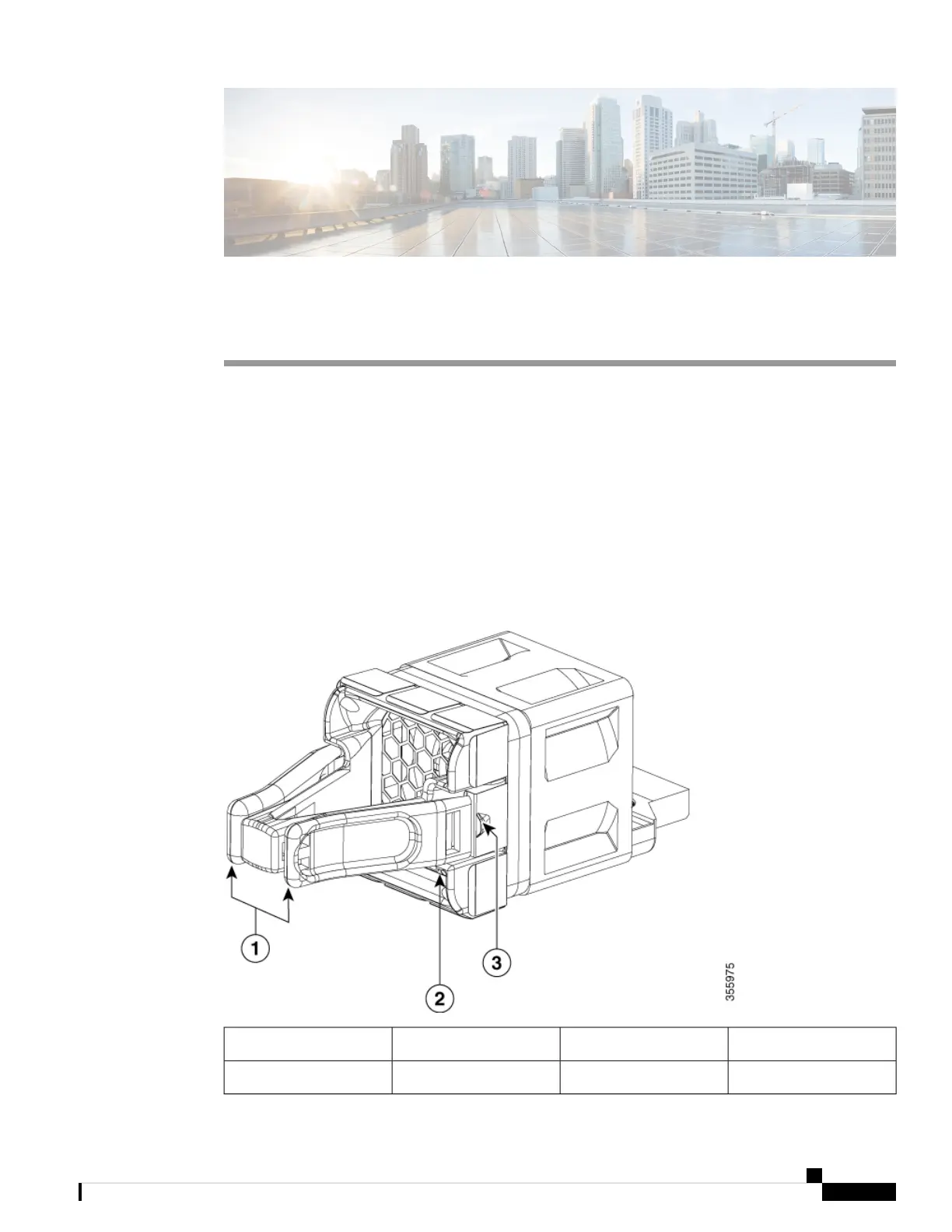

Figure 31: Fan Module
Retainer clip3Extraction handles1
Fan LED2
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
47

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
