RJ-45 Console Port LED
Table 28: RJ-45 Console Port LED
RJ-45 Console Port StatusColor
RJ-45 console is disabled. USB console is active.Off
RJ-45 console is enabled. USB console is disabled.Green
Fan LED
Table 29: Fan LED Indicator
DescriptionColor/State
The fan is not receiving power; the fans have stopped.Off
All fans are operating normally.Green
One or more fans have encountered tachometer faults.Amber
One or more fans' tachometer faults have exceeded the maximum limit.Red
Uplink Port LEDs
The uplink ports have various status LEDs. Each port LED is labeled according to its SFP and SFP+ module
status.
• For SFP ports, a G labeling nomenclature is used, where G = 1 Gigabit. The The G label appears to the
left of the uplink port LED.
• For SFP+ ports, a 10G labeling nomenclature is used, where 10G = 10 Gigabit. The 10G label appears
to the left of the uplink port LED. SFP+ module ports support both SFP+ and SFP modules

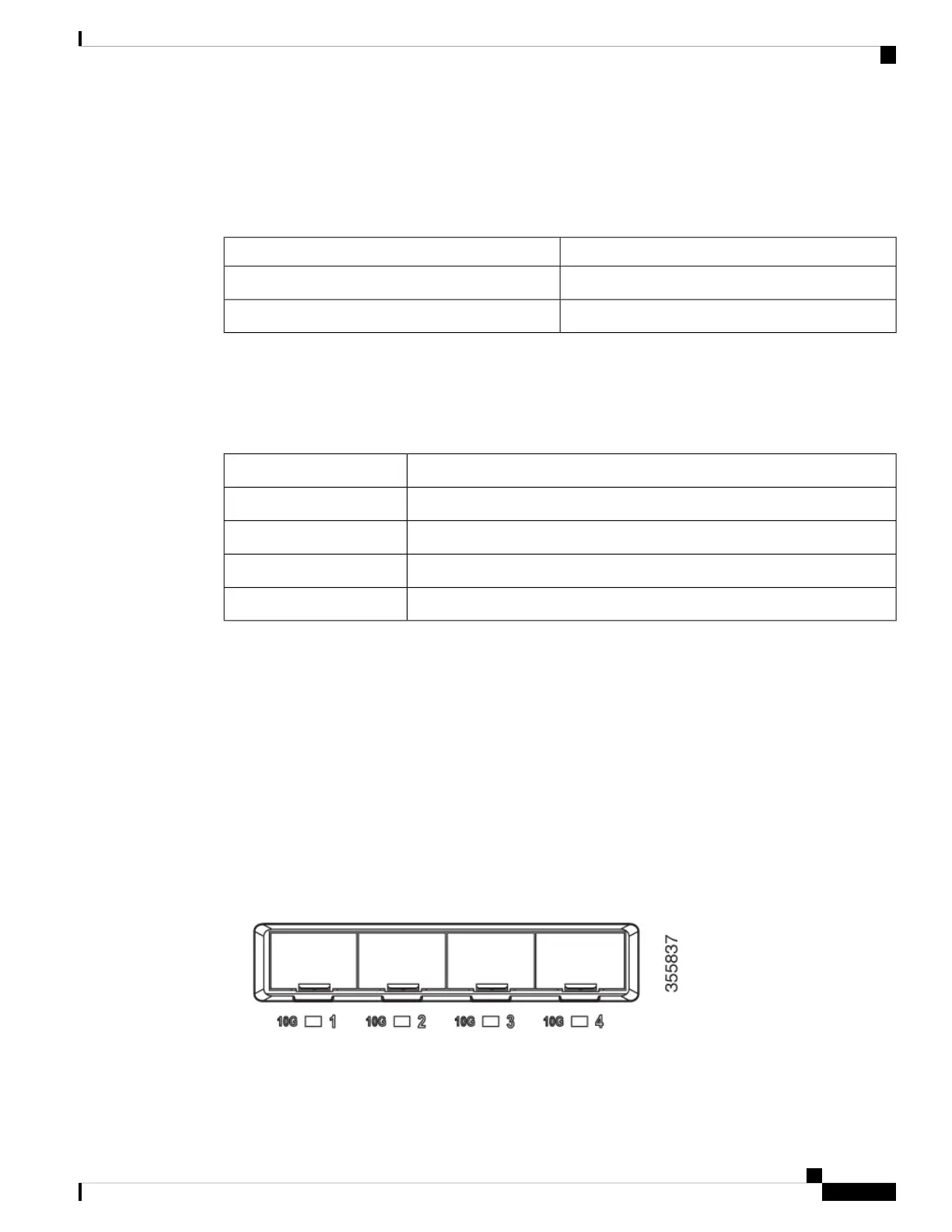

Figure 48: SFP+ Port LEDs
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
81
Switch LEDs
RJ-45 Console Port LED

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
