• To prevent ESD damage, follow your normal board and component handling procedures when connecting
cables to the switch and other devices.
• When you insert several SFP/SFP+ modules in multiple switch ports, wait for 5 seconds between inserting
each SFP/SFP+. This will prevent the ports from going into error disabled mode. Similarly, when you
remove an SFP/SFP+ from a port, wait for 5 seconds before reinserting it.
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Step 2 Find the send (TX) and receive (RX) markings that identify the top of the SFP/SFP+ module.
On some SFP/SFP+ modules, the send and receive (TX and RX) markings might be shown by arrows that
show the direction of the connection.
Step 3 If the SFP/SFP+ module has a bale-clasp latch, move it to the open, unlocked position.
Step 4 Align the module in front of the slot opening, and push until you feel the connector snap into place.

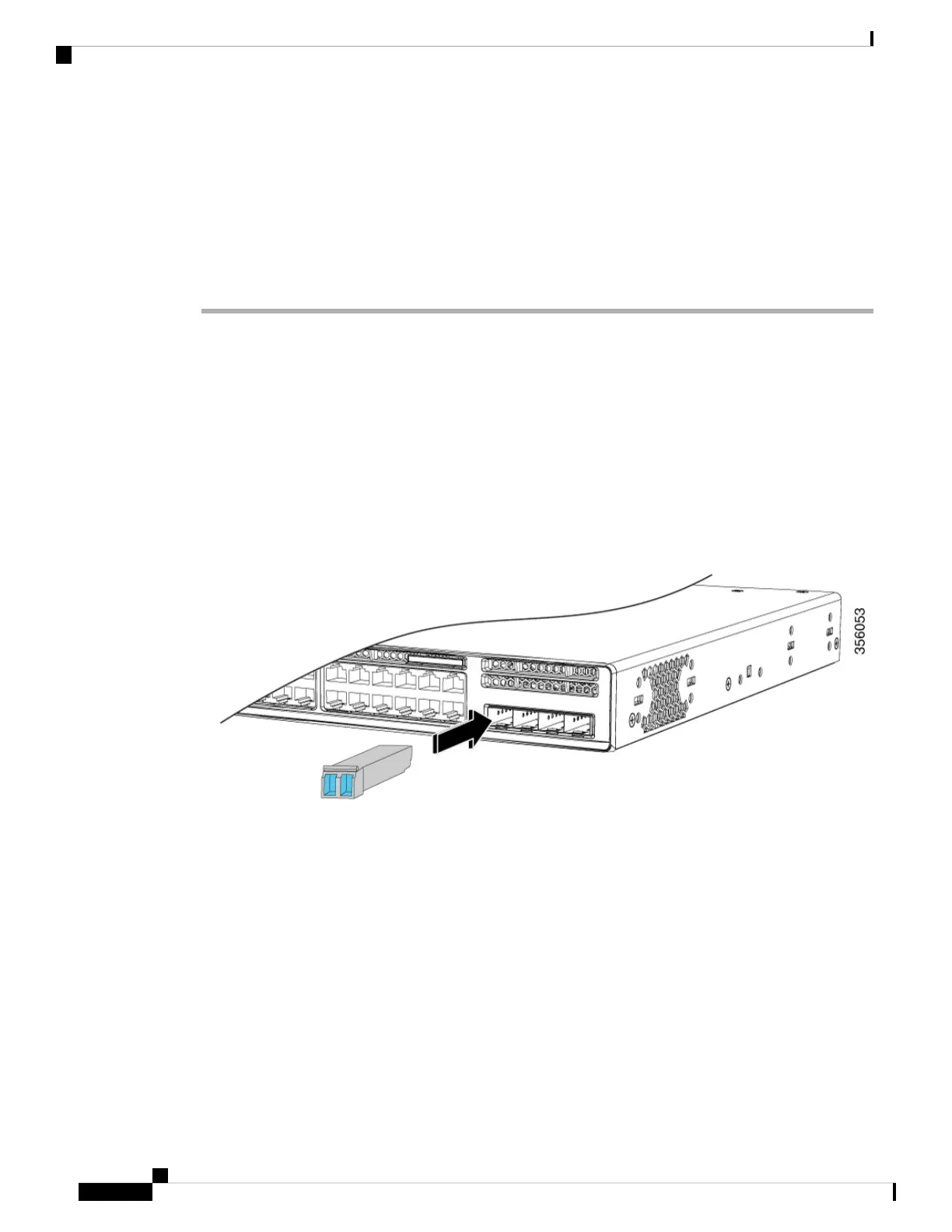

Figure 23: Installing an SFP Module in the Network Module
Step 5 If the module has a bale-clasp latch, close it to lock the SFP/SFP+ module in place.
Step 6 Remove the SFP/SFP+ dust plugs and save.
Step 7 Connect the SFP/SFP+ cables.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
36
Installing a Network Module
Installing SFP/SFP+ Modules

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
