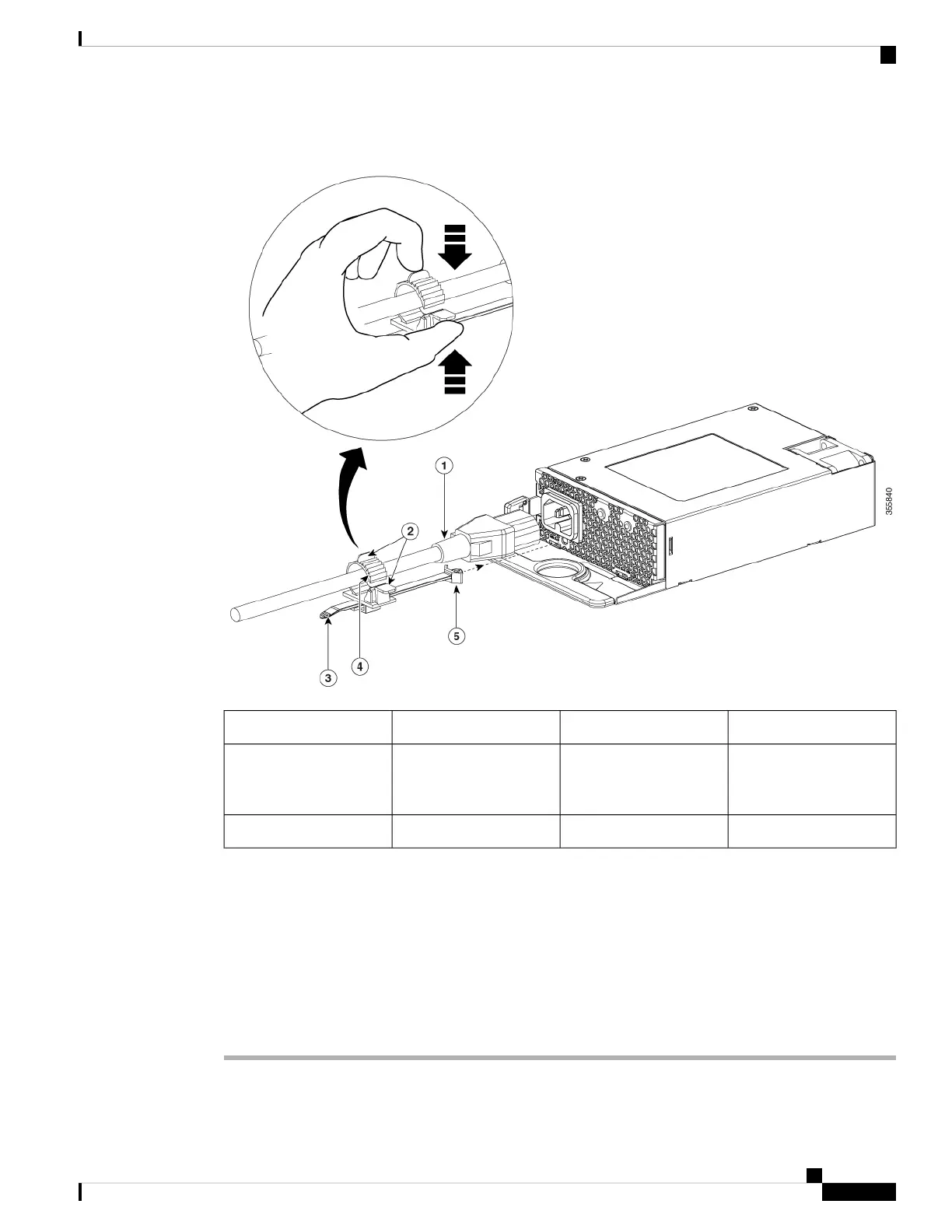

Figure 30: AC-Power Supply with Power Cord Retainer
Retainer clamp4Power cord1
The strap end that is fixed
to the power supply
module
5Tabs on the retainer clamp2
--Power cord retainer strip3
a) Fix the strap in the power cord retainer to the power supply module, to hold the clamp in place.
b) Slide the retainer clamp around the AC power cord and position the retainer closest to the power supply.
Depending on the width of the power cord, adjust the size of the retainer clamp, if required.
Note
c) Press the tabs on the retainer clamp towards each other to secure the AC power cord.
Step 7 Connect the power cord to the power supply and to an AC power outlet. Turn on the power at the power
source.
Step 8 Confirm that the power supply AC OK and PS OK LED are green.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
45
Installing a Power Supply Unit
Installing or Replacing an AC Power Supply Module

Cisco Catalyst 9200 Series Specifications

General

Category	Switch
Stacking Bandwidth	160 Gbps
Layer	Layer 2 and Layer 3
Operating System	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Series	Cisco Catalyst 9200 Series
Ports	24 or 48 Ethernet ports
Switching Capacity	Up to 176 Gbps
PoE	PoE, PoE+, and UPOE
Stacking	StackWise-160
Memory	4 GB DRAM, 4 GB Flash
Network Management	Cisco DNA Center, WebUI, CLI
Security Features	802.1X, TrustSec, MACsec
Warranty	Limited Lifetime Warranty
Dimensions	1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm)
