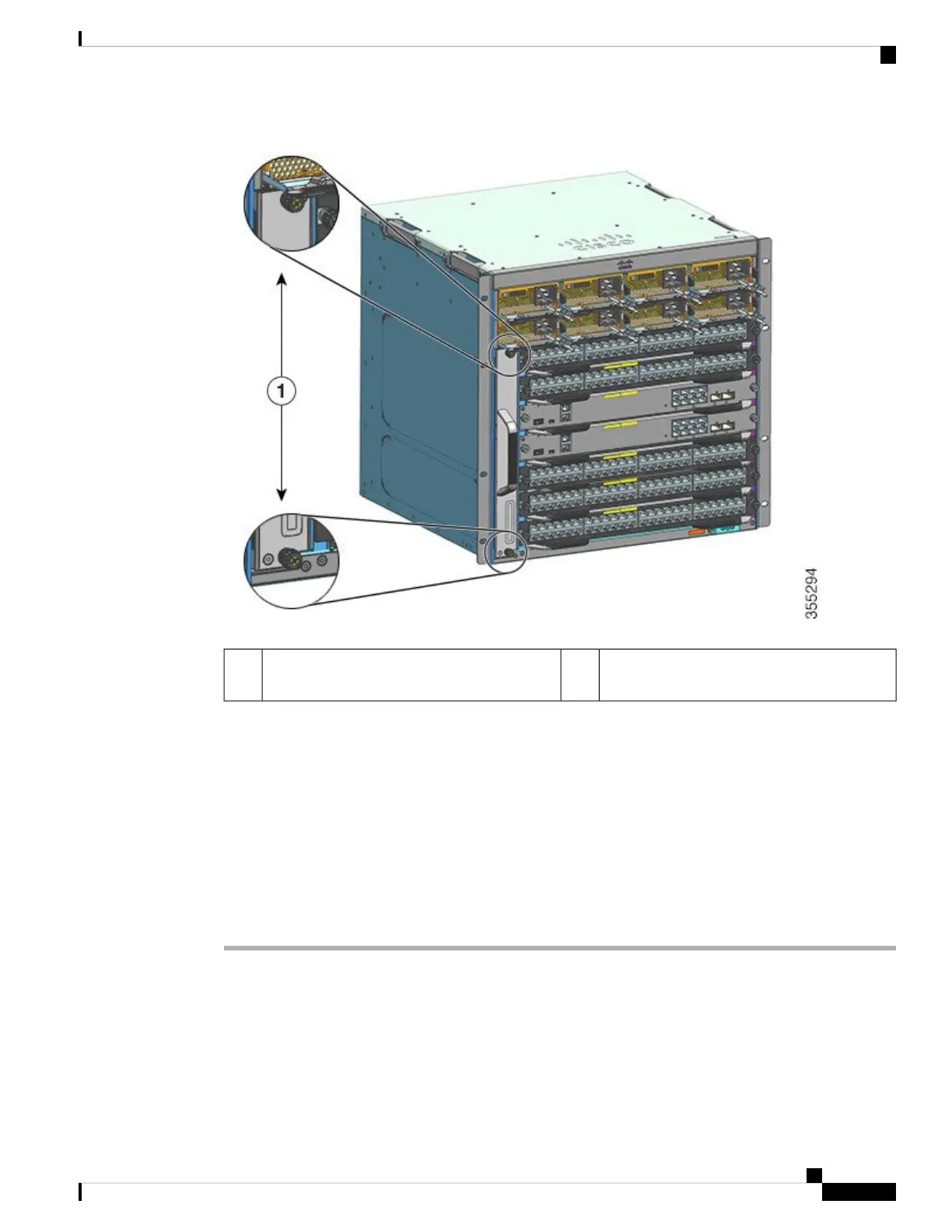

--Captive installation screws on the front panel
of the fan tray in the chassis
1
Step 4 Grasp the fan tray handle and pull it out only partially (0.25 inches), to unmate the connector and unseat it
from the backplane. After unmating the connector, allow three seconds to let the fan blades stop spinning
completely.
When unmating the connector, gently move the fan tray from side to side, if necessary. The fans are equipped
with a braking mechanism that fully stop the blades within three seconds of being de-energized (You will not
be able to visualy inspect the fan to see whether the blades are spinning or not).
Step 5 Place your other hand underneath to support the bottom of the fan tray and then slide it out of the bay
completely.
Only the fan tray is removed from the chassis (excluding the adapter).
What to do next
Set the removed fan tray aside and immediately proceed with installing the replacement or spare fan tray.
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
89
Removing and Replacing FRUs
Removing a Fan Tray from the Front

Cisco Catalyst 9400 Series Specifications

General

Series	Catalyst 9400 Series
Form Factor	Rack-mountable
Operating System	Cisco IOS XE
Uplink Options	40G and 100G uplinks
Stacking	Not supported
Layer Support	Layer 2 and Layer 3
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 90% noncondensing
Power Supply Options	AC and DC power supplies
Redundancy	Power supply, supervisor engine
Modular Slots	7 or 10
MAC Address Table Size	256, 000
Security Features	ACLs, TrustSec, MACsec
Management	CLI, SNMP, NETCONF, RESTCONF, Cisco DNA Center
