Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features

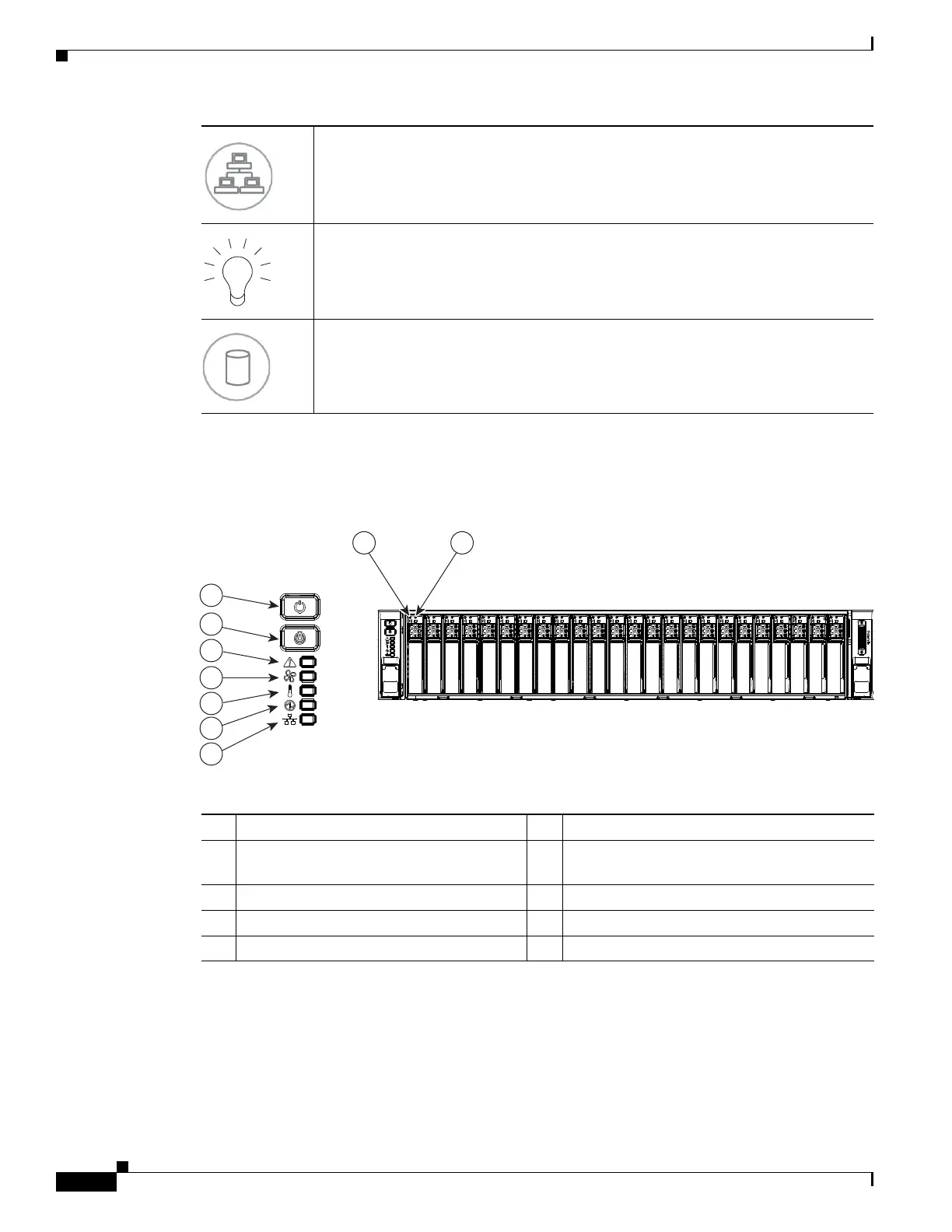

Figure 1-47 shows the location of the CDE280 front panel control buttons and LEDs. Table 1-50 defines
the LED states.
Figure 1-47 CDE280 Front View Control Buttons and LEDs
NIC2—Indicates network activity on GLAN2 when flashing.
Power—Indicates power is being supplied to the system’s power supply units. This
LED should be illuminated when the system is operating.
HD—Indicates IDE channel activity on SAS or SATA drive or DVD-ROM drive
activity when flashing.
2
204233
204236
204235
1 Hard drive fault LED (on each drive tray) 6 Fan status LED
2 Hard drive activity LED (on each drive
tray)
7 Temperature status LED
3 Power button/power status LED 8 Power supply status LED
4 Unit Identification button/LED 9 Network link activity LED
5 System status LED
6
7
8
9
5
4
3
HDD01
HDD02
HDD03 HDD04 HDD05 HDD06 HDD07 HDD08
HDD09
HDD10 HDD11
HDD12
HDD13
HDD14 HDD15 HDD16
HDD17
HDD18 HDD19 HDD20
HDD21
HDD22 HDD23 HDD24
1 2
