Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Appendix B Connector Pin Assignments
Cable Pin Assignments
Note If you are using a TenGigabit network interface, you must use the Intel Transceiver Twinax
cable.
Cable Pin Assignments

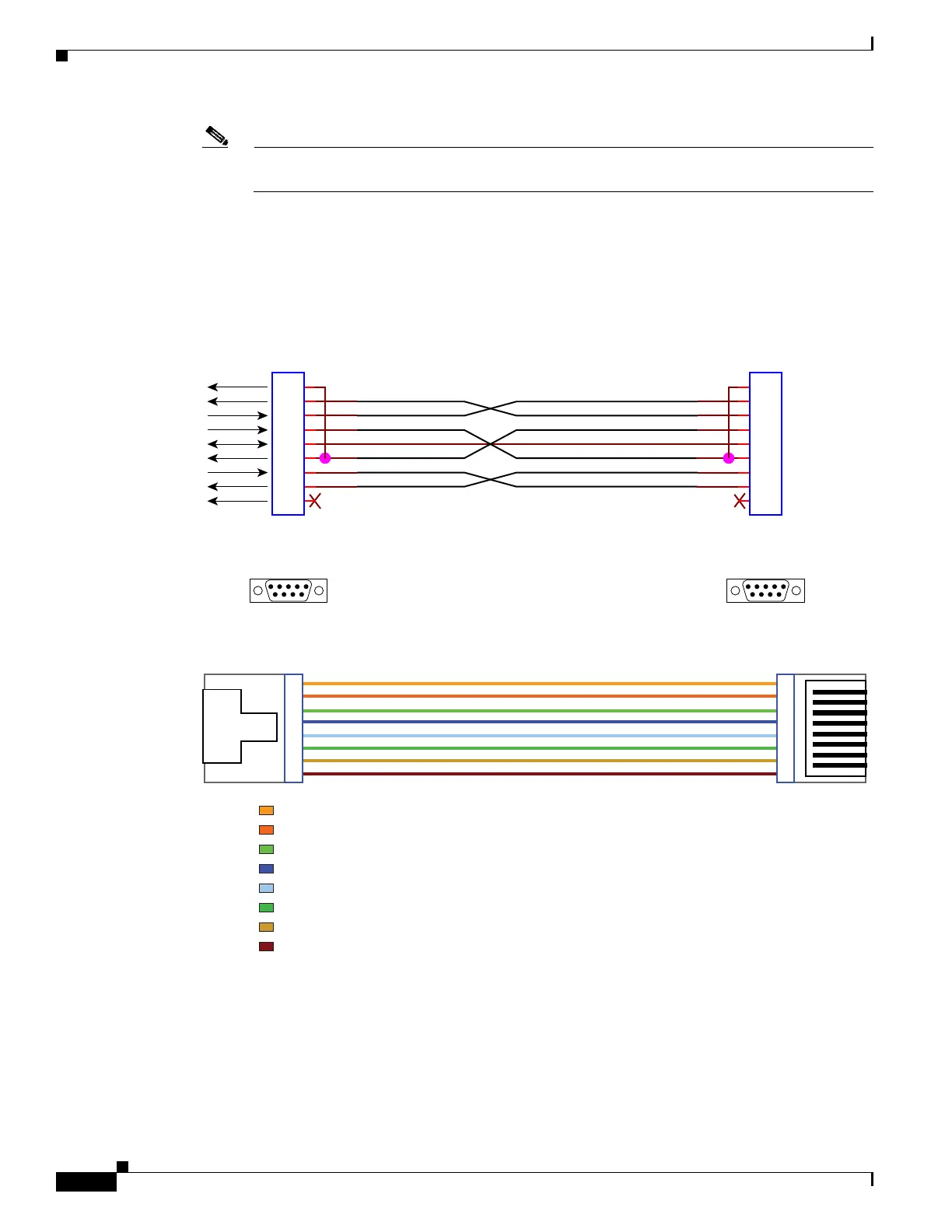

Figure B-4 through Figure B-6 show the pin assignments for the cable connection for an RS-232 null
modem, RJ-45 straight-through cable, and RJ-45 crossover cable, respectively
.
Figure B-4 Pin Assignments for RS-232 Null Modem
.
Figure B-5 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable
RXD
TXD
GND
DB-9 (Female)
End view
51
96
DB-9 (Female)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
TO HOST
COMPUTE
R
211777
End view
51
96
211778
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Brown
White/Brown
White/Blue
White/Green
White/Orange
Orange
Blue
Green
