11 KVMconnector (for USB/VGA connection)
Rear View
Below is an illustration of the unit's rear view and a list of the LEDs and components available.

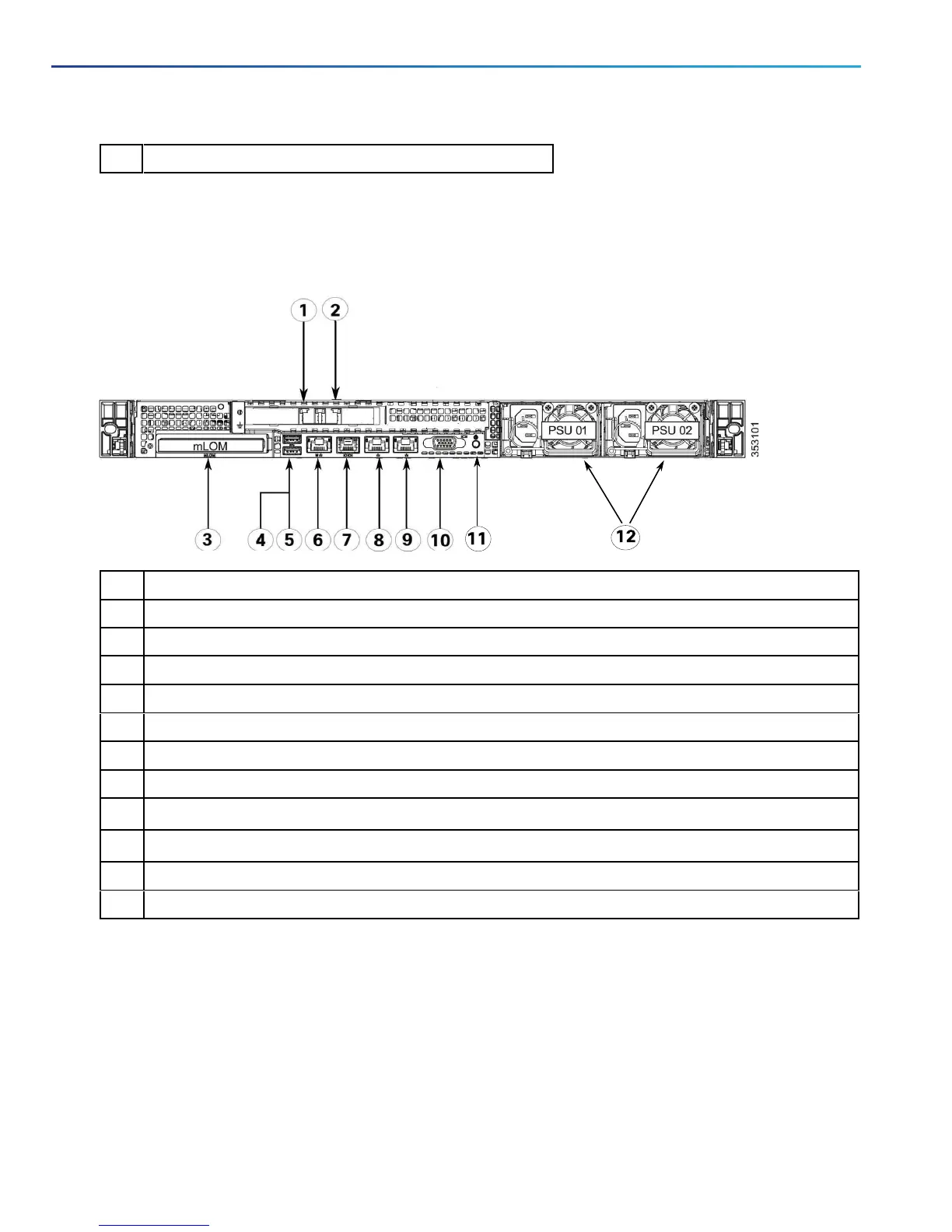

Figure 4 Rear View of the Cisco Expressway Unit
1 LAN 1
2 LAN 2
3 Modular LAN-on-motherboard (mLOM) card slot
4 USB 3.0 port
5 USB 3.0 ports
6 1-Gb Ethernet dedicated management port
7 Serial port (RJ-45 connector)
8 LAN 3
9
LAN 4
10
VGA video connector
11 Rear unit identification button/LED
12 Power supplies (up to two, redundant as 1+1)
Definitions of LEDStates
For the definitions of the LED states see http://www.cisco.com/c/en/us/td/docs/unified_
computing/ucs/c/hw/C220M4/install/C220M4/replace.html.
Reset from the Internal Recovery Partition (IRP)
The Cisco Expressway CE1100 appliance comes pre-installed with an SD card that you can use to complete a
reinstall of your configuration. You must reset the SD card and enable the virtual drive before proceeding with the
reinstall using the KVM console in the Cisco Integrated Management Controller (CIMC). Once the reset has been
complete, ensure that you disable the virtual drive again.
16
Cisco Expressway CE1100 Appliance Installation Guide
Troubleshooting
