Procedure
Step 1 Install the chassis. See the hardware installation guide.
Step 2 Connect the outside interface (for example, Ethernet 1/1) to your outside router.
Step 3 Connect the inside interface (for example, Ethernet 1/2) to your inside switch or router.
Step 4 Connect other networks to the remaining interfaces.
Step 5 Connect the management computer to the console port or the Ethernet 1/2 interface.
If you perform intial setup using the CLI, you will need to connect to the console port. The console port may
also be required for troubleshooting purposes. If you perform initial setup using the device manager, connect
to the Ethernet 1/2 interface.
Power on the Firewall
The power switch is located to the left of power supply module 1 on the rear of the chassis. It is a toggle
switch that controls power to the system. If the power switch is in standby position, only the 3.3-V standby
power is enabled from the power supply module and the 12-V main power is OFF. When the switch is in the
ON position, the 12-V main power is turned on and the system boots.
The first time you boot up the threat defense, initialization can take approximately 15 to 30 minutes.
Note
Before you begin
It's important that you provide reliable power for your device (for example, using an uninterruptable power
supply (UPS)). Loss of power without first shutting down can cause serious file system damage. There are
many processes running in the background all the time, and losing power does not allow the graceful shutdown
of your system.
Procedure
Step 1 Attach the power cord to the device and connect it to an electrical outlet.
Step 2 Press the power switch on the back of the device.

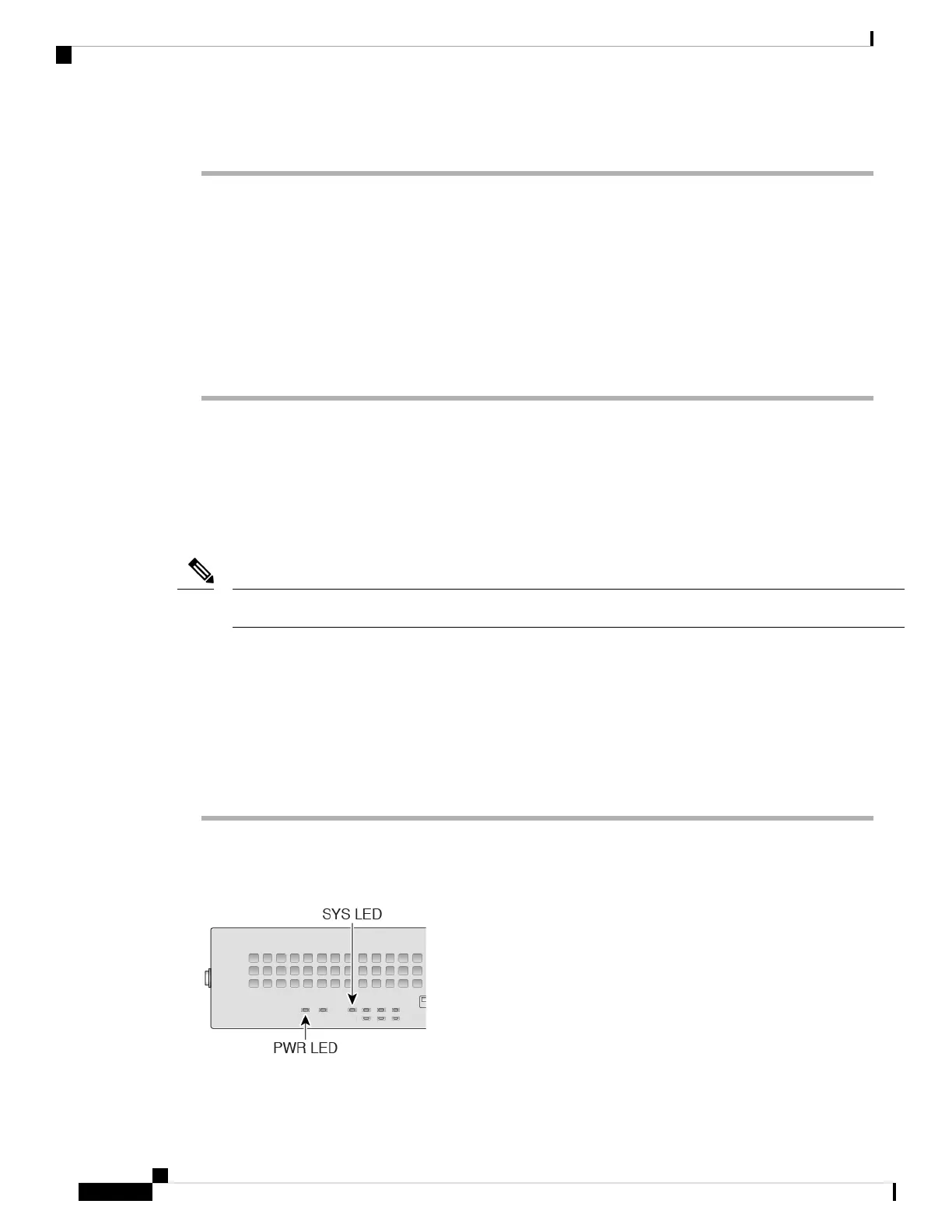

Step 3 Check the PWR LED on the front of the device; if it is solid green, the device is powered on.
Cisco Firepower 2100 Getting Started Guide
140
Threat Defense Deployment with CDO
Power on the Firewall
