44
Figure 21 AC/DC Power Input Terminal Block Wire Connections to a DC Source
Warning: An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that
no exposed portion of the DC-input power source wire extends from the power and relay connector. Statement 122
7. Insert the twisted-pair wire leads into the terminal block line and neutral connections.
8. Insert the wire (labeled number 1 in Figure 21 on page 44) lead into the neutral wire connection and the wire (labeled
number 2 in Figure 21 on page 44) lead into the line wire connection.
Ensure that only wire with insulation extends from the connectors. See Figure 21 on page 44.
9. Tighten the line and neutral terminal block screws to 8 in.-lb torque.
note: Do not exceed 10 in-lb torque.
10. Connect the red wire to the positive pole of the DC power source, and connect the black wire to the return pole.
Ensure that each pole has a current-limiting-type fuse rated to at least 600 VAC/DC (such as the KLKD Midget fuse).
Wiring the DC Power Source
Read these cautions and warnings before wiring the switch the DC power source.
Caution: This product is intended to be supplied by a Listed Class 2 power source marked with Class 2 and rated from
9.6V to 60VDC, 2.1A.
Warning: A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Warning: This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: 3A. Statement 1005
Warning: Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning: Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003

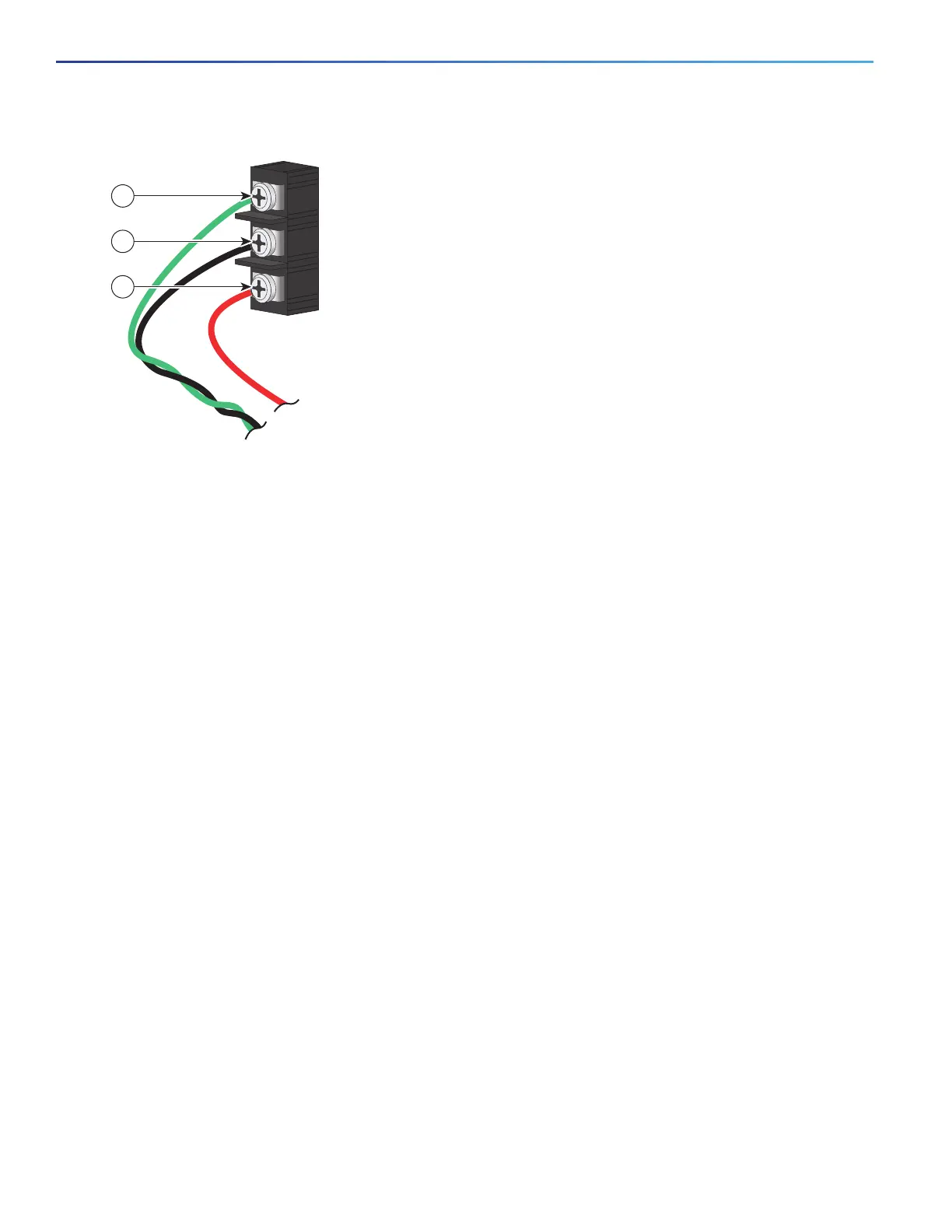

1 Earth ground wire connection 3 Positive DC connection
2 Return wire connection (to DC return)
