SFP Module Connectors

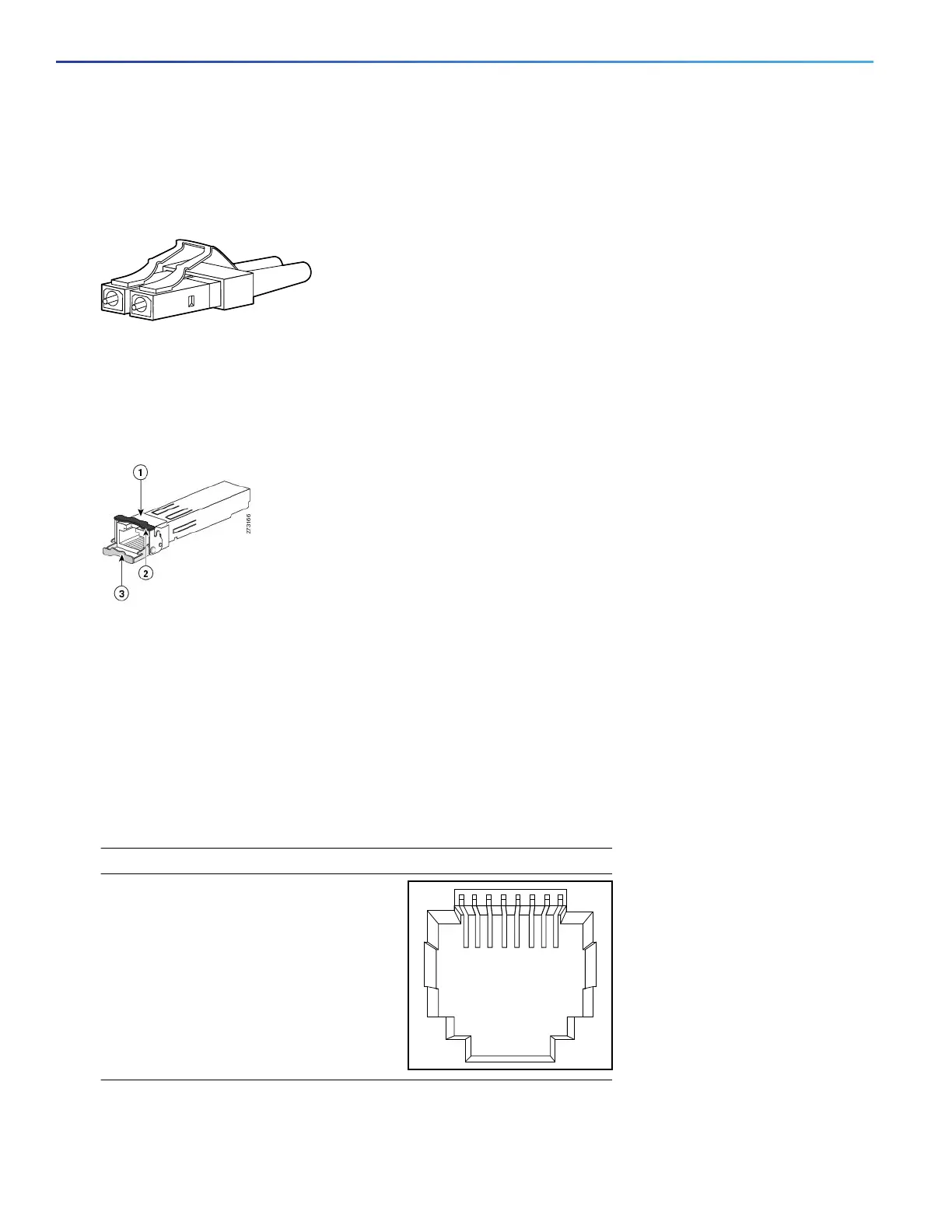

Figure 47 on page 86 shows the MT-RJ SFP module fiber-optic local connector (LC).
Figure 47 Fiber-Optic SFP Module LC Connector
Warning: Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams
or view directly with optical instruments. Statement 1051
Figure 48 on page 86 shows the 1000BASE-T SFP module RJ-45 connector.
Figure 48 1000BASE-T SFP Module Connector
Dual-Purpose Ports
The 10/100/1000 Ethernet ports on the dual-purpose ports use RJ-45 connectors. Figure 49 on page 86 shows the
pinouts.
Figure 49 10/100/1000 Port Pinouts
1 RJ-45 connector 3 Bale-clasp latching mechanism in the open
(unlocked) position
2 Bale-clasp latching mechanism in the closed
(locked) position
60915
2 31 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
