Cisco IE 2000 User Manual

97

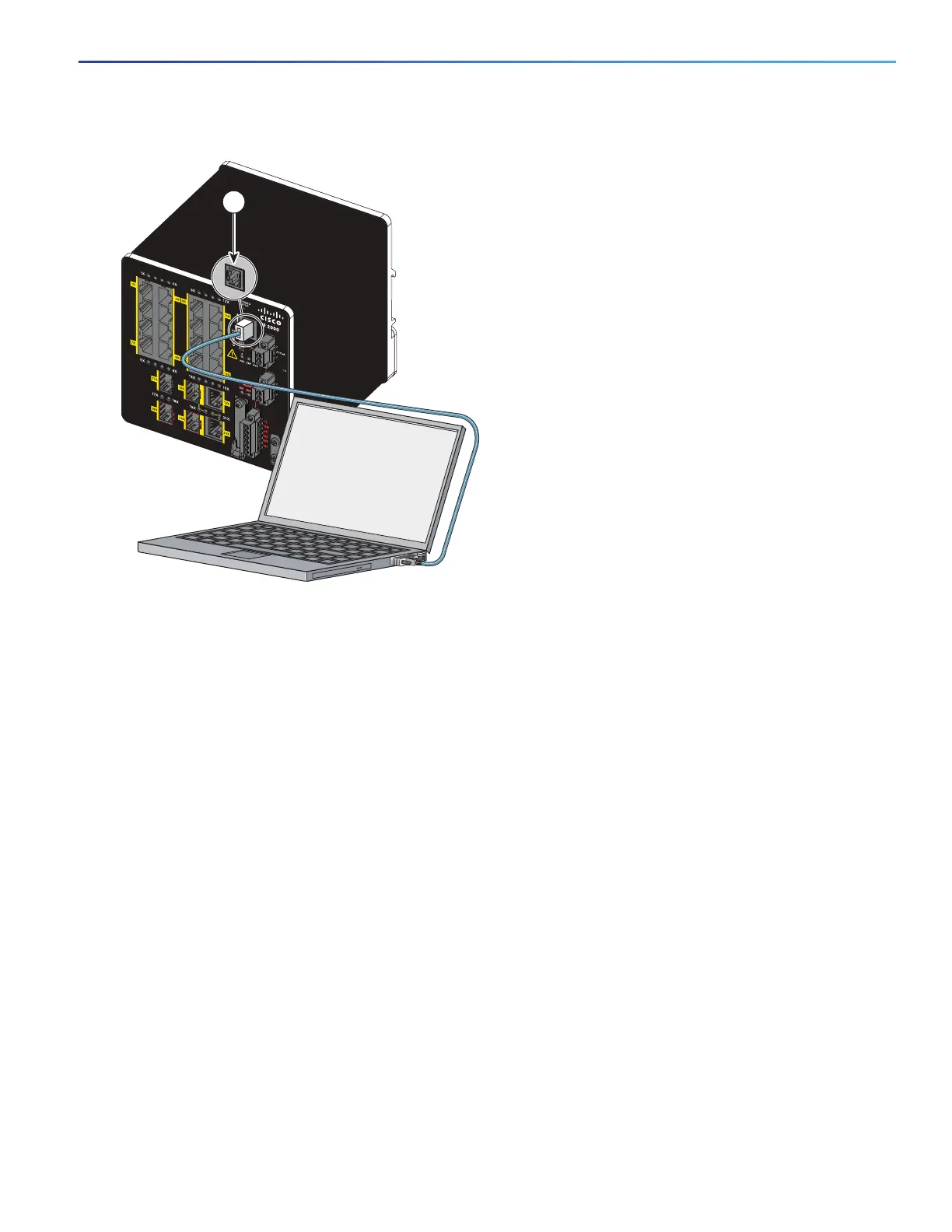

Figure 58 Connecting the Console Cable
3. Configure the baud rate and character format of the PC or terminal to match the console port characteristics:
— 9600 baud
— 8 data bits
— 1 stop bit
— No parity
— None (flow control)
4. Connect power to the switch as described in Connecting to Power, page 37.
The PC or terminal displays the bootloader sequence.
5. Press Enter to display the setup prompt.
6. Follow the steps in the Completing the Setup Program, page 100.
USB Mini-Type B Console Port
1. If you are connecting the switch USB-mini console port to a Windows-based PC for the first time, install a USB driver.
See Installing the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Device Driver, page 99 for more
information.
1 RJ-45 console port 2 Console cable (RJ-45-to-DB-9 adapter cable)
