Cisco IE 3000 Hardware Installation Guide

2-11
Cisco IE 3000 Switch Hardware Installation Guide
Chapter 2 Switch Installation
Adding Modules to the Switch
Step 3 Push up the upper module latches (at the top of the switch and the expansion module). See Figure 2-4.
Push down the lower module latches (at the bottom of the switch and the expansion module).

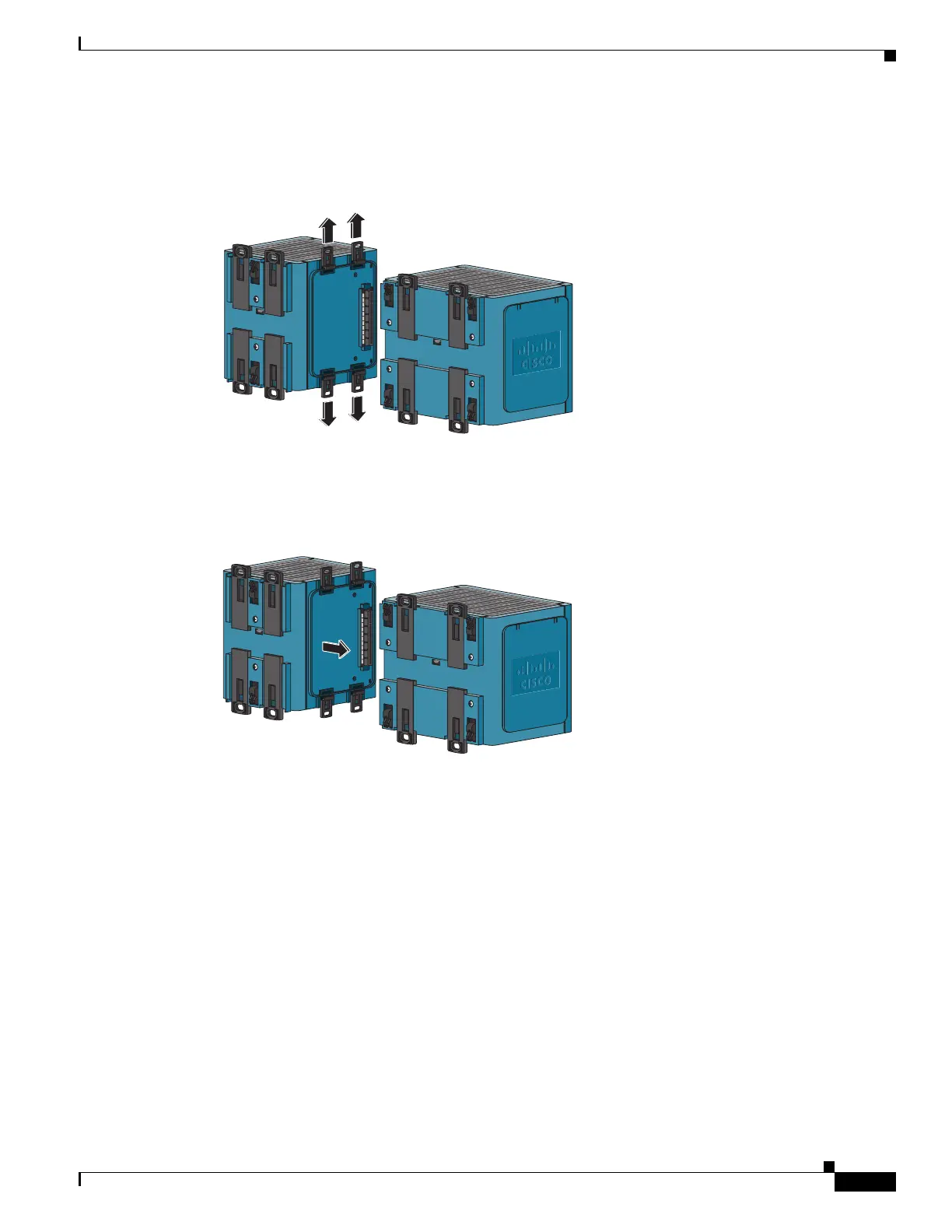

Figure 2-4 Pushing the Module Latches Up
Step 4 Align the connectors on the switch and the module, and slide the switch and the module together to make
the connection. See Figure 2-5.
Figure 2-5 Connecting the Switch and the Module
Step 5
Push the upper module latches down and the lower latches up. See Figure 2-6.
201824
201825
