Cisco IE 3000 Hardware Installation Guide

2-32
Cisco IE 3000 Switch Hardware Installation Guide
Chapter 2 Switch Installation
Installing the Switch
Step 1 If the DIN rail latches are pushed out, push in the DIN rail latches. See Figure 2-23.

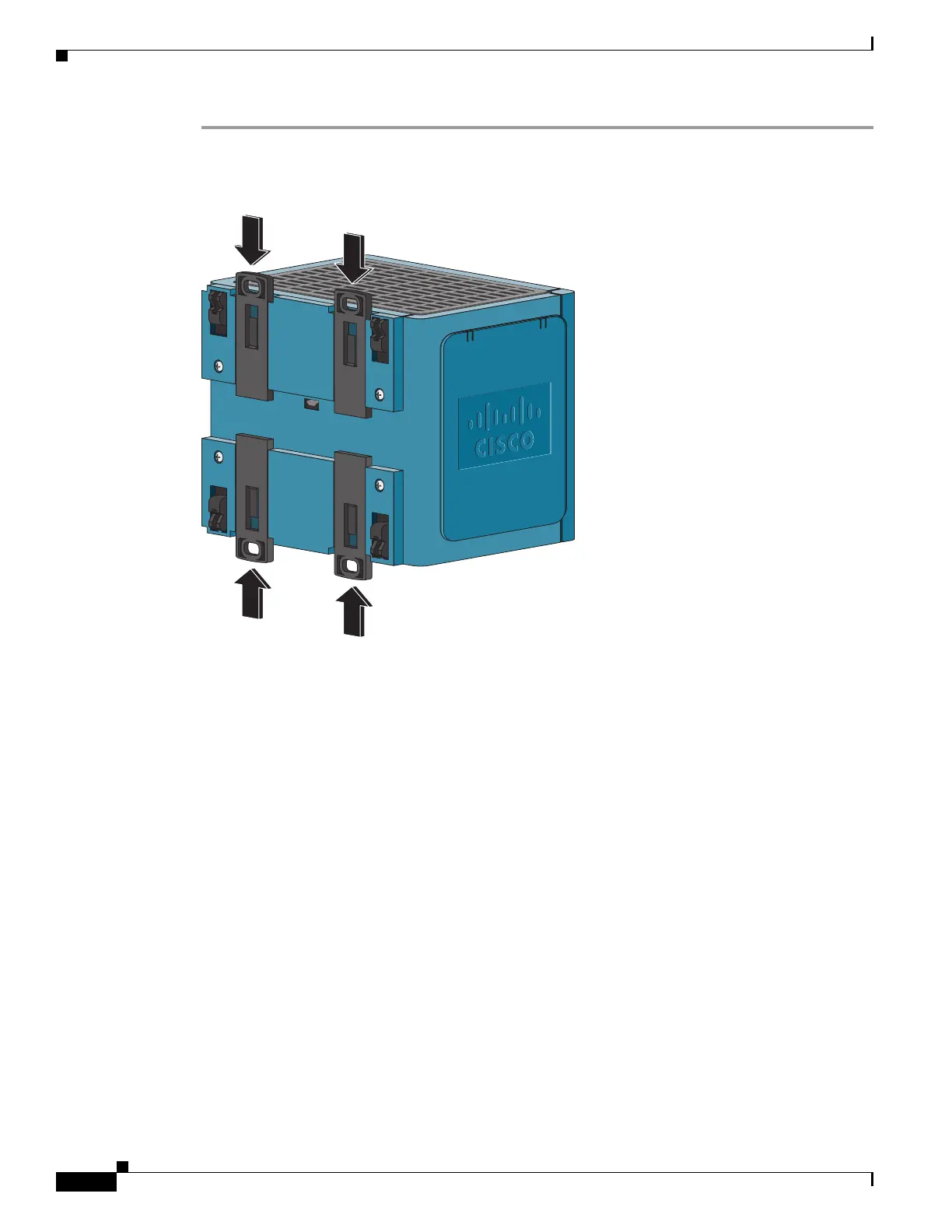

Figure 2-23 Pushing the DIN Rail Latches In
202370

Cisco IE 3000 Specifications

General

Operating Temperature	-40 to 75°C (-40 to 167°F)
DRAM	128 MB
Flash Memory	32 MB
Uplink Ports	2 x 10/100/1000Base-T or SFP
MAC Address Table Size	8000
Mounting	DIN rail, Wall
