Chapter 5 Configuring Zones and Zone Sets
Creating Zone Sets
To create zone sets, follow these steps:
Step 1 Click Zone > Edit Local Full Zone Database from the Zone menu or right-click a VSAN folder in the
Logical tab and choose Edit Local Full Zone Database from the pop-up menu.
Step 2 Select a VSAN and click OK.
You see the VSAN you selected in the Edit Local Full Zone Database window.
Step 3 Right-click the Zonesets folder in the Edit Local Full Zone Database dialog box for that VSAN and
select Insert to add a zone set (see Figure 5-6).

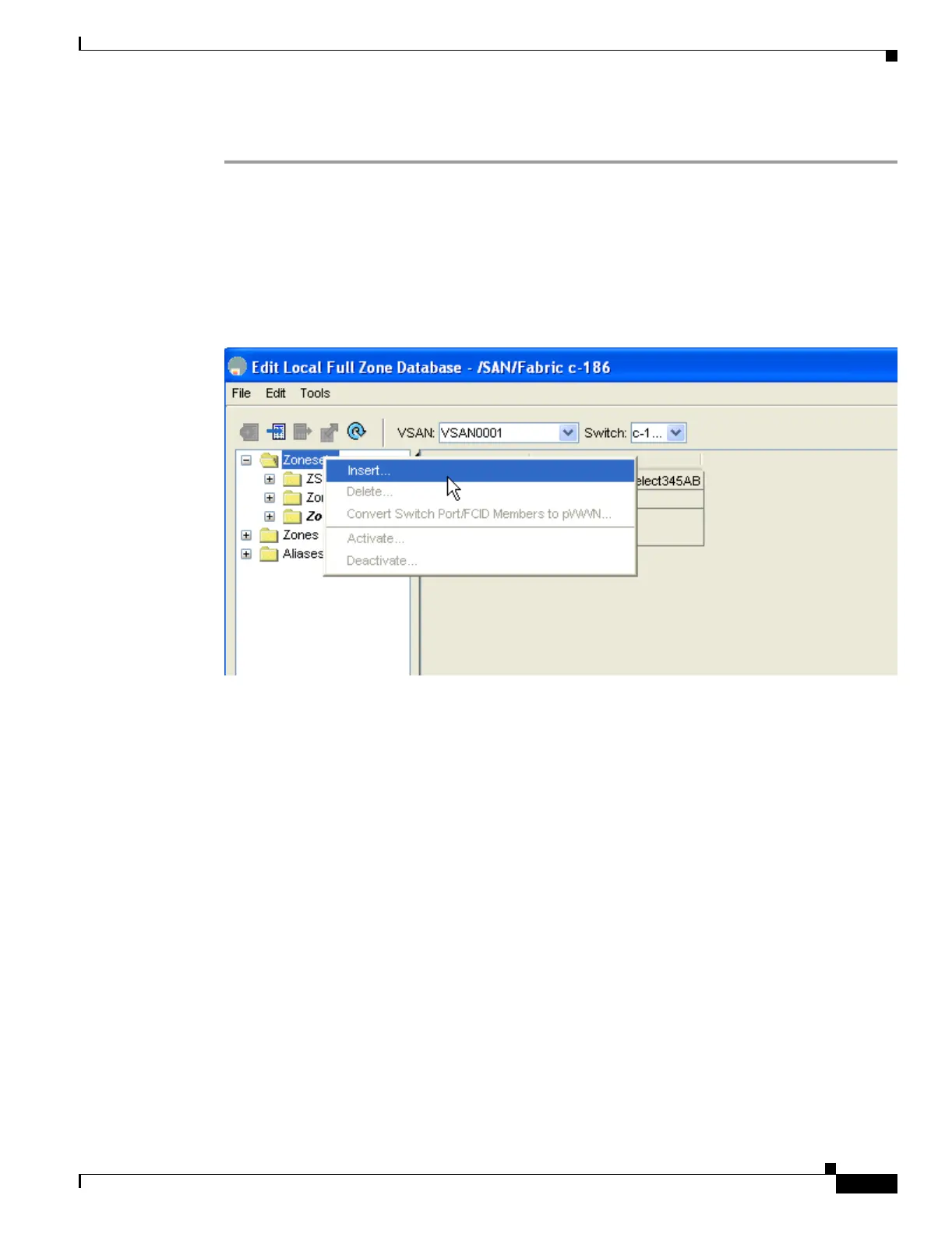

Figure 5-6 Insert a new zone set
Step 4
Assign a name to the new zone set.
Step 5 In the left pane, drag and drop zones into the zone set (see Figure 5-7).
