Cisco Nexus 9348GC-FXP NX-OS User Manual

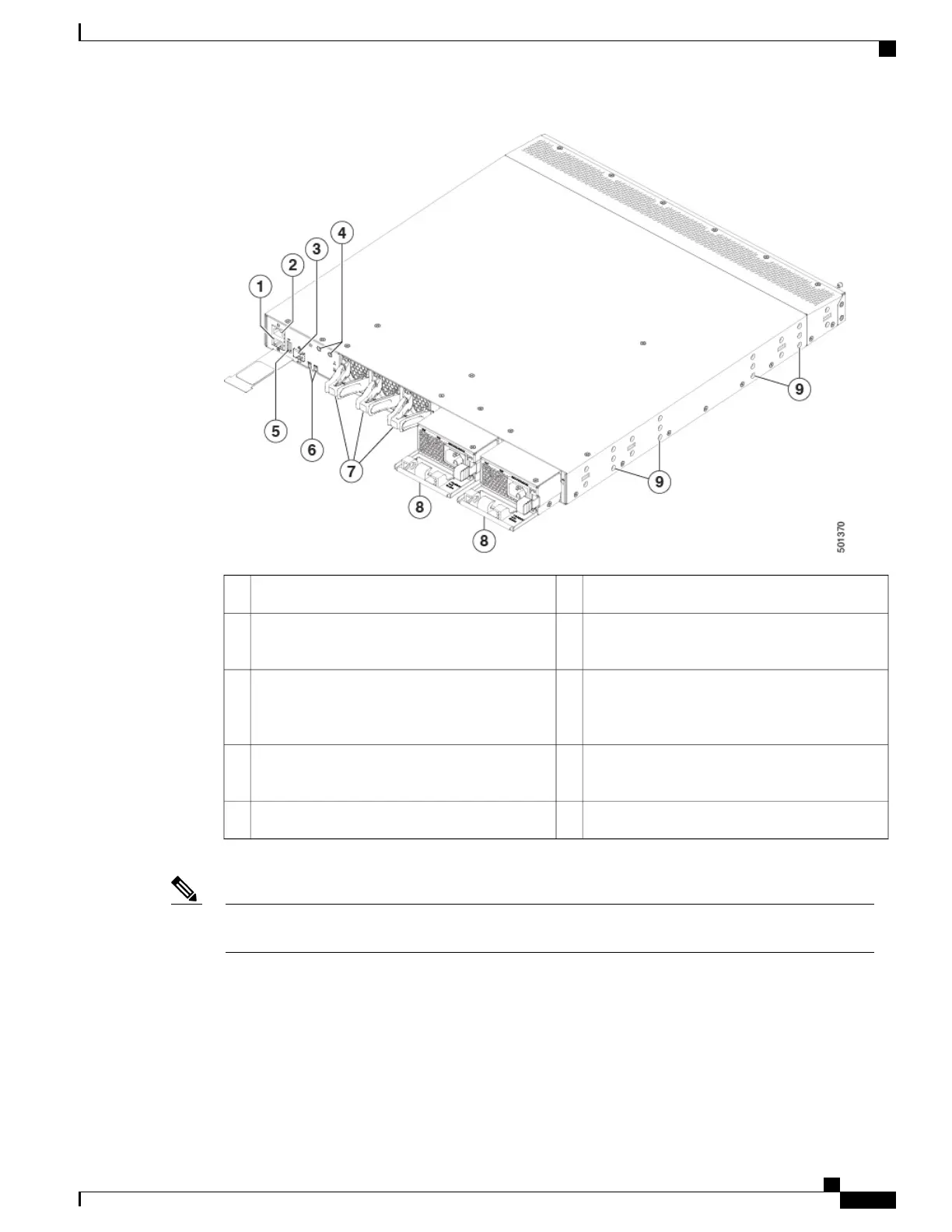

Chassis LEDs (Beacon [BCN] and Status [STS])6Management port (RJ-45 port)1
Fan module (3) with fan slot 1 on the left and
fan slot 3 on the right
7Console port (RS-232 port)2
Power supply (2) one used for operations and
one used for redundancy, with power supply slot
1 on the left and slot 2 on the right
8Management port (SFP port)3
Screw holes (6) for attaching rack mounting
brackets
9Grounding pad4
USB port5
USB support is limited to USB 2.0 devices that use less than 2.5 W (less than 0.5 A inclusive of surge
current). Devices, such as external hard drives, that instantaneously draw more than 0.5 A are not supported.
Note
Depending on whether you plan to position the ports in a hot or cold aisle, you can order the fan and power
supply modules with port-side intake or port-side exhaust airflow. To determine the airflow direction of the
modules installed in your switch, see the following table.
Cisco Nexus 9348GC-FXP NX-OS Mode Hardware Installation Guide
3
Overview

Cisco Nexus 9348GC-FXP NX-OS Specifications

General

Product Model	Nexus 9348GC-FXP
Switch Type	Fixed
Form Factor	1 RU
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Operating System	Cisco NX-OS
Memory	16 GB
Flash Memory	16 GB
VLANs	4096
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Humidity	5 to 95% noncondensing
Layer Support	Layer 2, Layer 3
Power Supply	Dual hot-swappable power supplies
Buffer Size	12 MB
Input Voltage	100-240 VAC
Dimensions (H x W x D)	1.72 x 17.3 x 18.1 in (4.4 x 43.9 x 46.0 cm)
DC Power Input	-40 to -72 VDC
Ports	48 x 1/10/25-Gbps and 4 x 40/100-Gbps
