c) Holding the chassis level, insert two screws (12-24 or 10-32, depending on the rack type) in each of the two front
rack-mount brackets (using a total of four screws) and into the cage nuts or threaded holes in the vertical rack-mounting
rails (see the following figure).

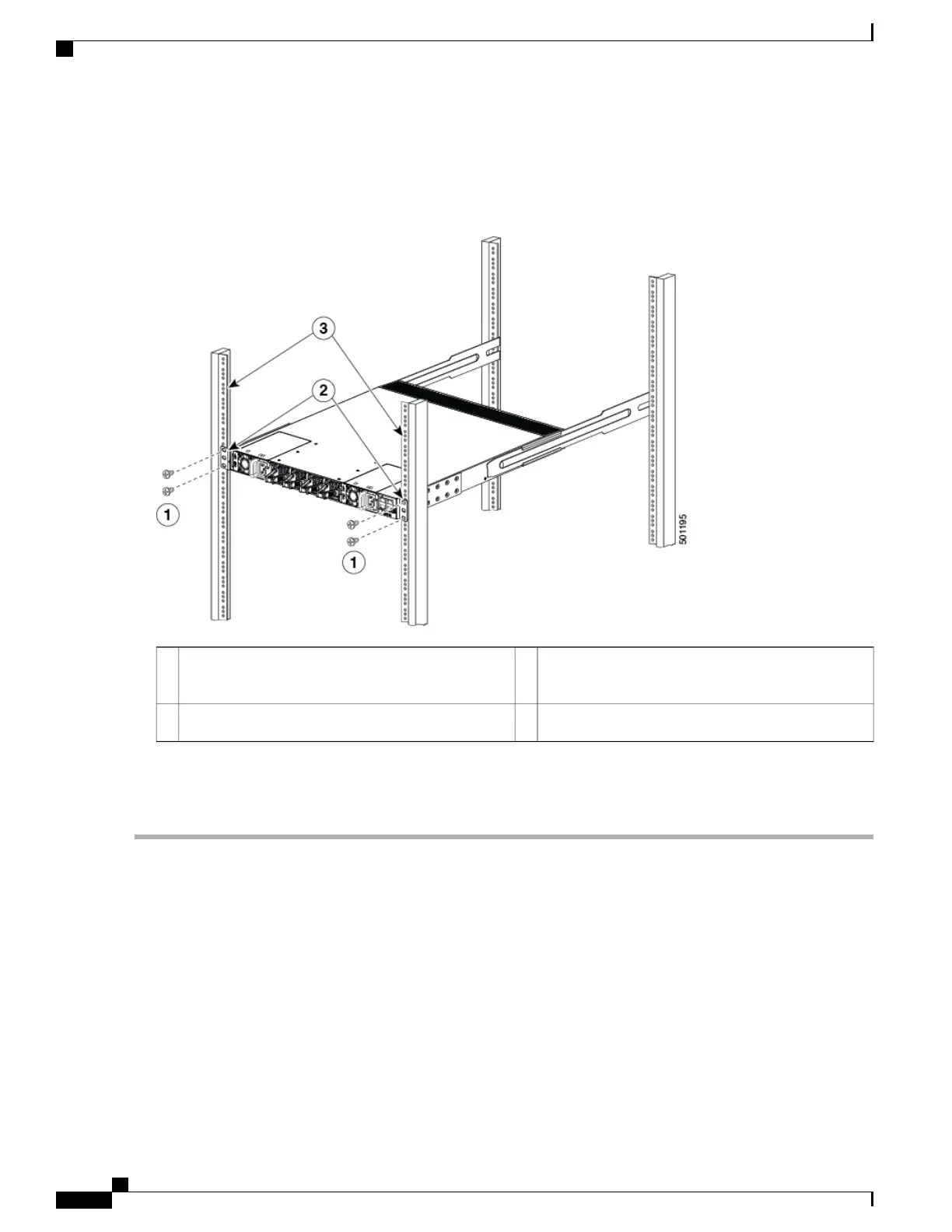

Mounting rails on rack or cabinet posts.3Fasten the chassis to the front of the rack with two
12-24 or 10-32 screws on each side.
1
Front-mount bracket.2
d) Tighten the 10-32 screws to 20 in-lb (2.26 N·m) or tighten the 12-24 screws to 30 in-lb (3.39 N·m).
Step 6
If you attached a grounding wire to the chassis grounding pad, connect the other end of the wire to the facility ground.
Installing the Switch into a Two-post Rack
To install the switch, you must attach mounting brackets to the switch and secure the switch to the rack.
Installation in racks other than 19-inch racks requires a bracket kit not included with the switch.
The following figure shows the standard 19-inch mounting brackets.
Cisco Nexus 9348GC-FXP NX-OS Mode Hardware Installation Guide
24
Installing the Switch Chassis
Installing the Switch into a Two-post Rack

Cisco Nexus 9348GC-FXP NX-OS Specifications

General

Product Model	Nexus 9348GC-FXP
Switch Type	Fixed
Form Factor	1 RU
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Operating System	Cisco NX-OS
Memory	16 GB
Flash Memory	16 GB
VLANs	4096
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 158°F (-40 to 70°C)
Humidity	5 to 95% noncondensing
Layer Support	Layer 2, Layer 3
Power Supply	Dual hot-swappable power supplies
Buffer Size	12 MB
Input Voltage	100-240 VAC
Dimensions (H x W x D)	1.72 x 17.3 x 18.1 in (4.4 x 43.9 x 46.0 cm)
DC Power Input	-40 to -72 VDC
Ports	48 x 1/10/25-Gbps and 4 x 40/100-Gbps
