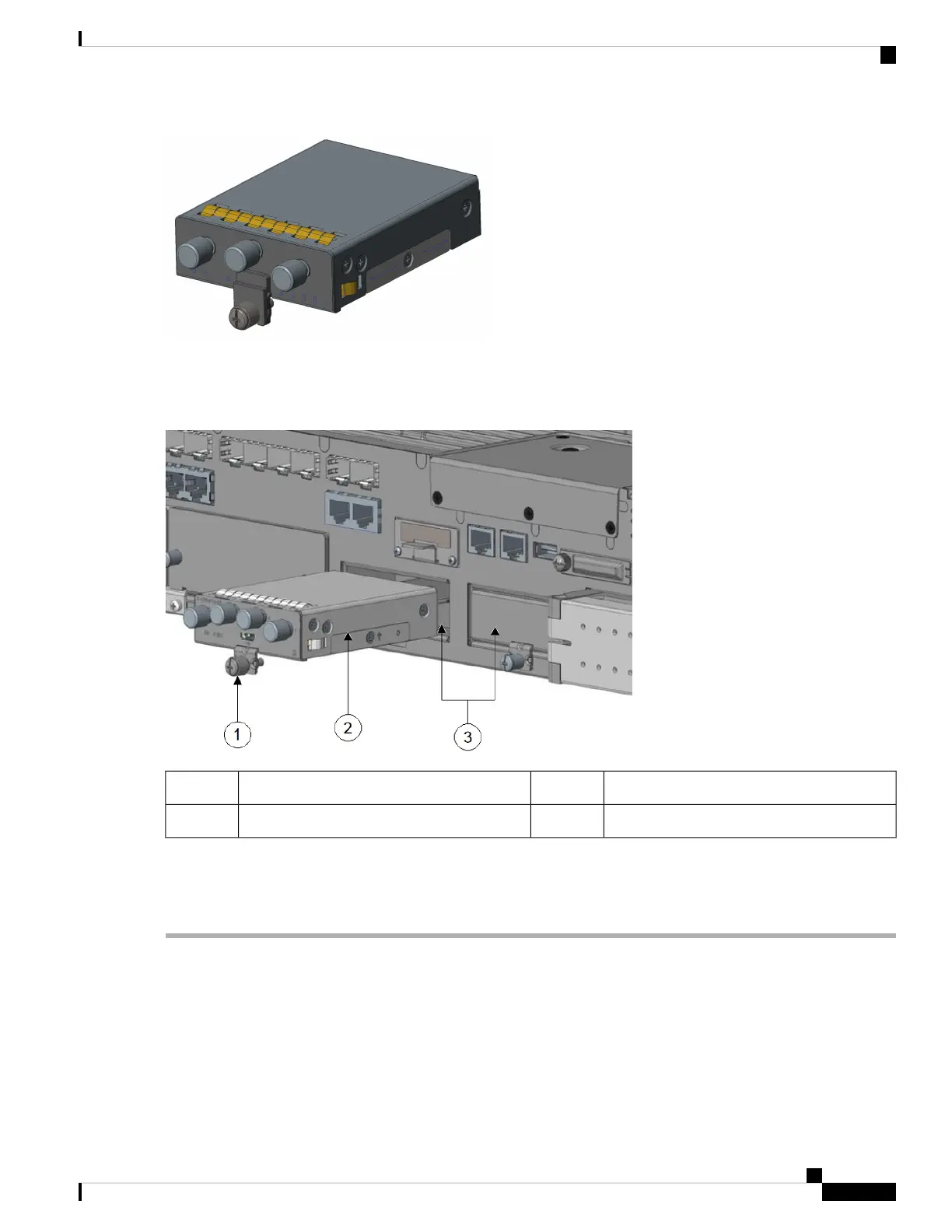

Step 8 Slide the Pluggable Module into the router. The latch lock screw aligns with the screw hole on the front of the router.
Push the Pluggable Module all the way into the device until you feel it seat, and then torque the latch lock screw 5 to
7 in-lbs.
PIM module2Module captive screw1
PIM module slots3
Step 9 Attach your antennas to the ports on the pluggable module. There are different instructions for each antenna type, be
sure to consult the antenna documentation for proper orientation and torque to install them.
Step 10 If no antennas are being installed on a port, make sure the caps are installed on the connector.
Installing the mSATA SSD
Mini-SATA, or mSATA, is a low-profile interface connector that enables more effective Serial ATA (SATA)
integration in small form-factor drives roughly the size of a business card, such as solid state disks (SSDs).
Cisco Catalyst IR8340 Rugged Series Router Hardware Installation Guide
49
Installing and Upgrading Modules
Installing the mSATA SSD
