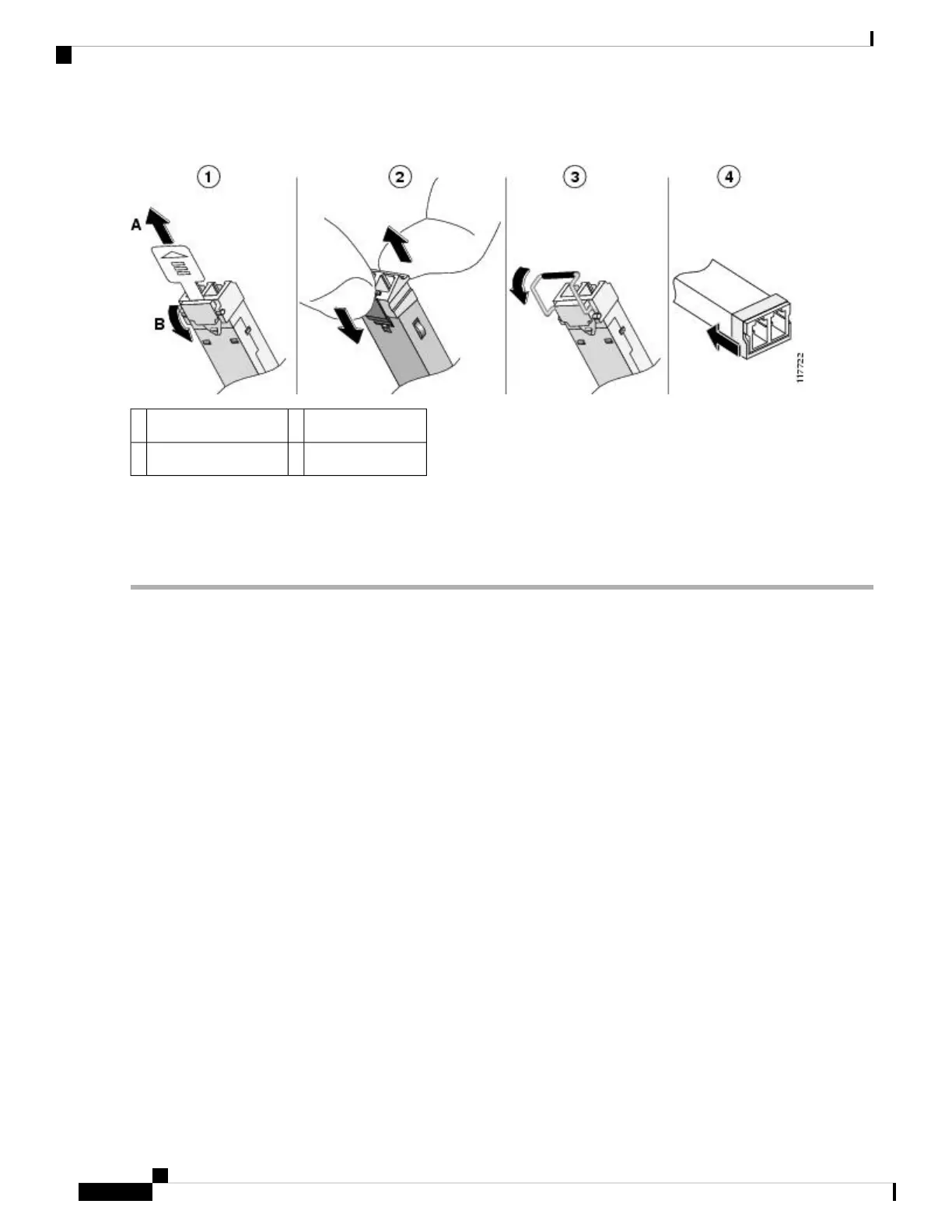

Figure 30: Disconnecting SFP Latch Mechanisms
Bale-clasp latch3Sliding latch1
Plastic collar latch4Swing and slide latch2
Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach it
with your fingers.
Tip
Step 3 Grasp the SFP on both sides and remove it from the router.
Cisco Catalyst IR8340 Rugged Series Router Hardware Installation Guide
52
Installing and Upgrading Modules
Removing SFP Modules
