Chapter 1 Using a Fabric Extender with a Cisco Nexus 5000 Series Switch
Cisco Nexus 2248TP

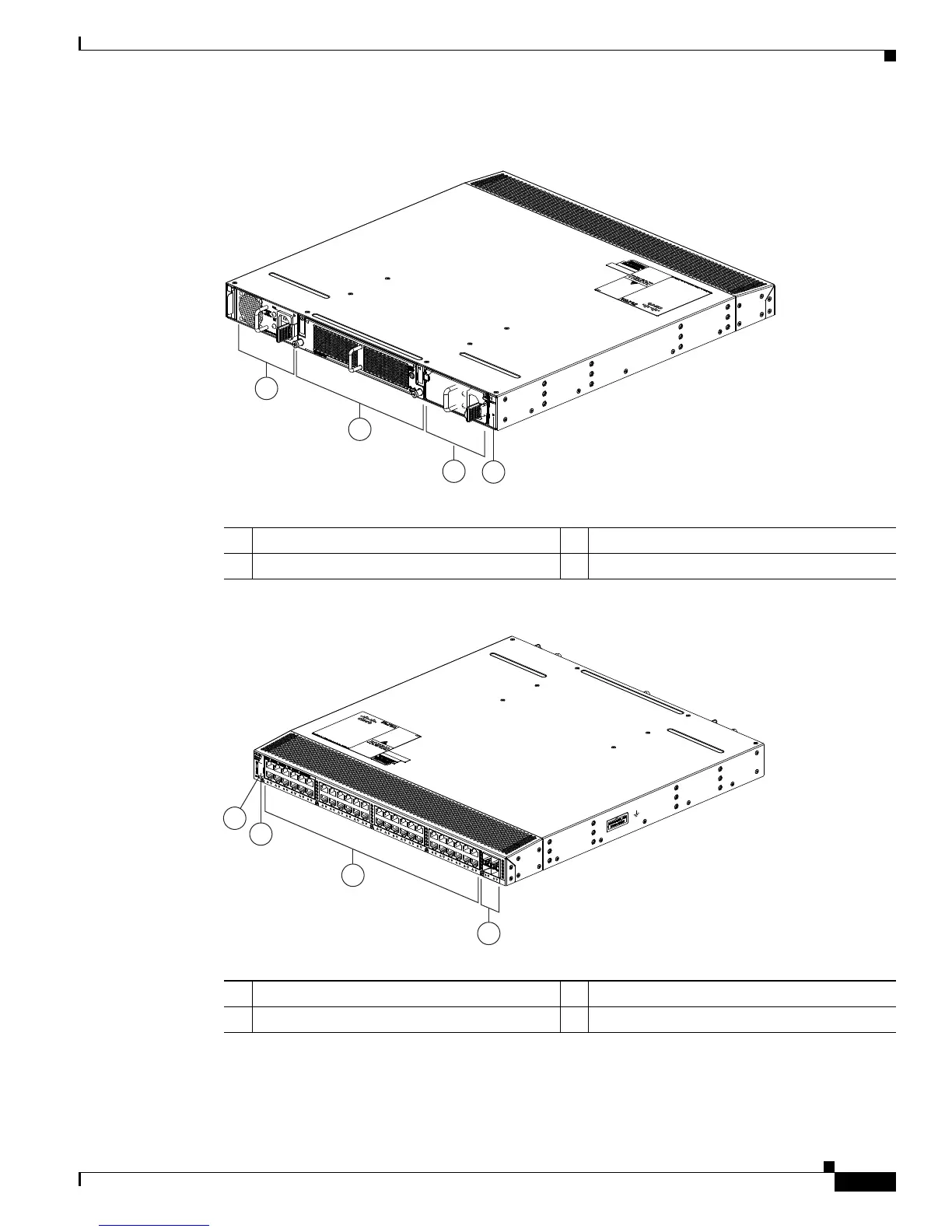

Figure 1-10 Front View of the Cisco Nexus 2248TP Chassis
Figure 1-11 Rear View of the Cisco Nexus 2248TP Chassis
2
1
3
4
239288
1 Power supply 3 Power supply (blank shown)
2 Fan tray 4 Status (top) and ID (bottom) LEDs
3
2
4
1
239287
1 Status (top) and ID (bottom) LEDs 3 100/1000 downlink ports (48)
2 HDMI port 4 SFP+ uplink ports (four)

Cisco SD2008T-NA Specifications

General

Brand	Cisco
Model	SD2008T-NA
Category	Extender
Language	English
