1-4
Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 1 Using a Fabric Extender with a Cisco Nexus 5000 Series Switch
Cisco Nexus 2248TP-E
Figure 1-3 shows an AC power supply with front-to-back airflow. Figure 1-4 shows an AC power supply
with back-to-front airflow. Figure 1-5 shows a DC power supply with front-to-back airflow. Figure 1-6
shows a DC power supply with back-to-front airflow.

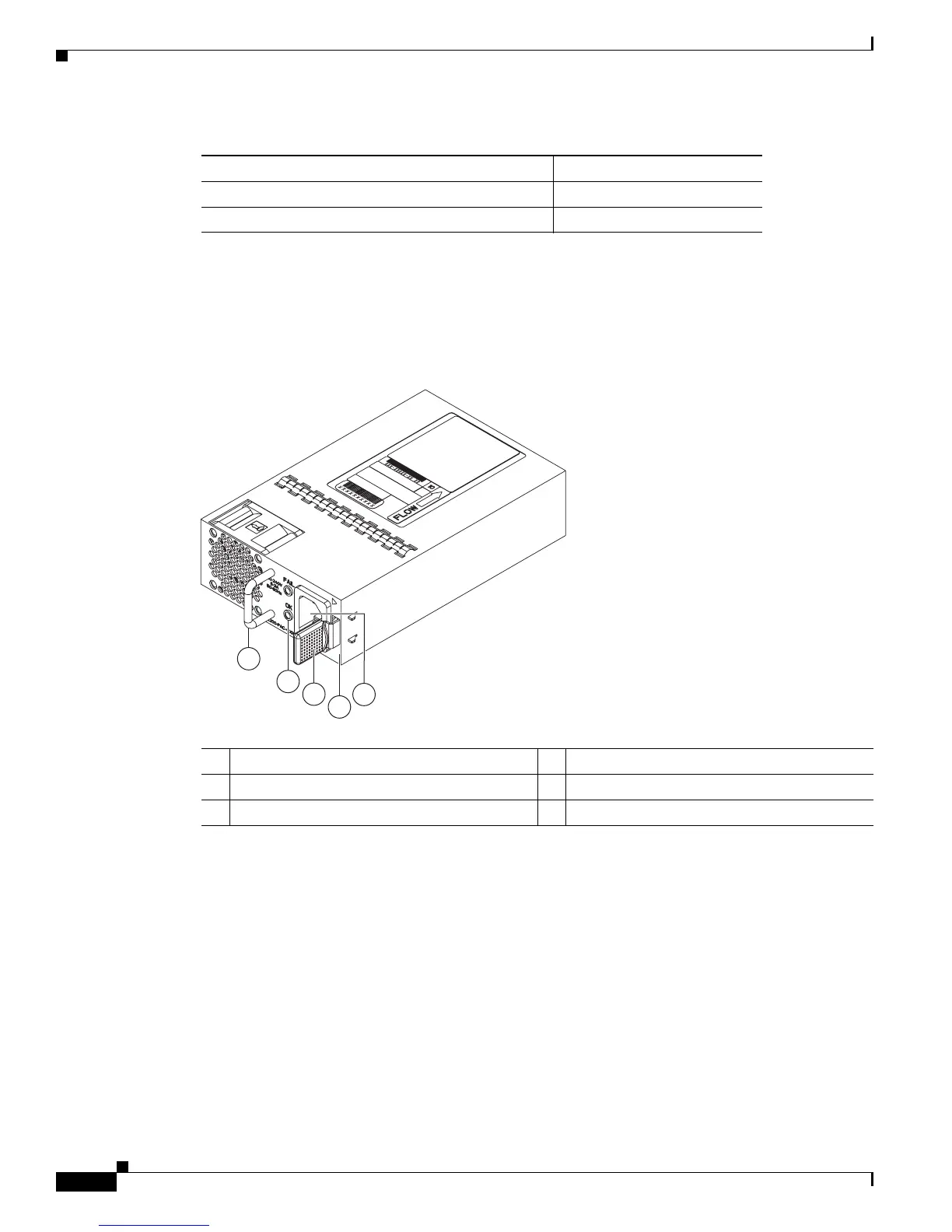

Figure 1-3 AC Power Supply with Front-to-Back Airflow for the Cisco Nexus 2200 Platform
Chassis
DC power supply with front-to-back airflow N2200-PDC-400W
DC power supply with with back-to-front airflow N2200-PDC-350W-B
Table 1-1 Power Supplies for the Cisco Nexus 2200 Platform Chassis
Power Supply Part Number
1
2
3
4
5
239843
1 Handle 4 No black stripe (front-to-back airflow)
2 FAIL (top) and OK (bottom) LEDs 5 AC power receptacle
3 Ejector latch
