Chapter 2 Using a Fabric Extender with a Cisco Nexus 7000 Series Switch
Cisco Nexus 2232PP FEX

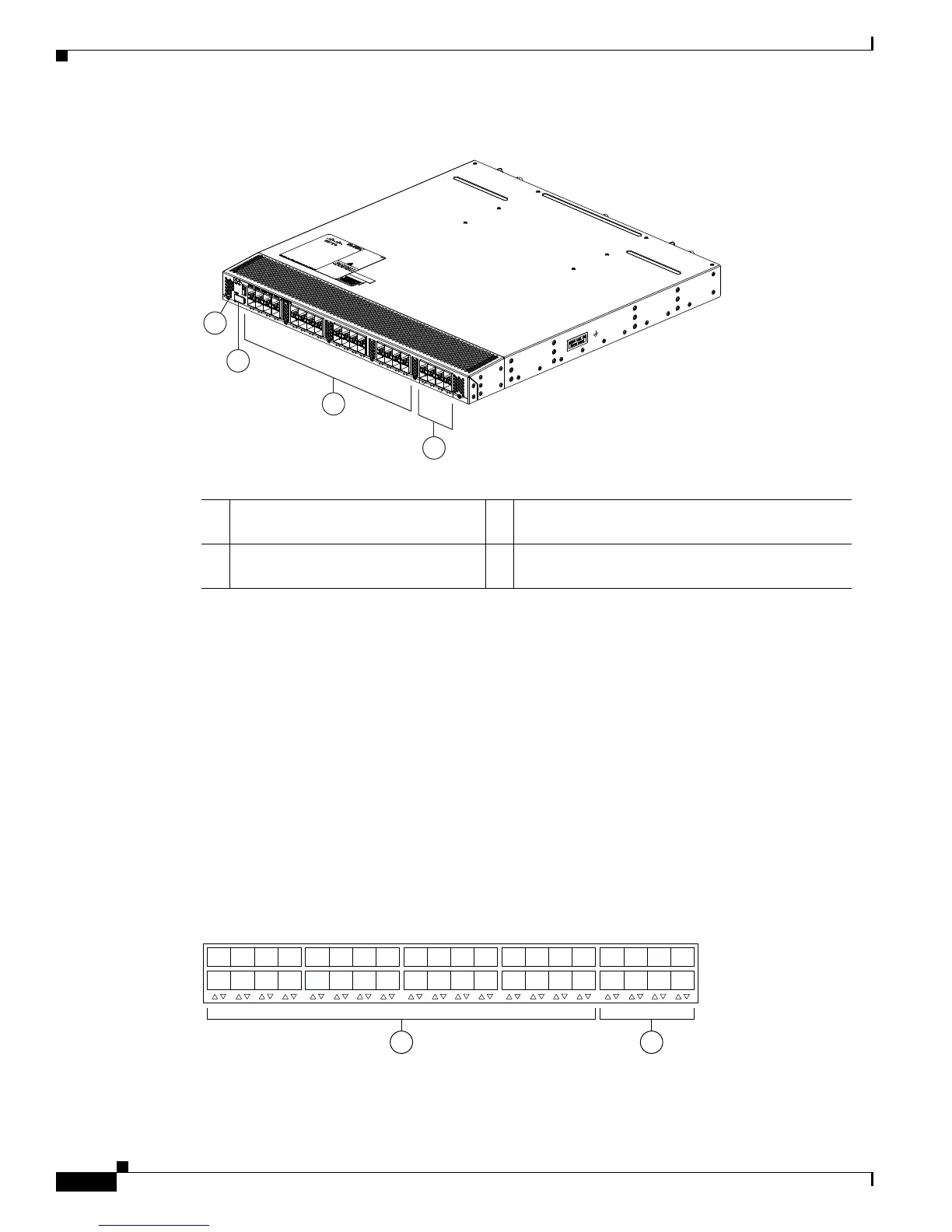

Figure 2-22 Rear View of the Cisco Nexus 2232PP Chassis
For LED descriptions, see Table D-1 on page D-2.
This section includes the following topics:
• Ports for the Cisco Nexus 2232PP FEX, page 2-22
• Power Supplies for the Cisco Nexus 2232PP FEX, page 2-23
• Fan Tray for the Cisco Nexus 2232PP FEX, page 2-23
• Transceivers Supported by the Cisco Nexus 2232PP FEX, page 2-24
Ports for the Cisco Nexus 2232PP FEX
The downlink and uplink ports are numbered from top to bottom and then from left to right as shown in
Figure 2-23.
Figure 2-23 Port Numbering on the Cisco Nexus 2232PP FEX
3
2
4
239278
1
1 Status (top) and ID (bottom) LEDs 3 1- and 10-Gigabit host-facing Ethernet (downlink)
SFP or SFP+ ports (48)
2 HDMI port 4 10-Gigabit network-facing Ethernet (uplink) SFP+
ports (4)
1
2
330042
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
911
14
13 15
12
10 16
17
18
19
20
21 23
22
24
25
26
27
28
29 31
30
32
