Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 1 Using a Fabric Extender with a Cisco Nexus 5000 Series Switch
Cisco Nexus 2232TM-10GE, Cisco NexusN2K-C2232TM-E-10GE
You can order it with front-to-back or back-to-front air cooling, and AC or DC power supplies. If you
are going to install the chassis with its front end facing the cold aisle, you must order the chassis with
front-to-back airflow. If you are going to install the chassis with its back end facing the cold aisle, you
must order the chassis with back-to-front airflow.
Figure 1-18 shows the location of the components on the front of the chassis, and Figure 1-19 shows the
location of components on the rear of the chassis. For information on what the chassis and component
LEDs indicate, see Table D-1 on page D-2.

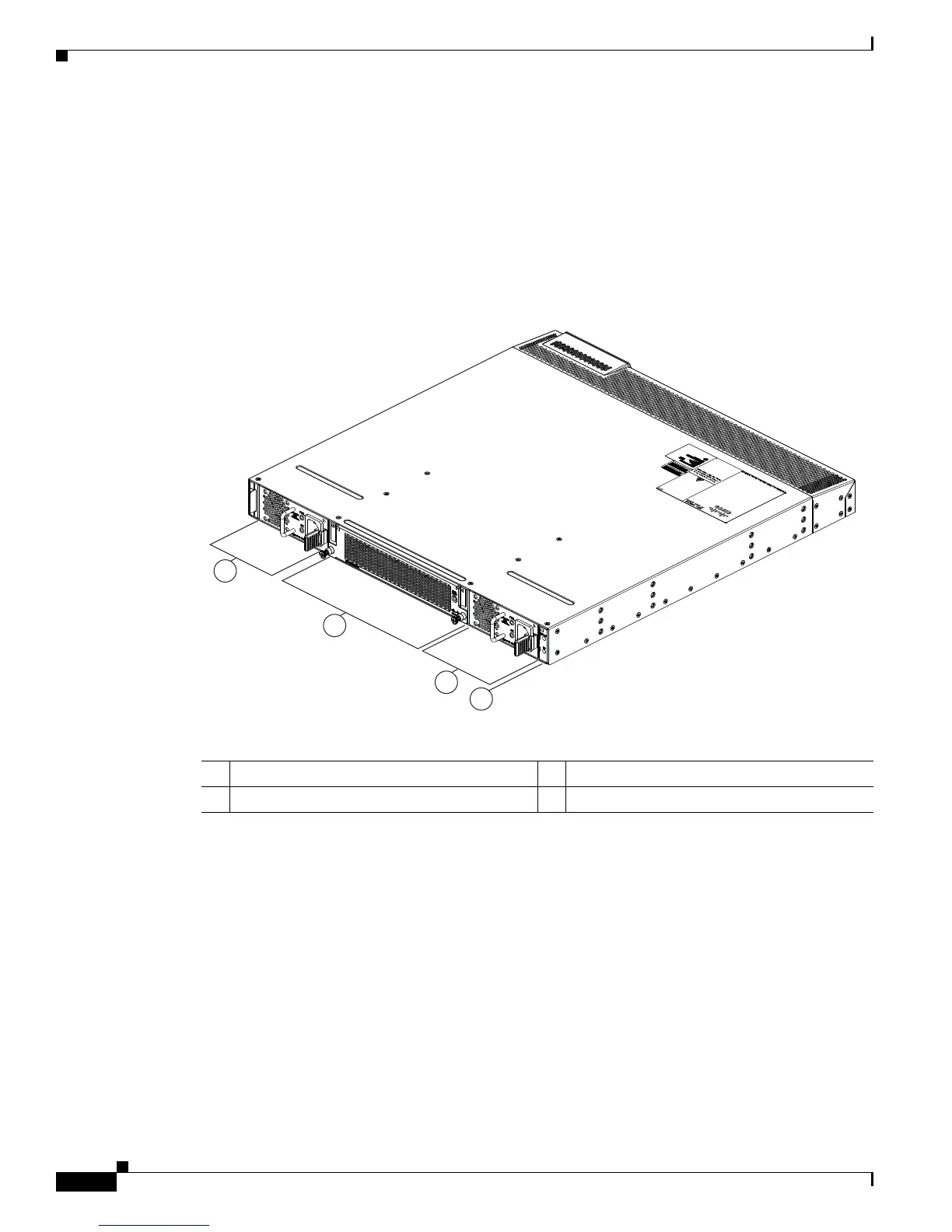

Figure 1-18 Front View of the Cisco Nexus 2232TM-10GE Chassis
1
2
3
4
330055
1 Power supply 3 Power supply
2 Fan tray 4 Status (top) and ID (bottom) LEDs
