Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 1 Using a Fabric Extender with a Cisco Nexus 5000 Series Switch
Cisco Nexus 2148T

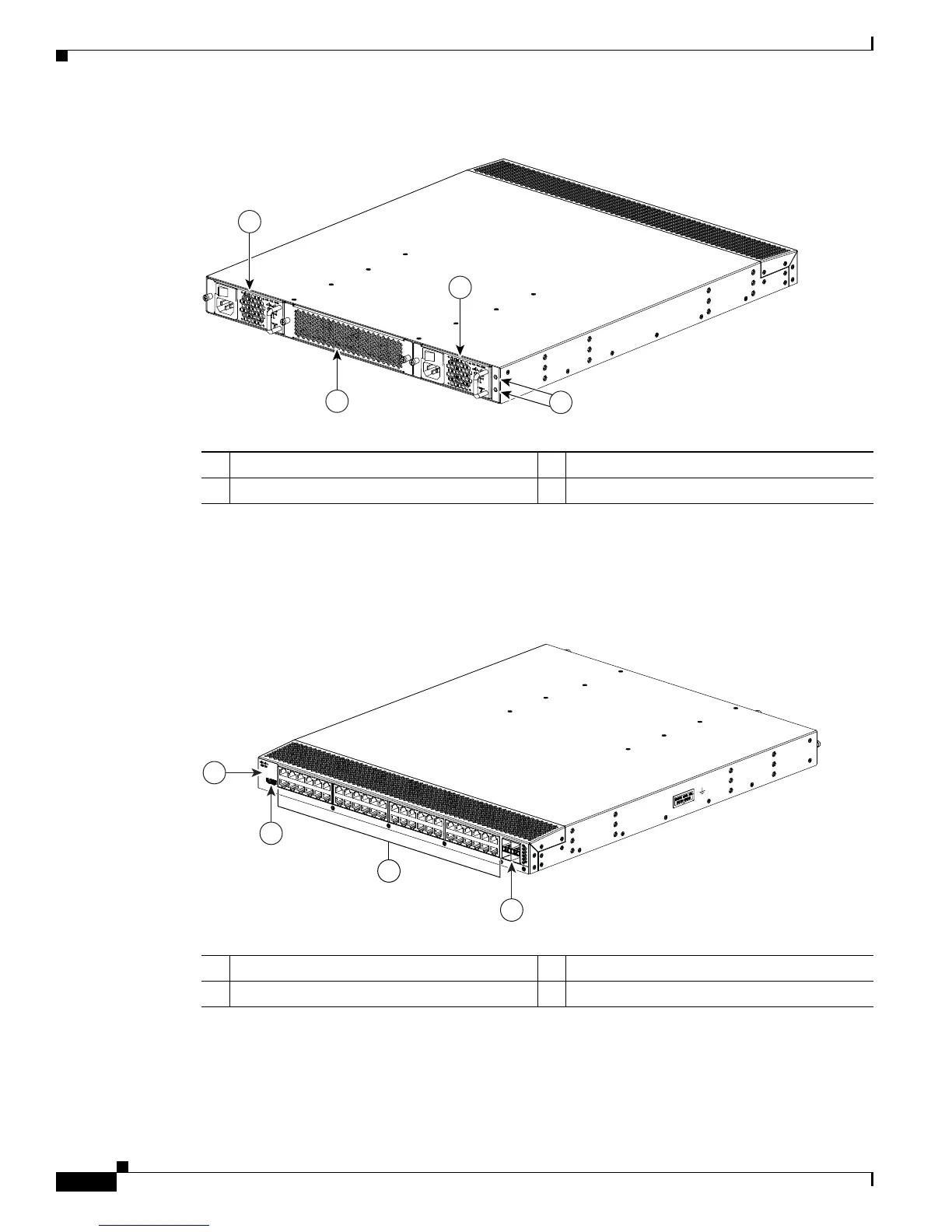

Figure 1-29 Front View of the Cisco Nexus 2148T FEX
The rear of the Cisco Nexus 2148T FEX has 48 1-Gigabit Ethernet ports, 4 10-Gigabit Ethernet ports,
and status and ID LEDs. Figure 1-30 identifies the components found on the rear of the Cisco Nexus
2148T FEX.
Figure 1-30 Rear View of the Cisco Nexus 2148T FEX
273914
1
1
2
3
1 Power supply (two) 3 Status (top) and ID (bottom) LEDs
2 Fan tray (1)
273916
3
2
1
4
1 System status (top) and Beacon (bottom) LED 3 1-Gigabit Ethernet downlink ports (48)
2 HDMI port 4 10-Gigabit Ethernet uplink ports (4)
