Send documentation comments to nexus5kdocs@cisco.com
2-10
Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 2 Using a Fabric Extender with a Cisco Nexus 7000 Series Switch
Cisco Nexus 2248TP-E FEX

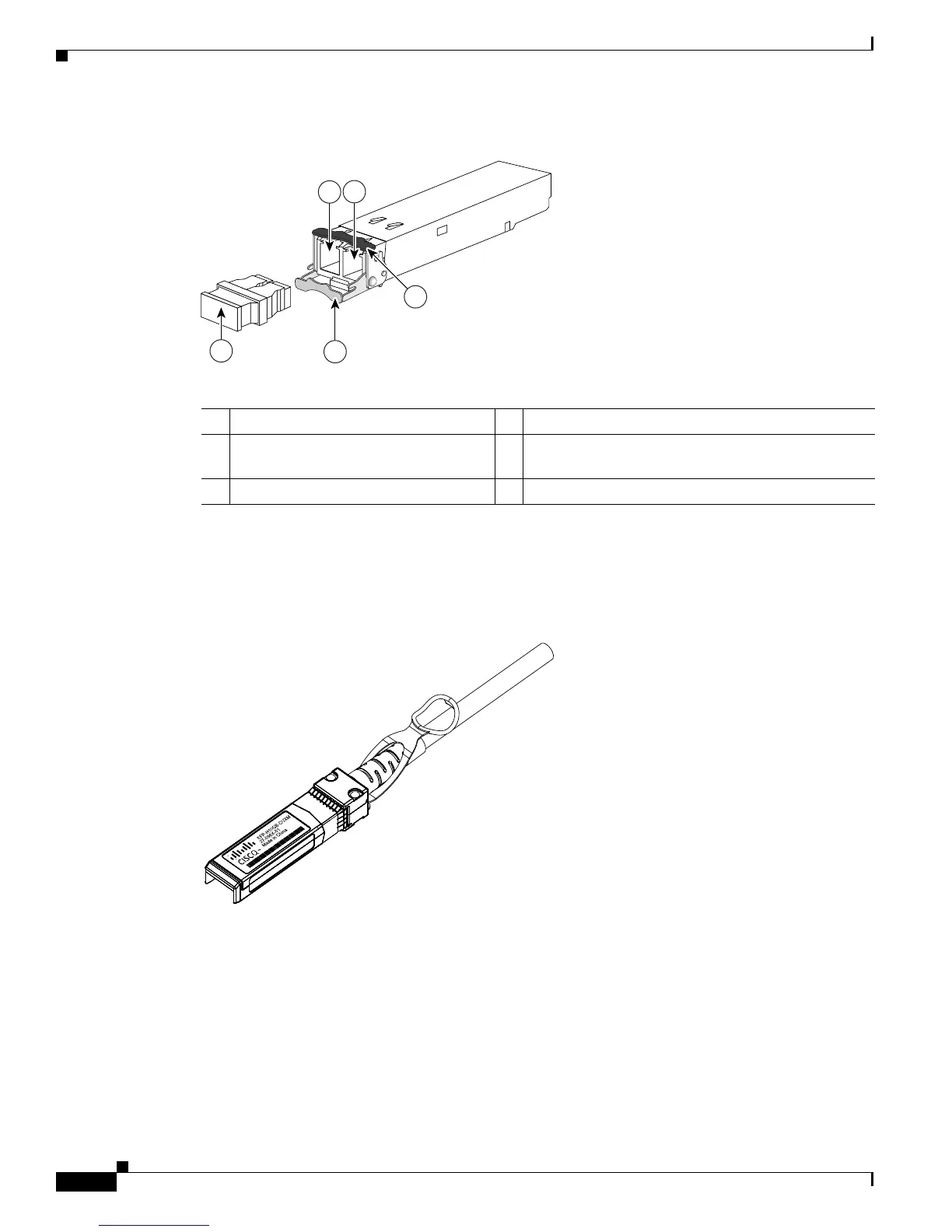

Figure 2-10 SFP+ Optical Transceivers and FETs
Figure 2-11 identifies the major features of the SFP+ copper transceiver and cable used for uplink
connections. For the cable specifications that apply to these transceivers, see the “SFP+ Copper
Transceiver Specifications” section on page B-7.
Figure 2-11 SFP+ Copper Transceiver Module
Figure 2-12 identifies the major features of RJ-45 connectors, which are used for the downlink
connections.
197285
1
2
5
4
3
1 Receive optical bore 4 Clasp shown in open position
2 Transmit optical bore 5 Dust plug (use this to protect the bores from dust
contamination when the optical cables are removed)
3 Clasp shown in closed position
187492
