Chapter 2 Using a Fabric Extender with a Cisco Nexus 7000 Series Switch
Cisco Nexus 2248TP FEX

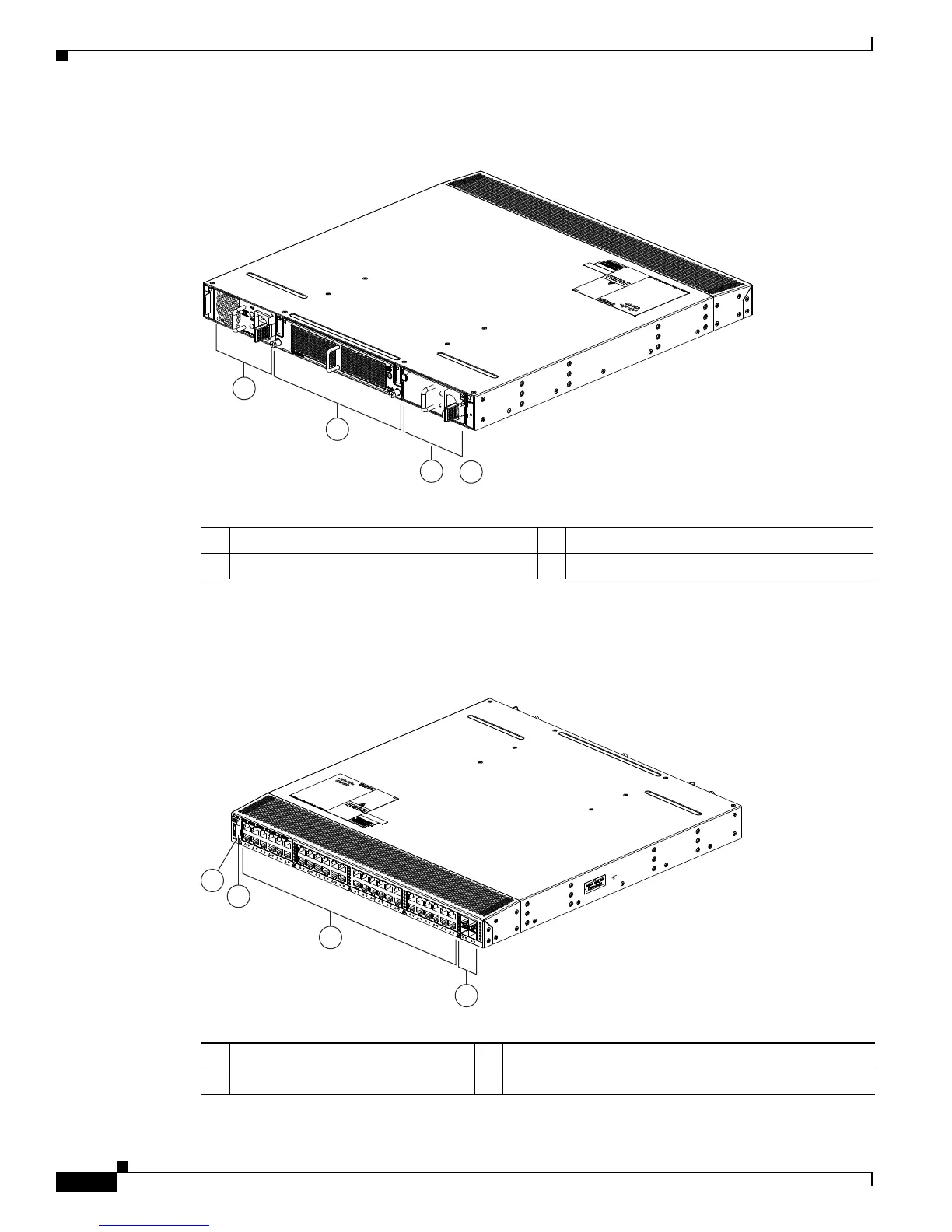

Figure 2-13 Front View of the Cisco Nexus 2248TP Chassis
The rear of the Cisco Nexus 2248TP-E FEX has 48 100/1000 Ethernet downlink ports, four 10-Gigabit
Ethernet uplink ports, an HDMI port, and LEDs, as shown in Figure 2-14.
Figure 2-14 Rear View of the Cisco Nexus 2248TP Chassis
2
1
3
4
239288
1 Power supply 3 Power supply (blank shown)
2 Fan tray 4 Status (top) and ID (bottom) LEDs
1 Status (top) and ID (bottom) LEDs 3 100/1000 Ethernet host-facing (downlink) ports (48)
2 HDMI port 4 10-Gigabit Ethernet network-facing (uplink) ports (4)
