Chapter 2 Using a Fabric Extender with a Cisco Nexus 7000 Series Switch
Cisco Nexus 2232TM FEX

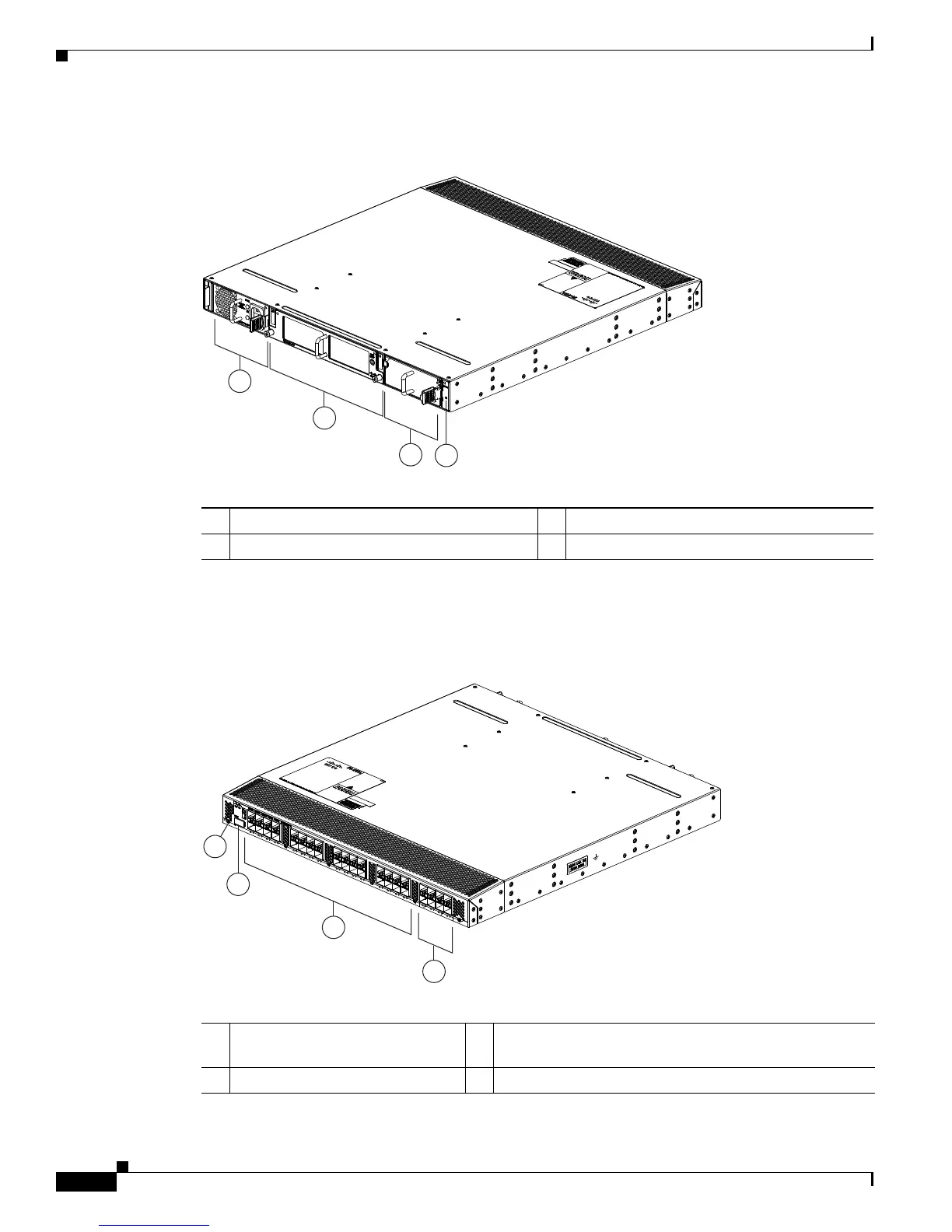

Figure 2-16 Front View of the Cisco Nexus 2232TM Chassis
The rear of the Cisco Nexus 2232TM FEX has 32 1- and 10-Gigabit Ethernet downlink ports, eight
10-Gigabit Ethernet uplink ports, an HDMI port, and two LEDs, as shown in Figure 2-22.
Figure 2-17 Rear View of the Cisco Nexus 2232TM Chassis
2
1
3
4
239279
1 Power supply 3 Power supply (blank shown)
2 Fan tray 4 Status (top) and ID (bottom) LEDs
3
2
4
239278
1
1 Status (top) and ID (bottom) LEDs 3 1- and 10-Gigabit host-facing Ethernet (downlink) ports
(48)
2 HDMI port 4 10-Gigabit network-facing Ethernet (uplink) ports (8)
