3-6
Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 3 Installing a Cisco Nexus 2000 Series Fabric Extender
Installing the Cisco Nexus 2000 Series Fabric Extender Chassis in a Cabinet or Rack
To install the device in a cabinet or rack using the rack-mount kit provided with the device, follow these
steps:
Step 1 Install the front rack-mount brackets as follows:
a. Position a front rack-mount bracket against the chassis and align the screw holes as shown in
Figure 3-1. Attach the front rack-mount bracket to the chassis with six of the M4 screws.
b. Repeat with the other front rack-mount bracket on the other side of the device.

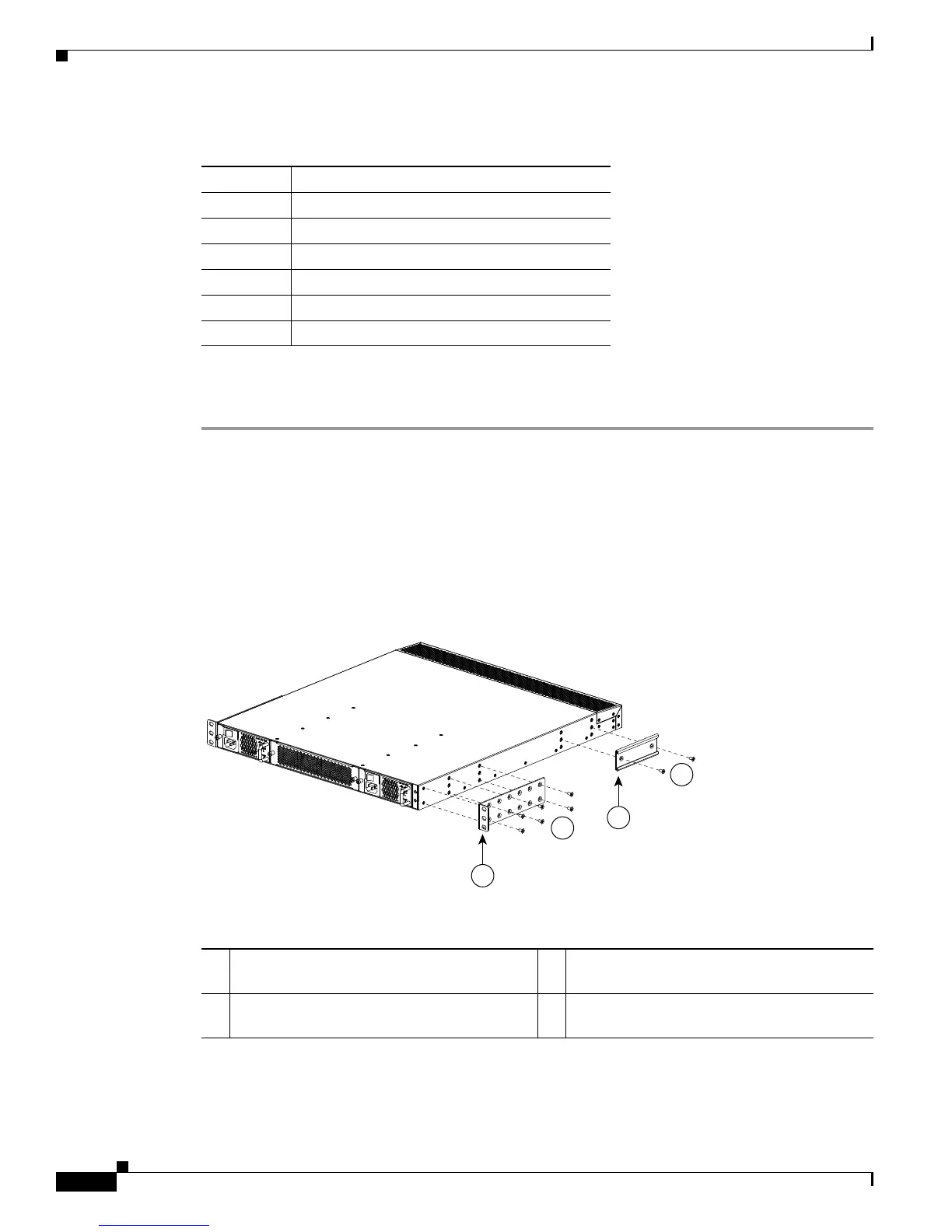

Figure 3-1 Attaching the Front Rack-Mount Bracket and Rack-Mount Guide to a Cisco Nexus
2000 Series FEX
Table 3-1 Cisco Nexus 2000 Series FEX Rack-Mount Kit
Quantity Part Description
2 Rack-mount brackets
12 M4x0.7 x 8-mm Phillips countersunk screws
2 Rack-mount guides
10 10-32 rack nuts
10 10-32 x 3/4-inch Phillips pan head screws
2 Slider rails
273921
1
3
2
4
1 Front rack-mount bracket aligned to six holes
in chassis
3 Rack-mount guide
2 Six M4 screws used to fasten the front
rack-mount bracket to the chassis
4 Two M4 screws used to fasten the rack-mount
guide to the chassis
