Send document comments to nexus5kdocs@cisco.com
3-8
Cisco Nexus 2000 Series Hardware Installation Guide
OL-19013-05
Chapter 3 Installing a Cisco Nexus 2000 Series Fabric Extender
Installing the Cisco Nexus 2000 Series Fabric Extender Chassis in a Cabinet or Rack

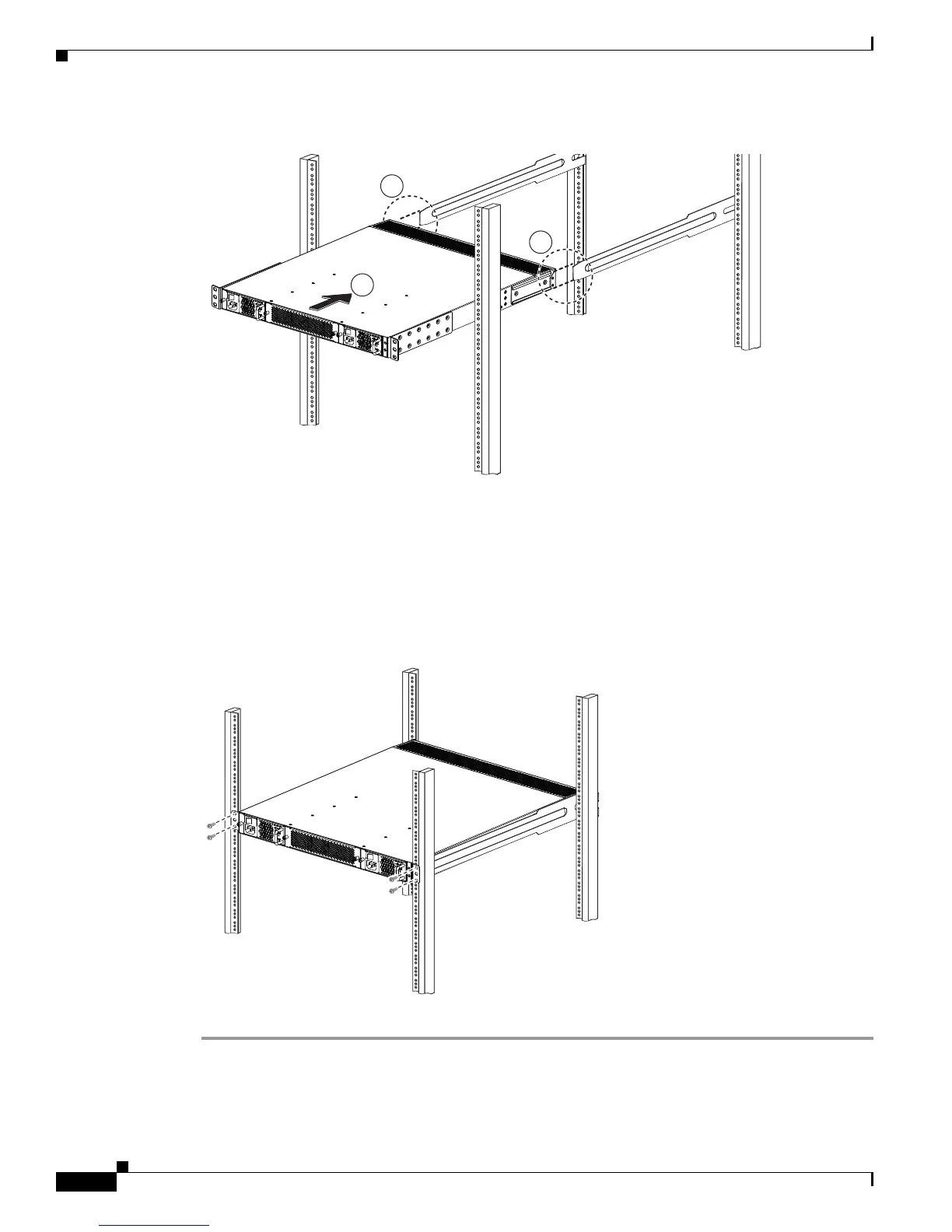

Figure 3-3 Sliding the Chassis Into the Rack
Step 5 Stabilize the device in the rack by attaching the front rack-mount brackets to the front rack-mounting
rails as follows:
a. Insert two screws (12-24 or 10-32, depending on the rack type) through the cage nuts and the holes
in one of the front rack-mount brackets and into the threaded holes in the rack-mounting rail. See
Figure 3-4.
b. Repeat for the front rack-mount bracket on the other side of the device.
Figure 3-4 Attaching the Device to the Rack
