Industry-standard double-data-rate 3 (DDR3) memory
•
Remote management through an integrated service processor that also executes policy established in
Cisco UCS Manager software
•
Local keyboard, video, and mouse (KVM) and serial console access through a front console port on
each server
•
Out-of-band access by remote KVM, Secure Shell (SSH), and virtual media (vMedia) as well as Intelligent
Platform Management Interface (IPMI)
The Cisco UCS B-Series offers multiple blade server models. The supported processor family is indicated by
M1, M2, M3, or M4 designations on the model.
Cisco UCS B200 Blade Servers
For full service and installation instructions, see the Cisco UCS B200 Blade Server Installation and Service
Note. You can install up to eight UCS B200 M1 or M2 Blade Servers to a chassis.

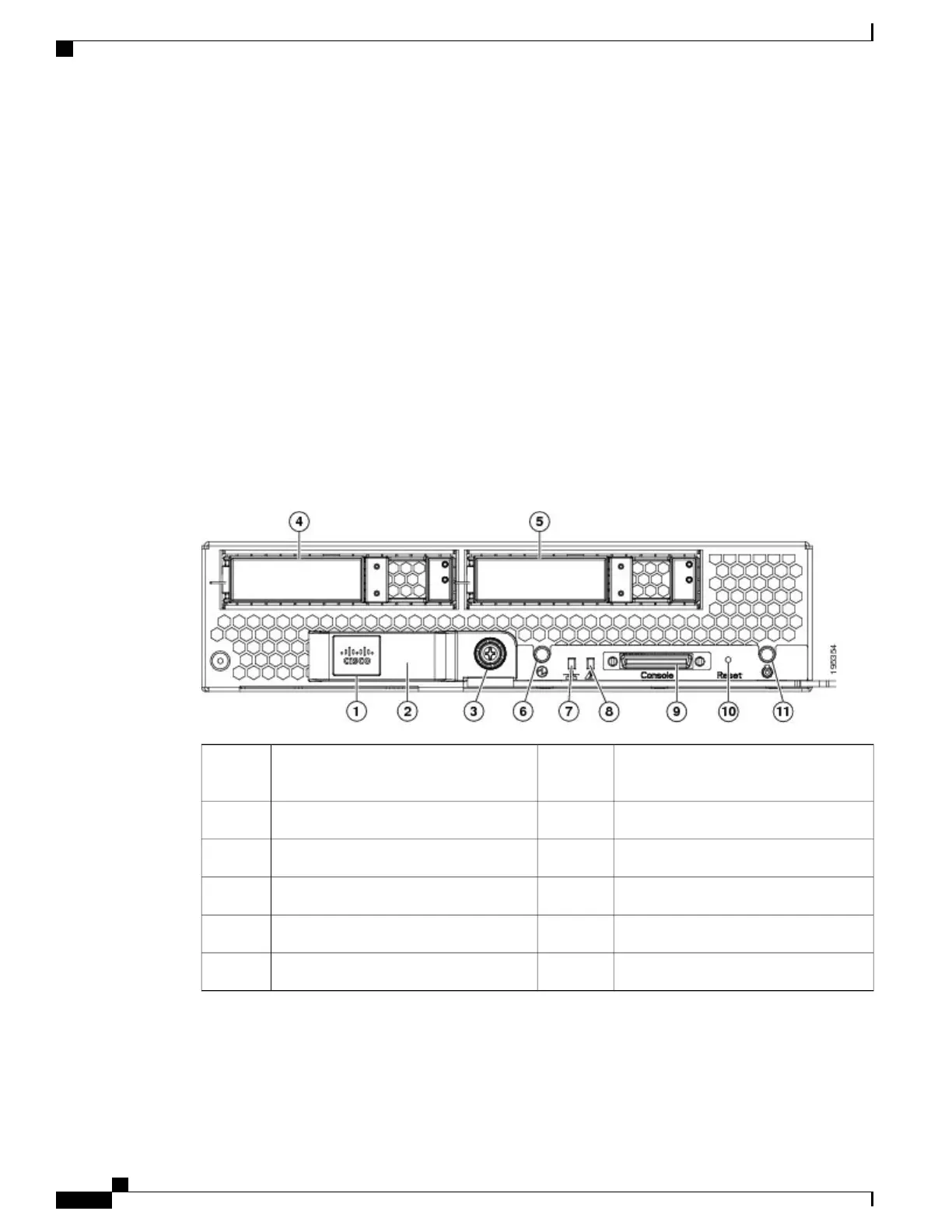

Figure 1: Cisco UCS B200 M1 and M2
Network link status LED7Paper tab for server name or serial
numbers
1
Blade health LED8Blade ejector handle2
Console connector9Ejector captive screw3
Reset button access10Hard drive bay 14
Beaconing LED and button11Hard drive bay 25
Power button and LED6
