ports on the fabric interconnect, the expansion modules are never used for direct chassis connections,
they are used for uplink or SAN connections.

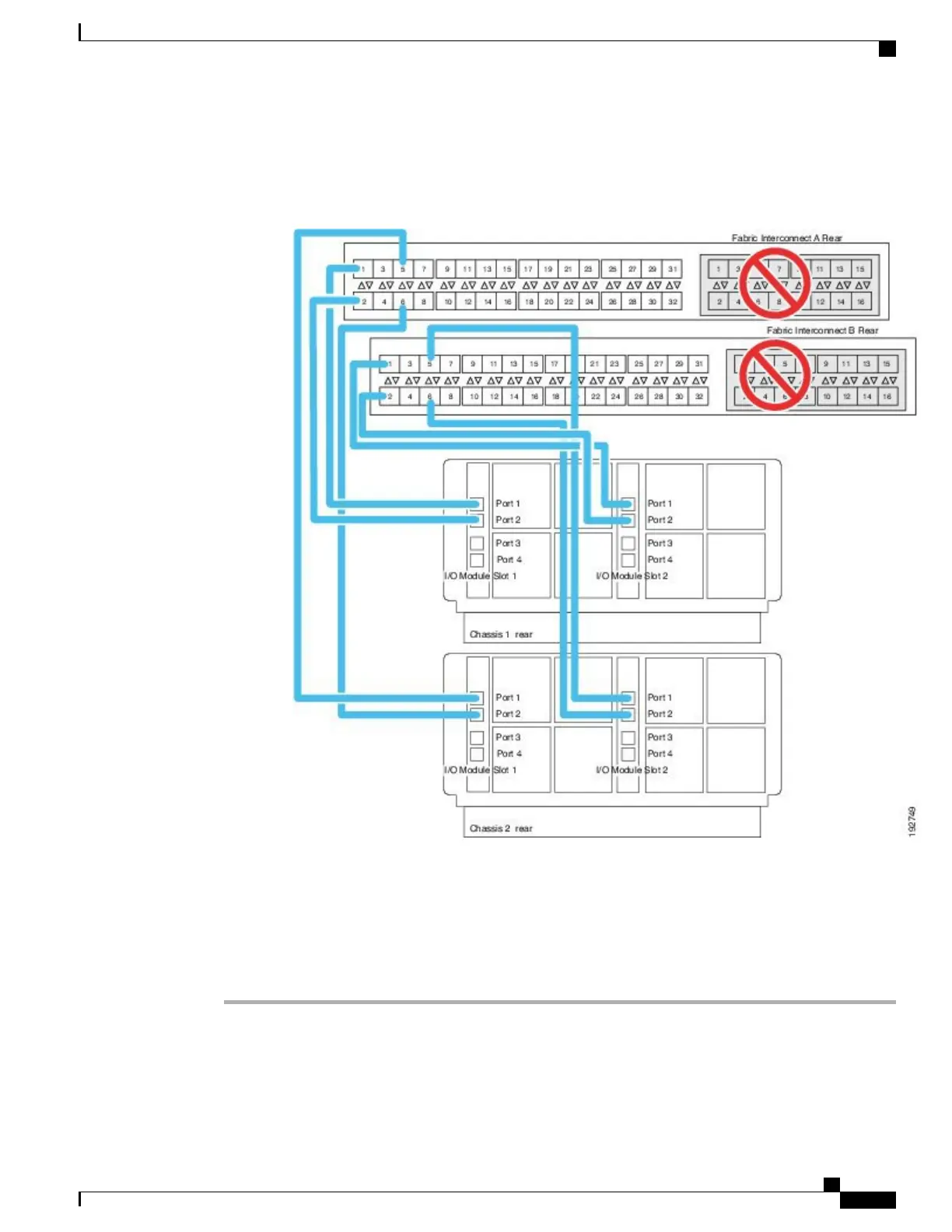

Figure 38: Proper Connection for the Server Chassis and two Cisco UCS 6120XP Fabric Interconnects
Removing the Chassis from a Rack
Procedure
Step 1
Use Cisco UCS Manager to do the following:
a) Shut down the OS on all blade servers in the chassis.
b) Disable the Smart Call Home feature.
c) Decommission the chassis.
Cisco UCS 5108 Server Chassis Installation Guide
61
Installation
Removing the Chassis from a Rack
